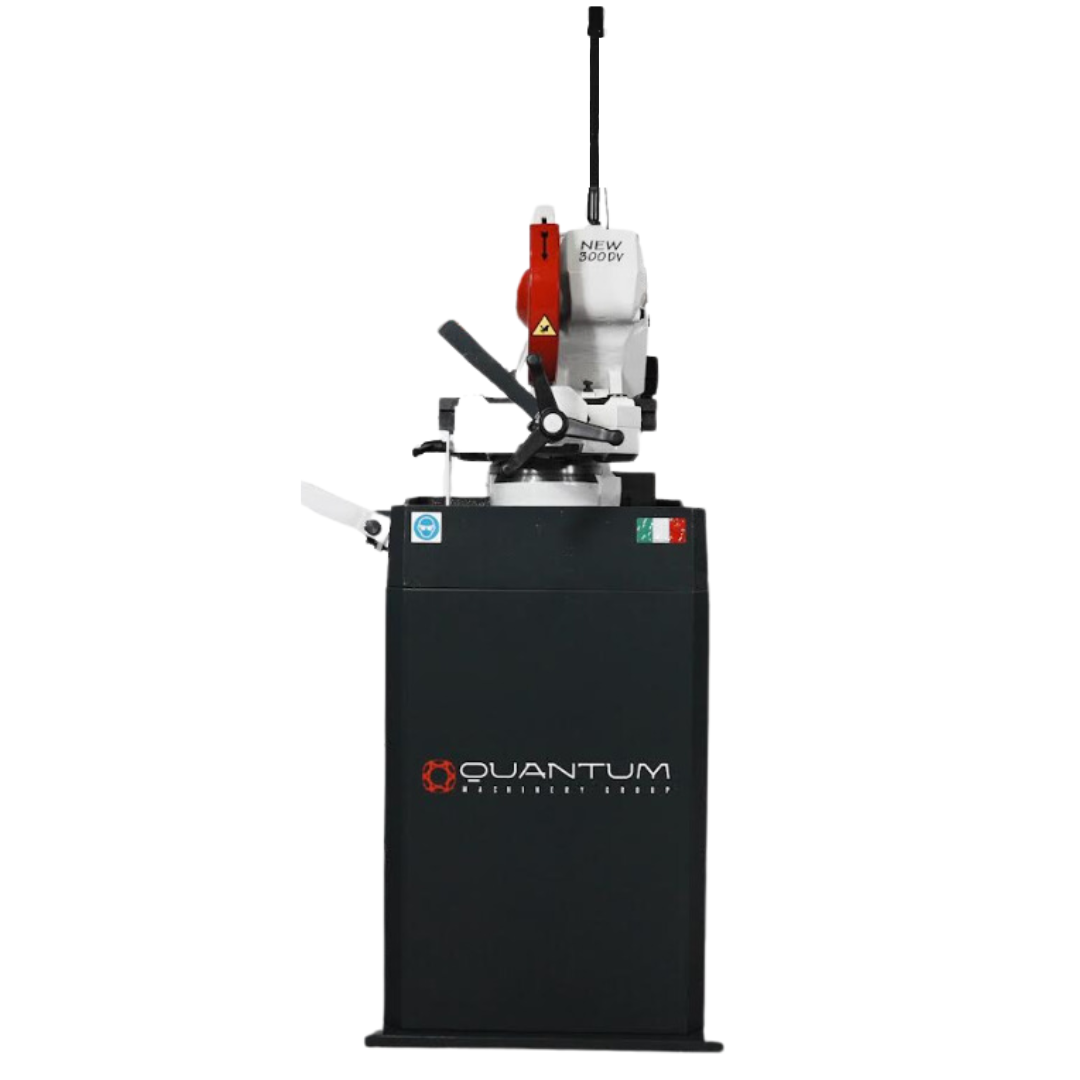

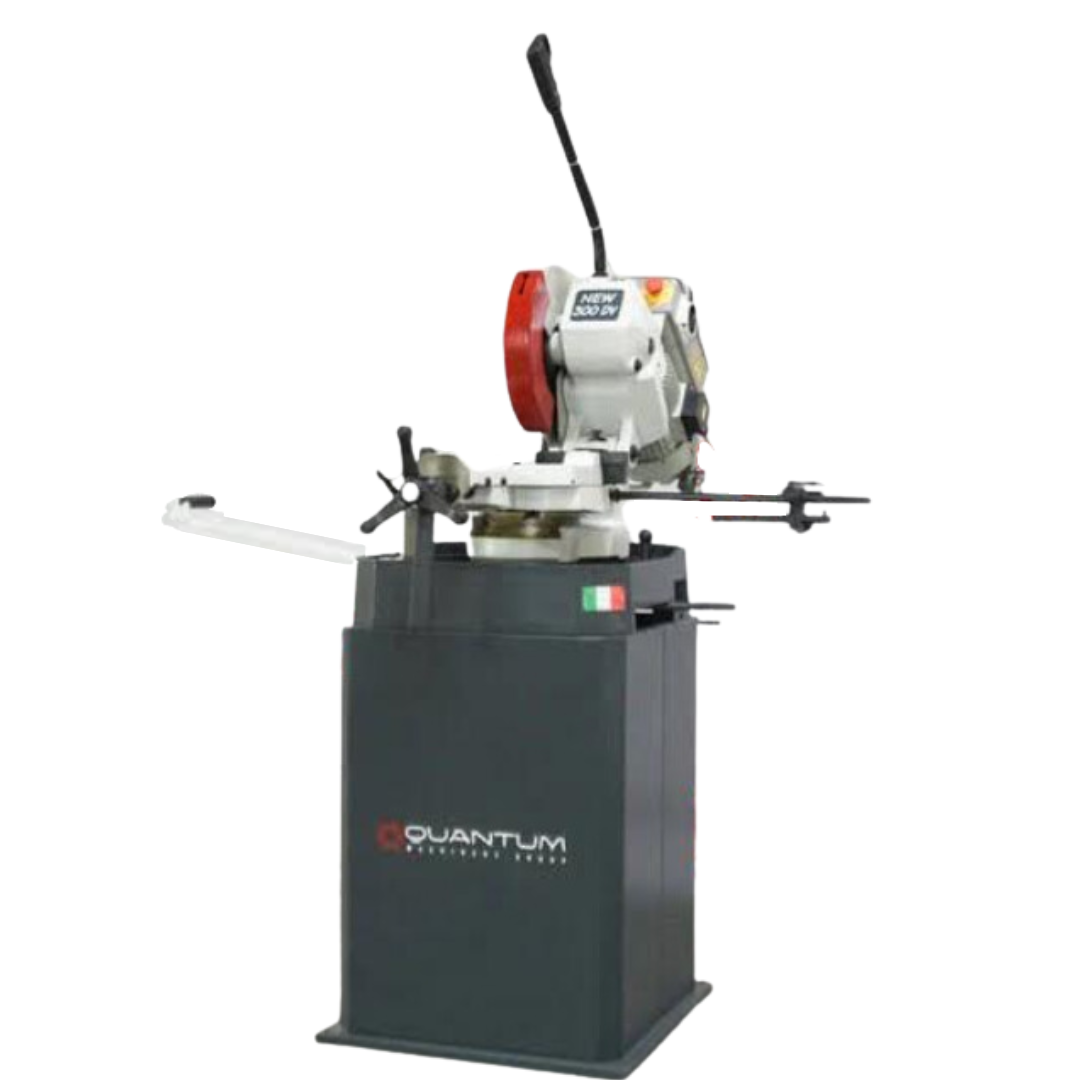

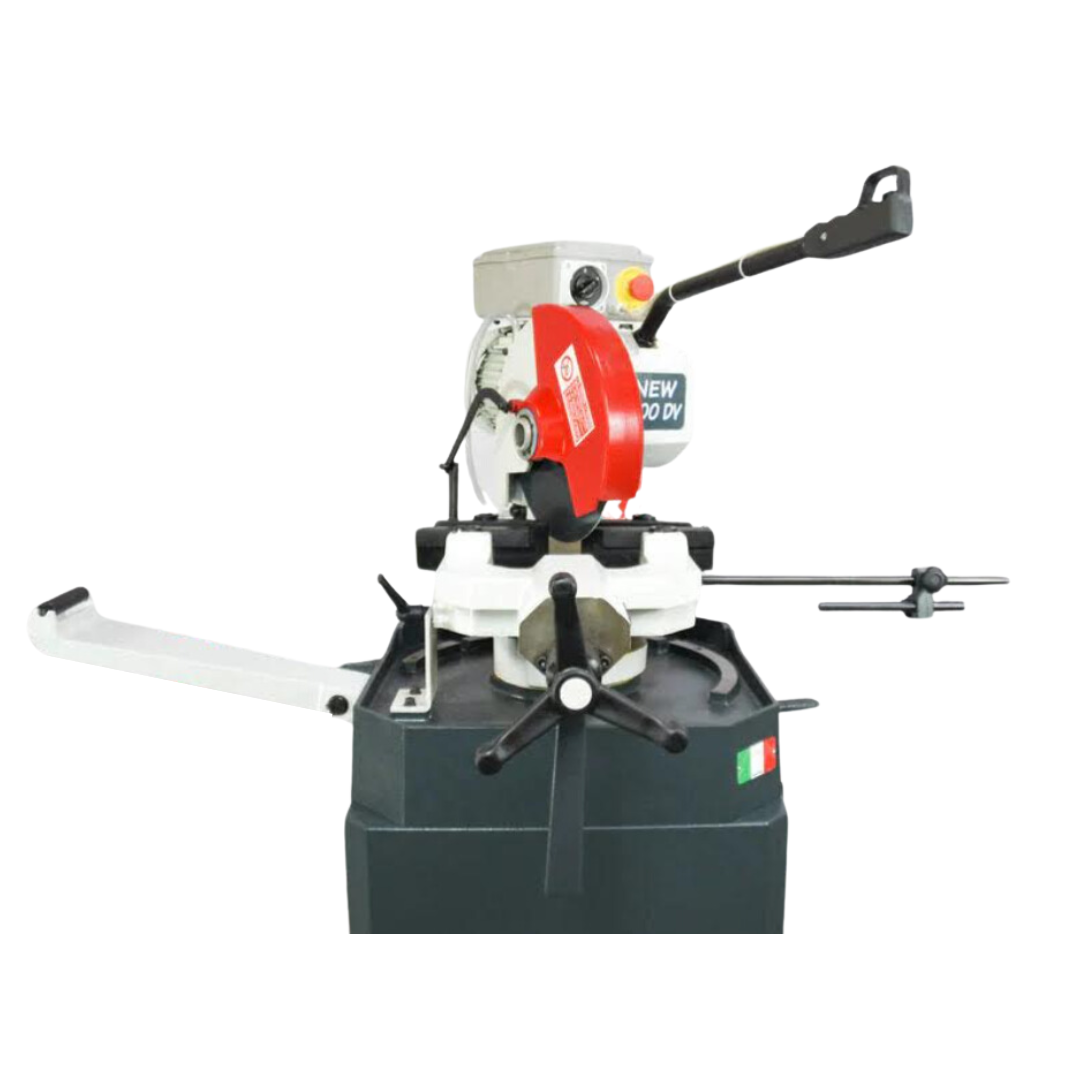

Quantum Machinery 12” 220V Three Phase Manual Pivot-Style Cold Saw 300 EDV

Quantum Machinery 12” 220V Three Phase Manual Pivot-Style Cold Saw 300 EDV is a Quantum Machinery Group product in the Cold Saws collection.

Product Details

• Blade Size (Bore HSS): 300mm x 2.5mm x 32mm
• Max Vice Opening: 4.7”
• 2 Speeds: 40 – 80 rpm
• Power-driven Pump: 0.09 KW
• Maximum Cutting Capacities
• Round Tube Straight Cut: 45° Left/Right Cut:
• Straight Cut:
• 45° Left/Right Cut:
• Square Tube Straight Cut: 3.1” 45° Left/Right Cut: 2.75”
• Straight Cut: 3.1”
• 45° Left/Right Cut: 2.75”
• Solid Round Straight Cut: 2.1” 45° Left/Right Cut: 2.9”
• Straight Cut: 2.1”
• 45° Left/Right Cut: 2.9”
• Rectangular Tube Straight Cut: 2.75”H x 4.5”W 45° Left/Right Cut: 2.75”H x 2.75”W
• Straight Cut: 2.75”H x 4.5”W
• 45° Left/Right Cut: 2.75”H x 2.75”W
• Features
• Moveable cutting head: from 45° left up to 45° right
• Double-hinged pin with eccentric bush
• Reduction unit in oil bath
• Double-quick locking vice
• Coolant filter
• Jet separation system to keep the blade oiled
• Sliding counter-vice for longitudinal cutting
• 24V low voltage installation withhold-to-run head control knob
• 0.09 kW power-driven pump for band cooling
• Includes: instruction manual, service tools, & 1 HSS 300mm Cold Saw Blade
• Specifications
• Electrical Requirements: 220V / Three Phase / 60Hz
• Overall Dims: 40” x 58” x 46”
• Machine Weight: 364 lbs

Specifications

• Manufacturer: Quantum Machinery Group
• SKU: 300 EDV
• Shipping Method: LTL Freight
• Weight: 425 lb
• Dimensions: 48 × 64 × 52 in
