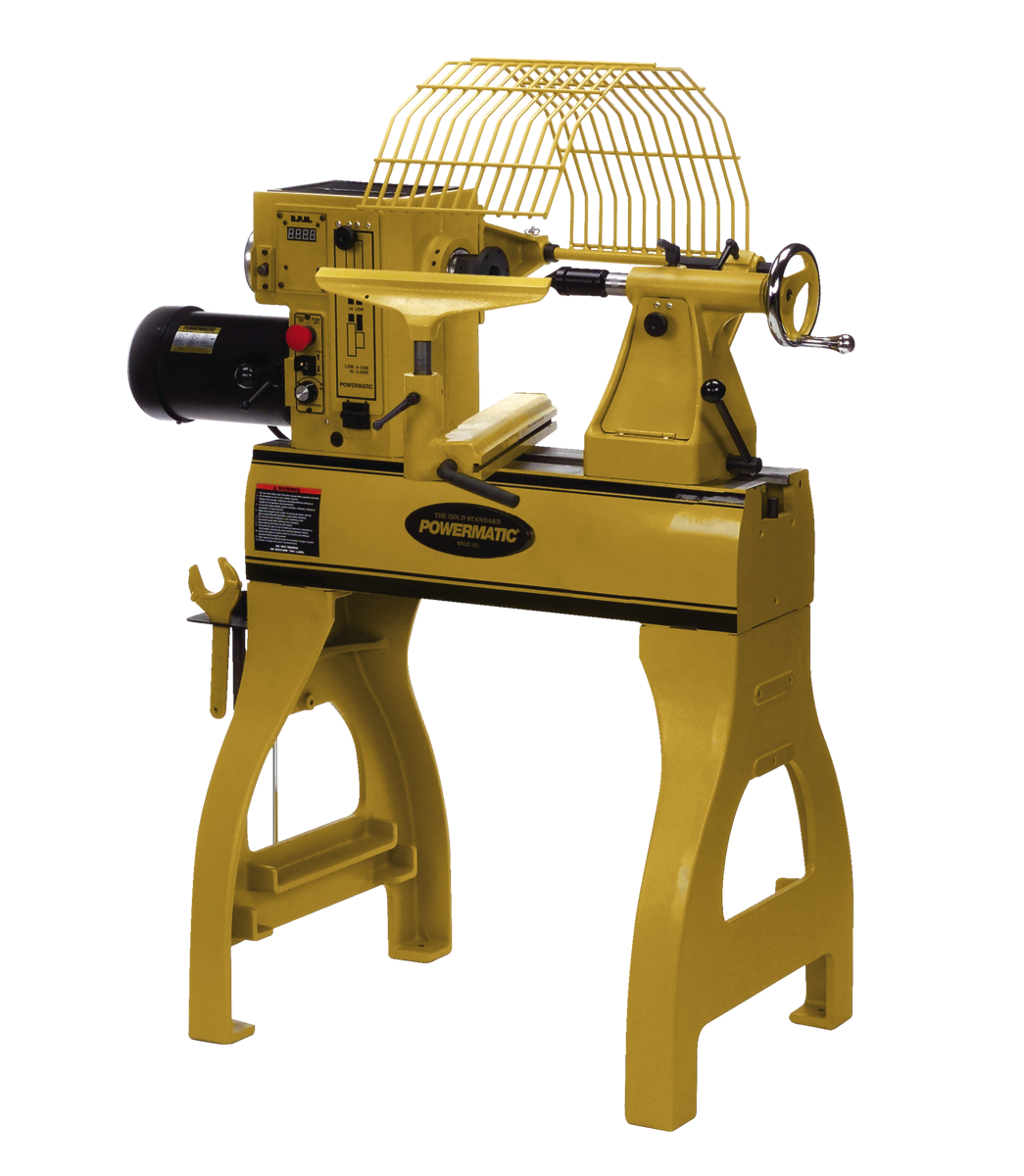

Powermatic 2020B Lathe, 2HP Single Phase 220V 1792020

Powermatic 2020B Lathe, 2HP Single Phase 220V 1792020 is a Powermatic product in the Lathes collection.

Product Details

• Brass-tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers
• Digital RPM readout for accurate speed adjustments
• Redesigned tool rest geometry allows for better chisel movement along the tool rest
• Set of dead centers which hold a spindle for visual comparison
• Sliding headstock with electronic variable speed
• The features you love on the 3520B Lathe are now available in a smaller footprint. The PM2020 Lathe is perfect for turners short on space, or projects where a short bed is convenient. Like its big brother, the PM2020 features a sliding headstock, electronic variable speed with low and high speed ranges, and the spindle lock. The enhanced features include a digital RPM readout, built in spindle indexing on the head stock, and a re-designed tailstock with internal storage, chrome trimmed handwheels, and a laser etched quill which is self-ejecting. Additional features include a two position mount for the optional bed extension, a sliding hammer knockout rod with brass tip, an attached tool caddy and a metal shelf for tool storage.
• Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes and other equally spaced features
• Tailstock has internal storage for additional accessories
• Tailstock has internal storage for additional accessories and attached tool caddy allows convenient access to centers and wrenches
• Two position mount for optional bed extension
• Specification: Value
• Swing Over Bed (In.): 20
• Distance Between Centers (In.): 20
• Weight (Lbs.): 559
• Motor Power (HP): 2
• Bed Construction: Cast Iron
• Motor (HP): 2
• Motor Phase: 1
• Motor Voltage (V.): 220
• Motor Amps: 6.2
• Recommended Circuit Size (Amps.): 20
• Shipping Dimensions (L x W x H) (In.): 55-1/8 x 27-1/4 x 30-5/8
• Net Weight (Lbs.): 559
• Gross Weight (Lbs): 609
• Height: 31.0000
• Length: 40.0000
• Width: 27.0000
• Weight: 582.0000

Specifications

• Manufacturer: Powermatic
• SKU: PM9-1792020
• UPC: 731325352597
• Shipping Method: LTL Freight
• Weight: 582 lb
• Dimensions: 40 × 27 × 31 in
• Country of Origin: Taiwan
