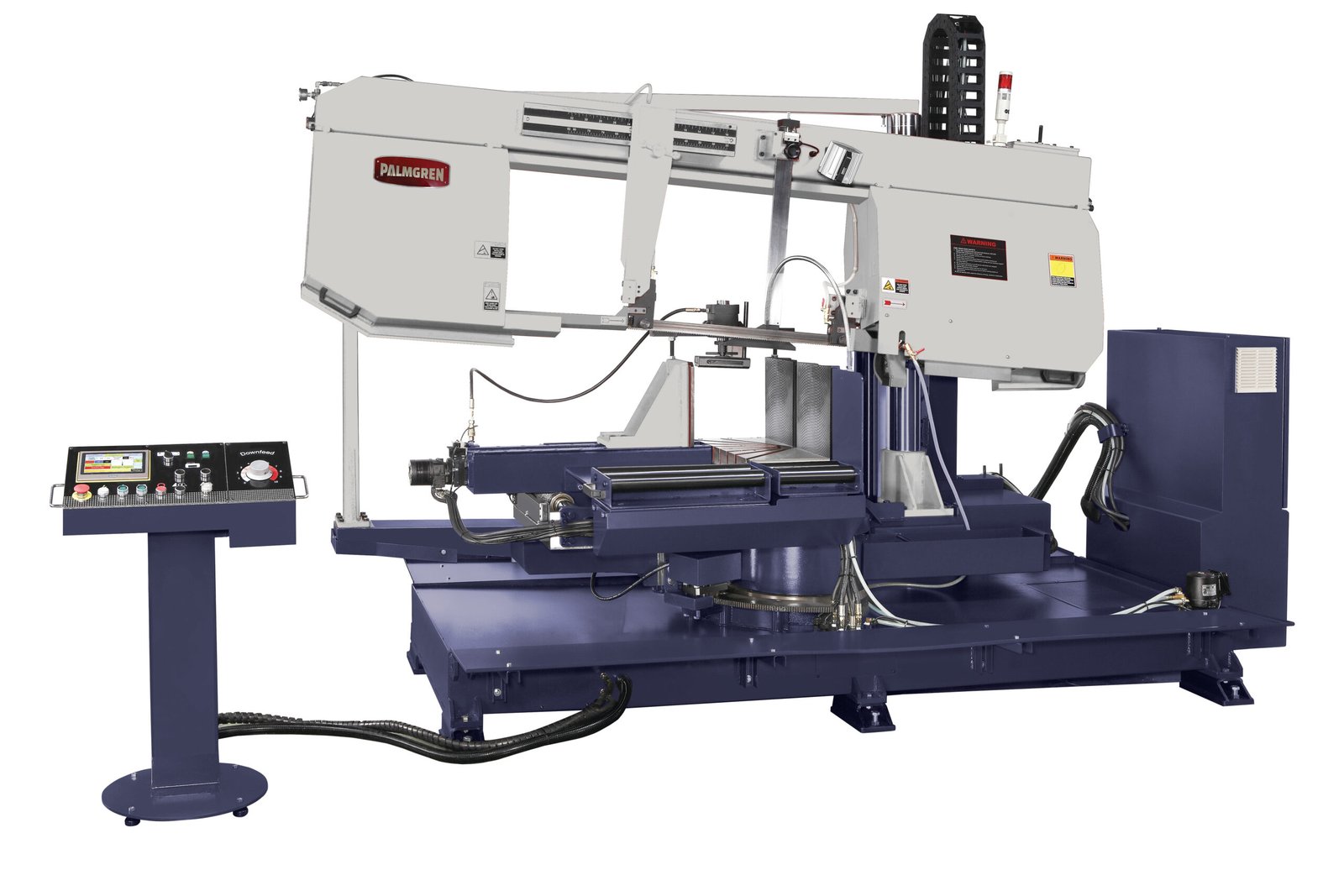

Palmgren 5HP 230V Three Phase 18” Semi-Automatic Dual Miter Horizontal Band Saw 9684484

Palmgren 5HP 230V Three Phase 18” Semi-Automatic Dual Miter Horizontal Band Saw 9684484 is a Palmgren product in the Band Saws collection.

Product Details

• Blade Speed: 82-282
• Blade Length: 243-1/2 in
• Blade Width: 1-9/16 in
• Blade Thickness: 0.051 in
• Description
• Palmgren's high production, horizontal, semi-automatic, large capacity, dual column band saw is capable of cutting 18" round materials. A dual direction swivel can miter cut up to 45 degrees to the right and 60 degrees to the left. This band saw is ideal for production sawing of structural solids, tubing, stainless, and tool steels. The ideal saw for fabricators cutting multiple angles in the same work piece.
• Features
• Touch display control panel for easy positioning and operation
• Hydraulic blade tensioning
• 1-9/16" blade with motor driven blade brush
• Saw blade is set at 7 degree angle allowing for more efficient cutting
• Electronic inverter variable speed
• Hydraulic adjustable carbide blade guides
• Blade guard arm has automatic adjustment for proper positioning
• Material sensor and switch controls rapid advance to workpiece limiting excess movement of the saw head
• Miter angle of the saw head is set on the control screen and the saw head automatically moves to programmed angle via servo motor with hydraulic brake for fast accurate positioning
• Vise pressure regulator to handle various types and shapes of materials
• Specifications
• Model: 84484
• Voltage: 230V
• Phase: 3
• Main Motor HP: 5 HP
• Hydraulic Motor: 2 HP
• Hydraulic Tank: 9 Gallons
• Coolant Motor: 1/6 HP
• Coolant Tank Capacity: 37 Gallons
• Table Height: 30 in
• Round at 45°: 18 in
• Round Material Max. 0°: 18 in 60°: 13-3/4 in
• 0°: 18 in
• 60°: 13-3/4 in
• Rectangle 0°: 17-1/4 in x 32-1/4 in 45°: 16-1/2 in x 21-1/2 in 60°: 18 x 11 in
• 0°: 17-1/4 in x 32-1/4 in
• 45°: 16-1/2 in x 21-1/2 in
• 60°: 18 x 11 in
• Length: 142 in
• Width: 66.5 in
• Height: 85 in
• Weight: 4620 lbs.

Specifications

• Manufacturer: Palmgren
• SKU: 9684484
• UPC: 726896844848
• Shipping Method: Flatbed
• Weight: 4,720 lb
• Dimensions: 147 × 71 × 90 in
• Country of Origin: Taiwan
• Warranty: 3 Years (Parts)
