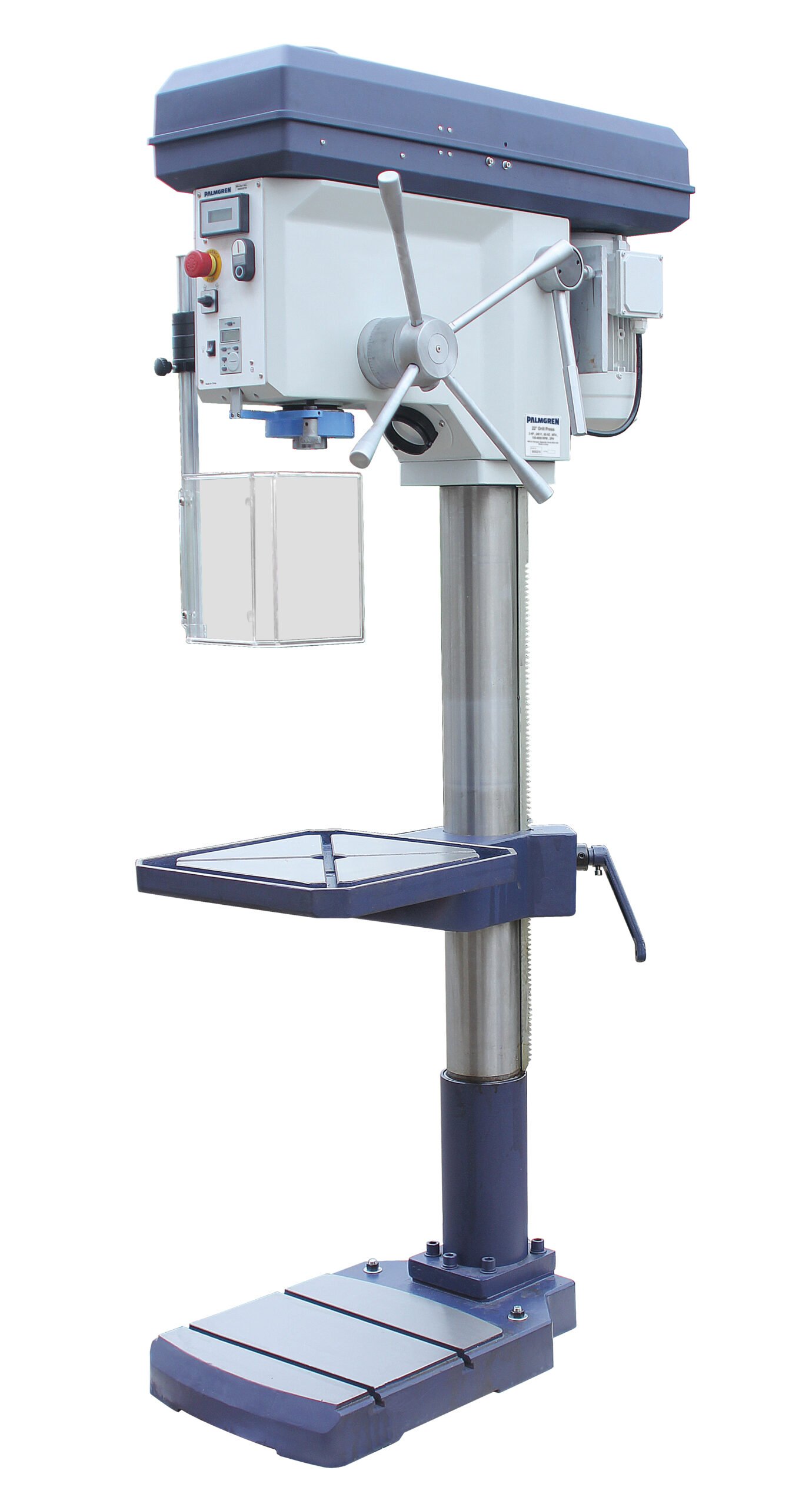

Palmgren 3HP 230V Three Phase 22” 9-Speed Step Pulley Floor Drill Press 9680216

Palmgren 3HP 230V Three Phase 22” 9-Speed Step Pulley Floor Drill Press 9680216 is a Palmgren product in the Drill Presses collection.

Product Details

• Drilling capacity in steel: Ø 1.336 in
• Working Range: 22 in
• Quill Travel: 6.299 in
• Distance spindle – table (max.): 33.858 in
• Description
• Palmgren premier line of step pulley drill presses have a wide range of speeds and are constructed throughout to form a solid base for heavy, accurate continuous use. The pulleys are long wearing aluminum alloy, fully machined, and balanced. Combined with a Gates 7M industrial V-ribbed V-belt that delivers better gripping and power with a service life of 10,000 hours. Speed changes are fast and easy – our exclusive quick change handle and motor spring plate provides consistent, proper tension from the motor to the belt and pulleys all the time. The fully enclosed machine tool spindle has a concentricity of 0.0005" at the spindle nose. These drills can be used to perform all hole making operations – drilling, tapping, reaming, boring, spotfacing, counter-boring and chamfering in any type of material.
• Features
• Built in halogen work light
• Forward & reverse switch
• Drill depth stop
• Digital depth gauge
• Digital speed display
• T-slotted table and base Interlocking spindle safety guard
• Electric interlock on the pulley cover
• Magnetic overload protection
• Built in tool ejector
• Chuck and arbor
• Specifications
• Model: 80216
• Motor HP: 3HP / 230V / 3PH
• Spindle Speeds: 150 – 4000 rpm
• Spindle Taper: MT4/JT3
• Drilling capacity in steel: Ø 34 mm / 1.336 in
• Quill Travel: 160 mm / 6.299 in
• Number of pulley steps: 2 x 9 steps
• Table size L x W: 420 x 400 mm / 16.535 x 15.748 in
• T-slot size: 14 mm / 0.551 in
• Distance spindle – table (max.): 860 mm / 33.858 in
• Working surface base L x W: 390 x 370 mm / 15.354 x 14.567 in
• Distance spindle – base (max.): 1275 mm / 50.197 in
• Column Diameter: 115 mm / 4.528 in
• Height: 74.61 in
• Width: 23.03 in
• Depth: 36.14 in

Specifications

• Manufacturer: Palmgren
• SKU: 9680216
• UPC: 726896802169
• Shipping Method: LTL Freight
• Weight: 782 lb
• Dimensions: 41 × 28 × 80 in
• Country of Origin: China
• Warranty: 3 Years (Parts)
