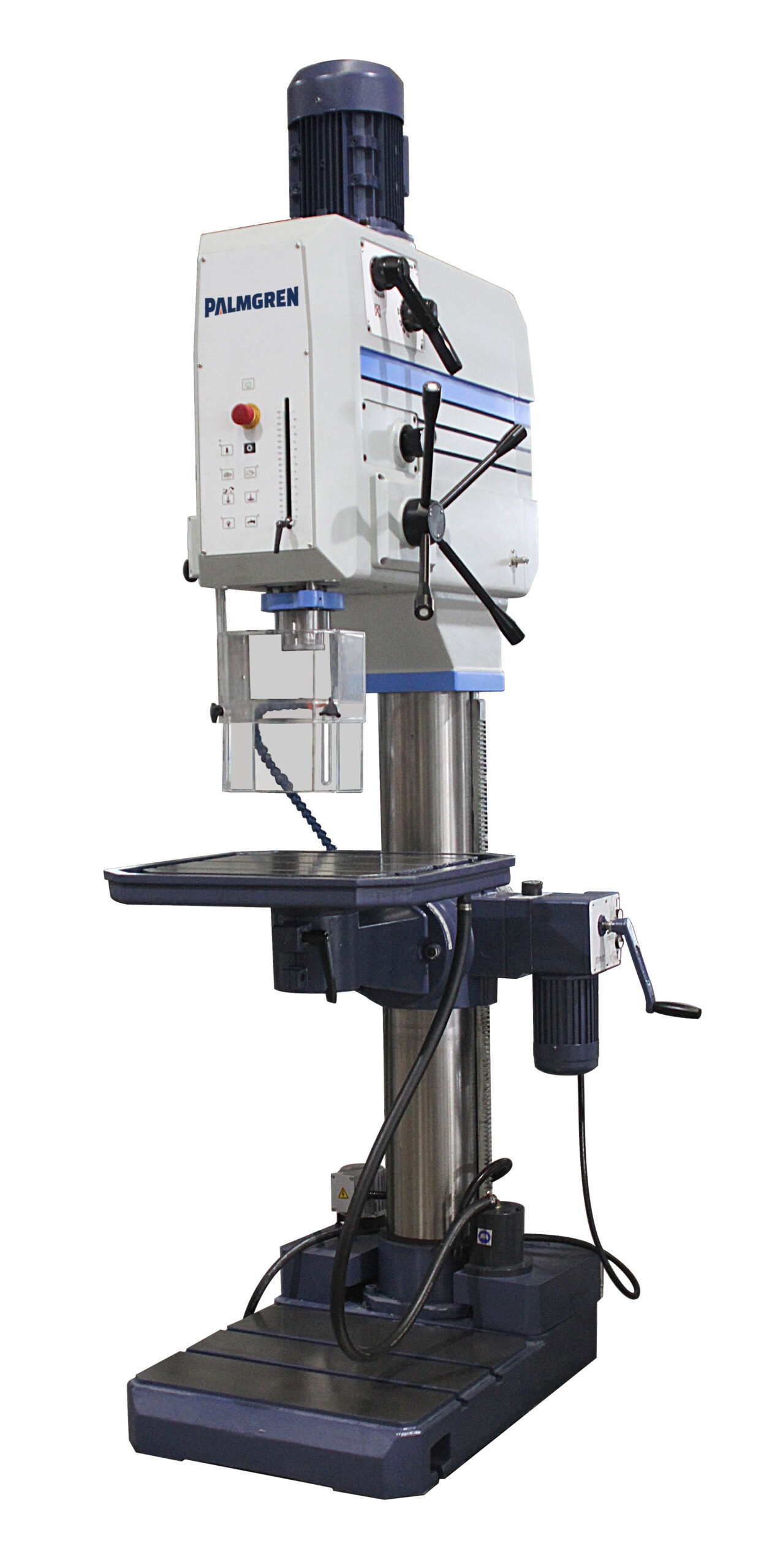

Palmgren 230V Three Phase 32” GH Drill Press 16-S 9680137

Palmgren 230V Three Phase 32” GH Drill Press 16-S 9680137 is a Palmgren product in the Drill Presses collection.

Product Details

• Spindle Travel: 7-7/8 in
• Capacity Cast Iron: 2 – 1/8 in
• HP: 4-5
• Capacity Steel: 2 in
• Description
• These versatile, variable speed, gear head, drill presses are all gear driven, thus they are perfect for precision drilling applications and continuous industrial use. The Palmgren 32" Drill Presses use a gear driven transmission that is designed to deliver full power at any speed, driving the cutting tool at nearly 100% of the available motor horsepower.
• Features
• Extra wide speed range with 16 selectable speeds
• Spindle gear box is equipped with hardened and ground steel gears and shafts, lubricated by an internal oil pump for quiet, smooth operation
• Fully enclosed machine tool ground spindle with internal 4 MT mounted in precision bearings for maximum accuracy, minimizing deflection
• Front mounted control panel designed for operator convenience
• Rack and pinion table raiser system
• T-slotted production table and base
• Front mounted, dial adjusted, work stop
• 8 inch column provides maximum head, table and base support and stability
• Flood coolant system
• Maximum spindle runout of 0.0005"
• Motorized table
• Table tilts left & right 45°
• Specifications
• Model: 80137
• Swing: 33 in
• Spindle Speed: 54 to 2400
• Spindle Taper: MT4/JT3
• Voltage: 230
• AMPS: 16
• Table Work Surface: 25 x 20.5 in
• Table Slots: 3
• Number of Speeds: 16
• Column Diameter: 8 in
• Base Size: 35.75 x 23.625 in
• Drive Type: Gear
• Phase: 3
• Table Slot Size: 14 mm
• Tilting Angle: 0° to 90°
• Quill Diameter: 88 mm
• Height: 92.5 in
• Width: 29 in
• Depth: 40.3 in

Specifications

• Manufacturer: Palmgren
• SKU: 9680137
• UPC: 726896801377
• Shipping Method: LTL Freight
• Weight: 1,401 lb
• Dimensions: 45 × 34 × 97 in
• Country of Origin: China
• Warranty: 3 Years (Parts)
