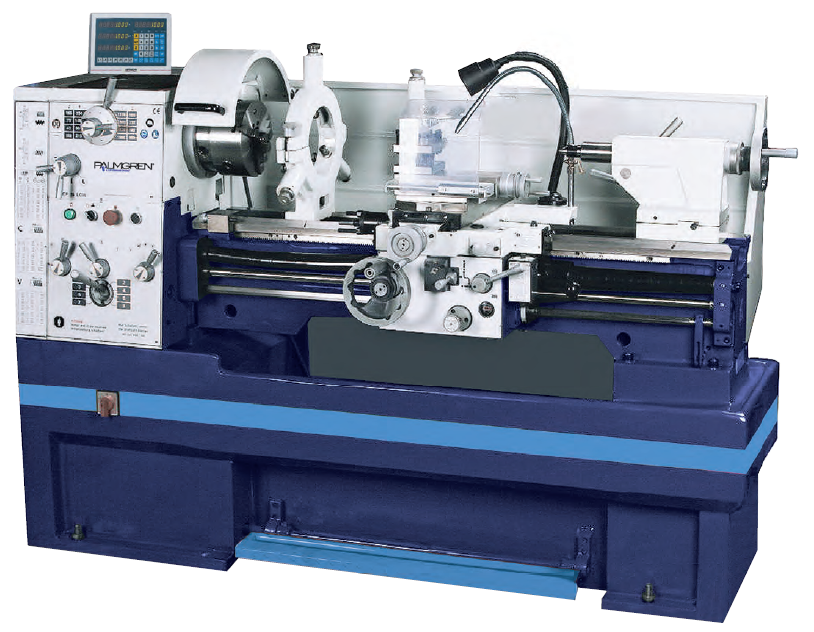

Palmgren 16” x 60” Engine Lathe with DRO 9684524

Palmgren 16” x 60” Engine Lathe with DRO 9684524 is a Palmgren product in the Lathes collection.

Product Details

• Motor: 6HP – 230V – 3PH – 60Hz
• Distance Between Centers: 60"
• Number of Spindle Speeds: 16
• Compound Travel: 5-1/2"
• Description
• The Ultimate in turning machines Palmgren's 16” engine lathes has the power to deal with heavy metal removal and the accuracy and control to handle precision fine tolerance turning. Each machine comes standard with a DRO and glass scales for added operator convenience and accuracy. The headstock is designed to provide maximum power for roughing cuts and smooth, quiet power for fine finishing. All the gears are helical precision cut, hardened and ground running in a continual bath of oil. The main spindle is made of high alloy steel and mounted in precision taper roller bearings. The control panel is easy to use and is designed for operator convenience. The wide bed ways are made of stabilized cast iron, ground and hardened for a lifetime of use. The universal gear box delivers a broad range of feed and thread selections and each machine can do both inch and metric threads. All the gears are hardened and the shafts turn on anti friction bearings. All Palmgren lathes are built and inspected to the DIN 8606 toolmakers precision lathe standard assuring accuracy and consistent performance.
• Standard Equipment
• Digital Readout
• 3 & 4 Jaw Chucks
• Splash Guards
• Chuck and 4- Way Toolpost Safety Guard
• (2) MT3 Dead Centers
• Inch and Metric Gears for Threading
• Steady Rest
• Follow Rest
• Work Light
• Specifications
• Swing Over Bed: 16"
• Spindle Taper: MT6
• Spindle Bore: 2"
• Spindle Speed: 45 – 1800 RPM
• Bed Width: 9-7/8"
• Cross Travel: 9"
• Carriage Travel: 55"
• Tailstock Taper: MT 4
• Tailstock Travel: 4-3/4"
• Thread Range (In.): 2 – 72
• Thread Range (mm): 0.2 – 14
• Longitudinal Feed Rates: 0.002 – 0.067
• Overall Length: 97"
• Overall Width: 36"
• Overall Height: 53"

Specifications

• Manufacturer: Palmgren
• SKU: 9684524
• UPC: 726896845241
• Shipping Method: LTL Freight
• Weight: 3,443 lb
• Dimensions: 97 × 36 × 60 in
• Warranty: 3 Years (Parts)
