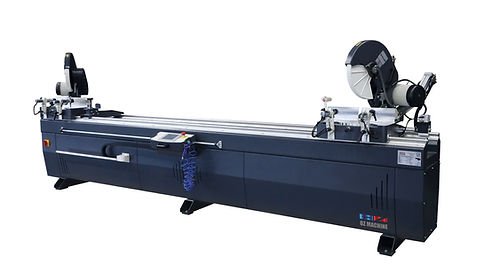

Oz Machine 400V Three Phase 16” Double-Head Cutting Machine with Semi-Automatic Digital Display Gemini-IIA

Oz Machine 400V Three Phase 16” Double-Head Cutting Machine with Semi-Automatic Digital Display Gemini-IIA is a OZ Machine product in the Cold Saws collection.

Product Details

• Saw blade diameter: 16”
• Saw blade speed: 3000 rpm
• Max profile loading length: 177”
• Cutting Length Capacity: 24” – 137”
• Description
• The OZ Machine Gemini-II A is a semi-automatic double head cutting machine with 16” saw blades. It is ideal for cutting aluminum, PVC, and wood profiles in various angles and thickness.
• Features
• Hydro-Pneumatic cutting
• Electronically controlled X-Axis
• Positioning control with magnetic ruler
• Safe cutting with saw blade barrier
• Cutting at any desired angle between -45° and +45°
• 0°, 15°, 22.5°, 30°, 45° right and left angle fixing
• Automatic horizontal and vertical pneumatic clamps
• Profile support unit
• Adjustable saw blade travel speed
• Ability to save recipes
• Precision cutting measurement with digital indicator
• Touchscreen control panel
• Saw blade stroke speed adjustment
• Cooling lubrication system
• Manual intermediate profile support
• Saw blade protection covers
• Moving head positioning control with linear scale
• Standard Equipment
• Hydro-Pneumatic Cutting Feed Adjustment
• Electro Control X-Axis
• 16” saw blade (2 pcs)
• Cooling System
• Specifications
• Cutting length w/Double Head at 90° & 45° Minimum Length: 24” Max Length: 137”
• Minimum Length: 24”
• Max Length: 137”
• X-Axis Positioning Speed: 590 in/min
• Max Internal Rotation Angle: 45°
• Max External Rotation Angle: -45°
• Air Pressure: 6-8 bar
• Air Consumption: 13 L/min
• Mobile Head Motor: 0.75HP / 1400rpm / 60hz / 4.5Amp / 0.55kW
• Electrical Requirements: 400V / Three Phase / 2HP / 60Hz / 1.5kW / 9Amp
• Machine Dims: 165” x 41” x 60”
• Approx Weight: 1,382 lbs
• Optional Add-Ons
• Vacuum Cleaner for Chips

Specifications

• Manufacturer: OZ Machine
• SKU: Gemini-IIA
• Shipping Method: LTL Freight
• Weight: 1,450 lb
• Dimensions: 170 × 48 × 65 in
