OZ Machine 400V 1.5HP Copy Router Machine with Triple Grip Slot Drilling and Water Discharge GALAXY – III

OZ Machine 400V 1.5HP Copy Router Machine with Triple Grip Slot Drilling and Water Discharge GALAXY – III is a OZ Machine product in the Milling Machines collection.

Product Details

• KW: 1.1
• RPM: 3000
• Hz: 50 / 60
• Amp: 6.5 A
• Features
• Used for cutting appropriate slots on aluminum and vinyl profiles for mounting locks, grips, hinges, latches, and opening channels. Copy assembly matching the process Ability to open various channels independently of the copy assembly with profile gauges Pneumatic clamps Triple grip slot drilling system Ability to open water discharge channels with various angles and sizes
• Copy assembly matching the process
• Ability to open various channels independently of the copy assembly with profile gauges
• Pneumatic clamps

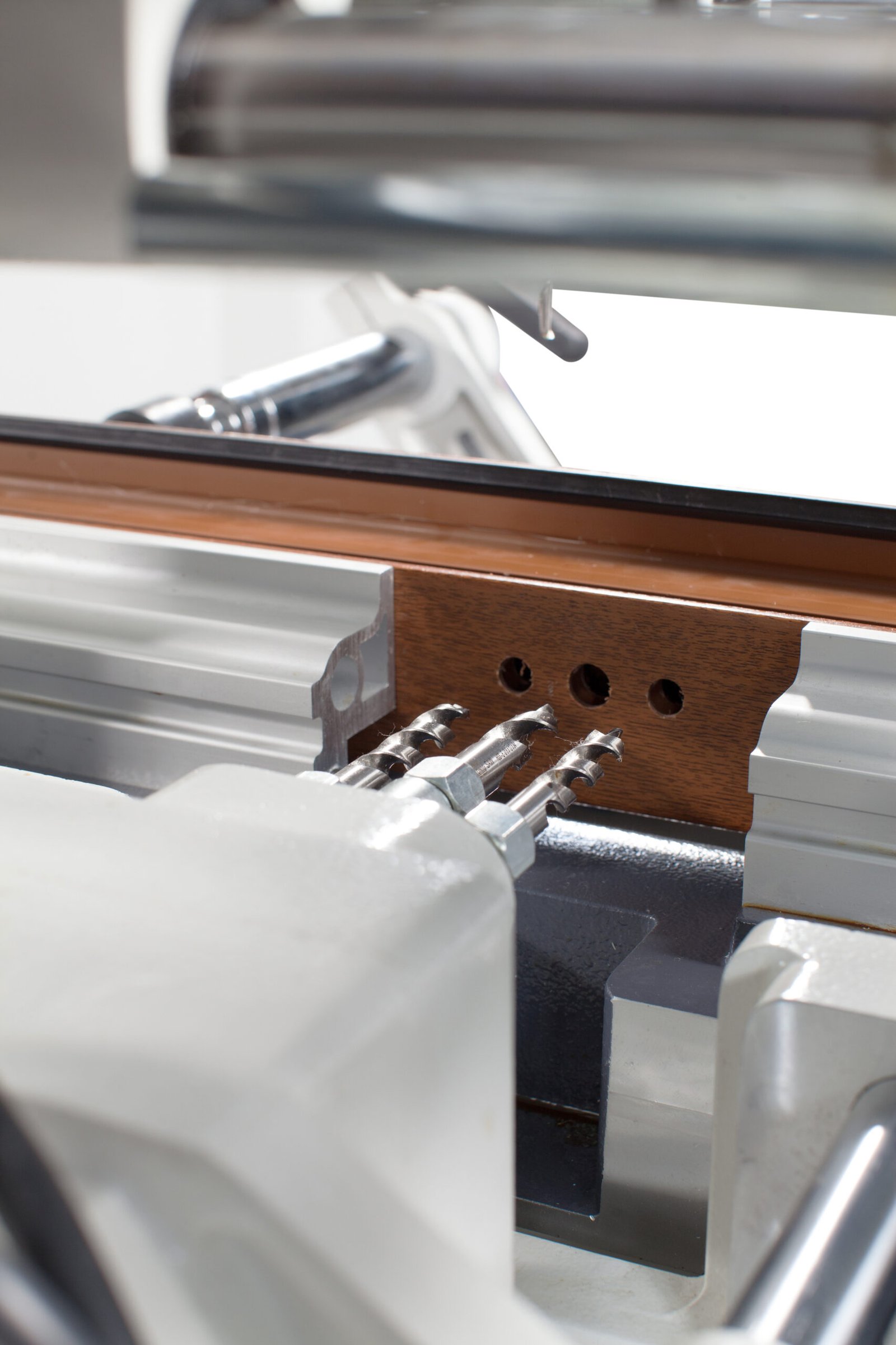

• Triple grip slot drilling system
• Ability to open water discharge channels with various angles and sizes
• Standard Equipment
• 0.2 inch milling cutter (2 pcs)
• Triple Drill Bit Kit
• Profile gauge
• Specifications
• HP: 1.5
• Voltage: 400 V
• Air pressure: 6-8 bar
• Air consumption: 8 L / min
• Weight: 335 lbs.
• Dimensions (L x W x H): 33” x 35” x 61”
• Options
• Special copy assembly
• Single-phase system

Specifications

• Manufacturer: OZ Machine
• SKU: GALAXY – III
• Shipping Method: LTL Freight
• Weight: 401 lb
• Dimensions: 38 × 40 × 66 in
• Country of Origin: Turkey
• Warranty: 1 Year (Parts)
