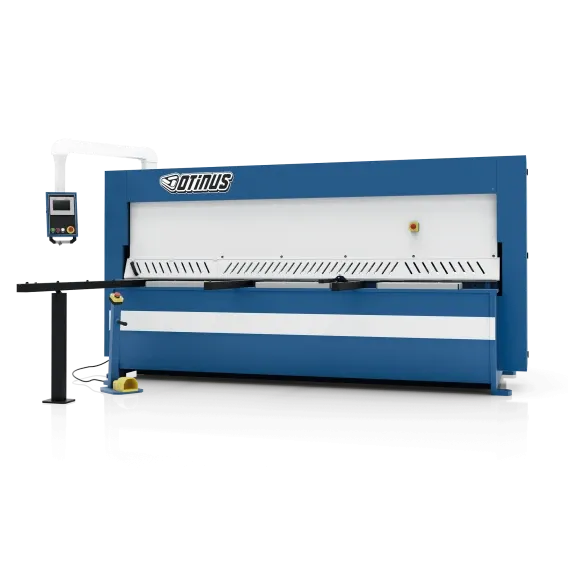

Otinus Pro Line 460V Three Phase 5/16” x 122” CybTouch-8W Controlled Guillotine Shear SMO-3108-PRO

Otinus Pro Line 460V Three Phase 5/16” x 122” CybTouch-8W Controlled Guillotine Shear SMO-3108-PRO is a Otinus product in the Shears collection.

Product Details

• Rake angle: 1.8°
• Number of hold-downs: 17 pcs
• Strokes per min: 13 cuts/min
• Backgauge range: 30”
• Features
• Reinforced and more solid construction
• CybTouch8 CNC Controller
• Extended front supports with protractors
• Supports and ball transfer units at the front table and rear ramp
• Laser cutting line indicator
• Additional lifts on the rear ramp
• Guards and photocells ensuring operator safety
• Automatic clearance adjustment – ability to adapt to different material thicknesses
• Machine workspace lighting
• Blades: up to 1 inch thick
• Blades for cutting stainless steel
• Automatic blade gap adjustment
• CybTouch 8W Controller
• Mounted on a swivel arm on the left-hand side of the machine
• Automatic calculations of the shear functions upon material specifications
• Automatic blade gap
• Automatic back gauge correction
• Automatic back gauge foldaway
• 2/3- position sheet support
• Return to sender function (RTS)
• Front or back gauge management
• Parking position (foldaway function)
• Hold-downs pressure management
• System pressure management
• Large cutting sequences and programs can be memorized. Vivid colors
• Simple pages, large keys, clear display with all the information the operator needs
• Intuitive and user-friendly interface
• Complete programming of parts in seconds
• Specifications
• Capacity ≤450 N/mm²: 5/16” (8mm)
• Capacity ≤750 N/mm²: .20” (5mm)
• Max cutting length (carbon steel): 122”
• Capacity of oil tank: 42 gal
• Bed height: 31”
• Backgauge motor: 0.55 kW
• Motor Power: 20HP (15kW)
• Electrical Requirements: 460V Three Phase
• Machine Dims: 130” x 76” x 65”
• Approx Weight: 14,222 lbs

Specifications

• Manufacturer: Otinus
• SKU: SMO-3108-PRO
• Shipping Method: Flatbed
• Weight: 14,400 lb
• Dimensions: 135 × 80 × 70 in
• Country of Origin: Turkey
