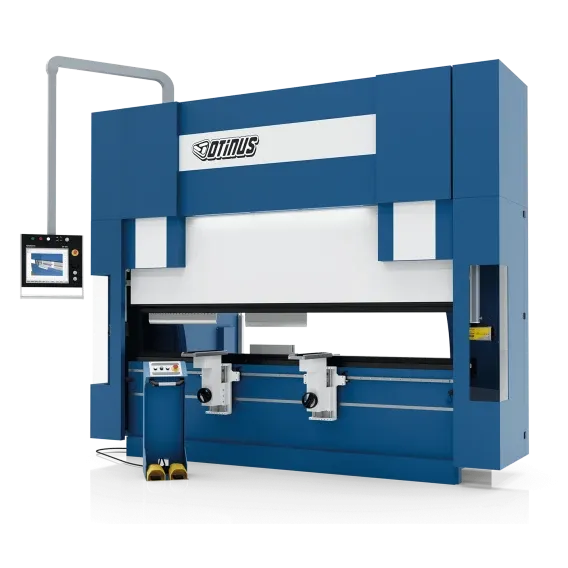

Otinus Pro Line 460V Three Phase 264 Ton x 122” Delem-DA66T Controlled Hydraulic Press Brake PBO-3124-PRO

Otinus Pro Line 460V Three Phase 264 Ton x 122” Delem-DA66T Controlled Hydraulic Press Brake PBO-3124-PRO is a Otinus product in the Press Brakes collection.

Product Details

• Throat depth: 16”
• Max ram stroke: 10”
• Daylight: 21”
• Approach/Working/Return Speeds: 130-10-120 mm/sec
• Features
• Delem Controller
• Fiessler Akas light curtains
• Amada-Promecam tool clamping system
• Quick clamping system
• Movements in all axes controlled by servomotors
• User-friendly interface
• Front supports for sheet handling
• Oil cooling system (OCS)
• Hydraulic system: HAWE
• Light curtains
• Limit switches
• Safety guards
• Standard Equipment
• Controller: Delem DA-66T
• Y1+Y2+X+R axes (servo drives)
• Automatic crowning
• Promecam rapid clamp system
• 2 backgauge fingers
• 2 front supports on linear guides
• AKAS II light curtains
• Delem DA-66T Controller
• Automatic control of 8 axes translating into more efficient bending
• Storing up to 500 programs, each consisting of 25 steps and 99 repetitions
• Saving up to 30 upper and lower dies
• Controller with 2D/3D programming mode
• 17” TFT touch screen
• Windows with controller software (possibility to create programs on the PC)
• Crowning control managed through the controller
• Complex Delem design
• USB that allows connecting in new devices
• Available space for connecting a bending angle sensor
• Controls and sensors prevent collisions along individual axes
• Specifications
• Tonnage: 264 ton (2400 kN)
• Max working length: 122”
• Bed height: 35”
• Table width: 4”
• Oil tank volume: 56 gal
• Nominal motor power: 29.5HP (22 kW)
• Electrical Requirements: 460V Three Phase
• Machine Dims: 108” x 63” x 114”
• Approx Weight: 24,255 lbs

Specifications

• Manufacturer: Otinus
• SKU: PBO-3124-PRO
• Shipping Method: Flatbed
• Weight: 24,400 lb
• Dimensions: 112 × 68 × 120 in
