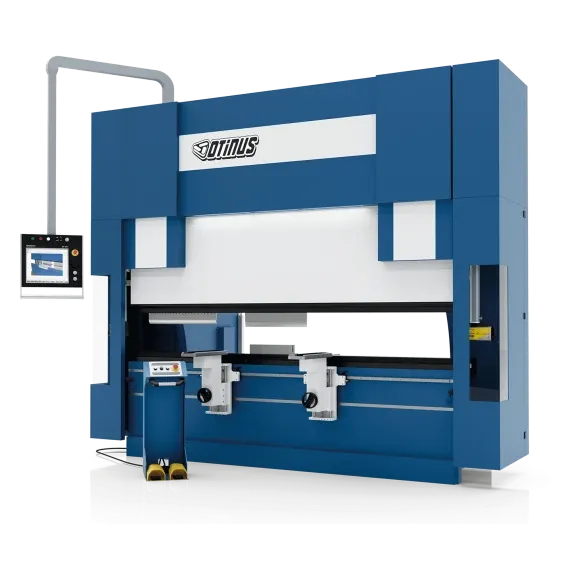

Otinus Pro Line 460V Three Phase 193 Ton x 145” Delem-DA66T Controlled Hydraulic Press Brake PBO-3717-DA66

Otinus Pro Line 460V Three Phase 193 Ton x 145” Delem-DA66T Controlled Hydraulic Press Brake PBO-3717-DA66 is a Otinus product in the Press Brakes collection.

Product Details

• Max sheet thickness: 0.315”
• Throat depth: 16”
• Max ram stroke: 12”
• Daylight: 18”
• Features
• Delem Controller
• Fiessler Akas light curtains
• Amada-Promecam tool clamping system
• Quick clamping system
• Movements in all axes controlled by servomotors
• User-friendly interface
• Front supports for sheet handling
• Oil cooling system (OCS)
• Hydraulic system: HAWE
• Light curtains
• Limit switches
• Safety guard
• Standard Equipment
• Controller: Delem DA-66T
• Y1+Y2+X+R axes (servo drives)
• Automatic crowning
• Promecam rapid clamp system
• 2 backgauge fingers
• 2 front supports on linear guides
• AKAS II light curtains
• Delem DA-66T Controller
• Automatic control of 8 axes translating into more efficient bending
• Storing up to 500 programs, each consisting of 25 steps and 99 repetitions
• Saving up to 30 upper and lower dies
• Controller with 2D/3D programming mode
• 17” TFT touch screen
• Windows with controller software (possibility to create programs on the PC)
• Crowing control managed through the controller
• Complex Delem design
• USB that allows connecting in new devices
• Available space for connecting a bending angle sensor
• Controls and sensors prevent collisions along individual axes
• Specifications
• Tonnage: 193 ton (1750 kN)
• Max working length: 145”
• Distance between frames: 11 ft
• Backgauge retract distance: 29”
• Nominal motor power: 20HP (15 kW)
• Electrical Requirements: 460V Three Phase
• Machine Dims: 207” x 96” x 118”
• Approx Weight: 23,150 lbs

Specifications

• Manufacturer: Otinus
• SKU: PBO-3717-DA66
• Shipping Method: Flatbed
• Weight: 23,300 lb
• Dimensions: 212 × 100 × 123 in
