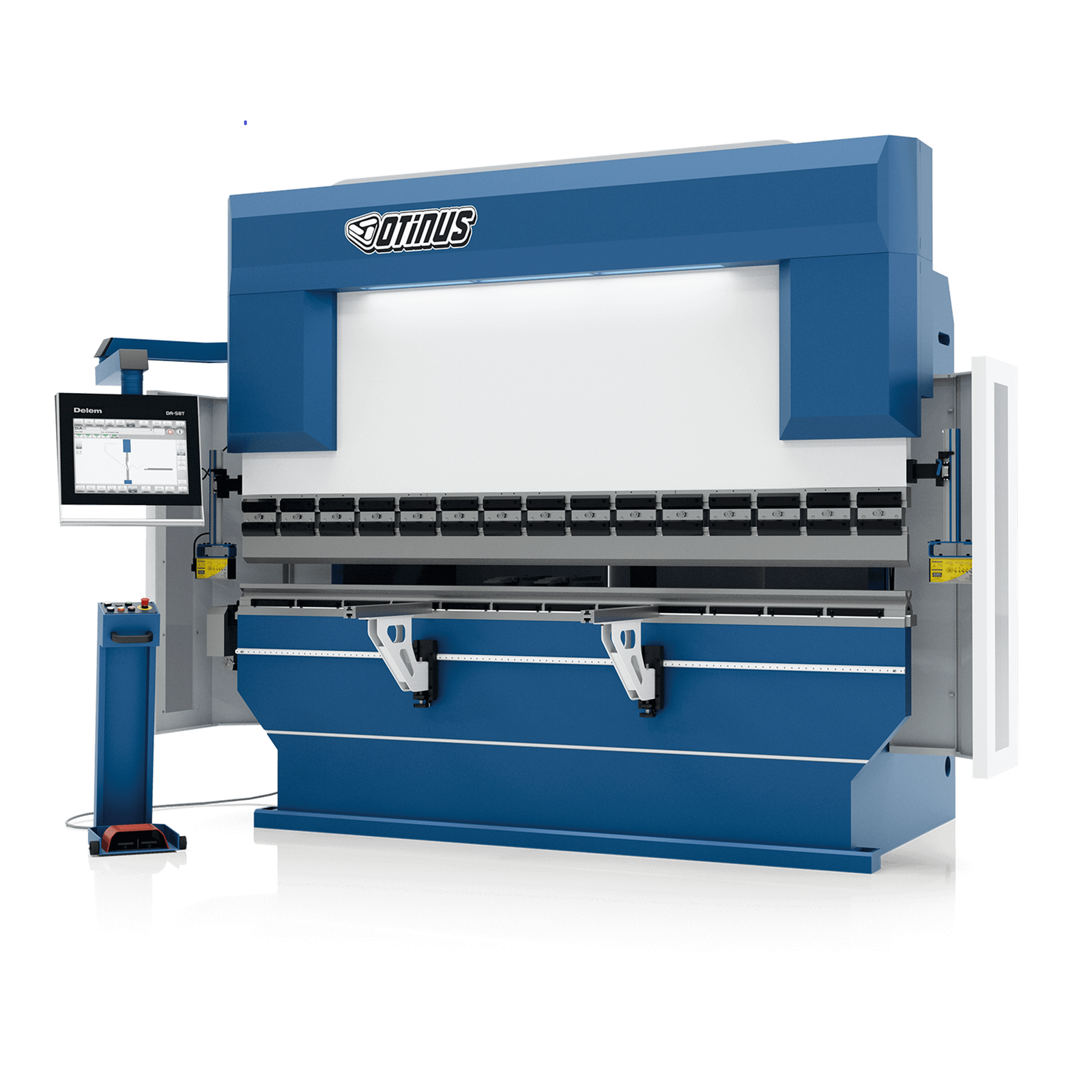

Otinus Base Line 460V Three Phase 66 Ton x 82” Delem-DA66T Controlled Hydraulic CNC Press Brake PBO-2160-CNC

Otinus Base Line 460V Three Phase 66 Ton x 82” Delem-DA66T Controlled Hydraulic CNC Press Brake PBO-2160-CNC is a Otinus product in the Press Brakes collection.

Product Details

• Throat depth: 16”
• Max ram stroke: 12”
• Daylight: 18”
• Return speed: 210 mm/sec
• Features
• Delem Controller
• Front laser safety system: Fiessler AKAS-II
• Hydraulic system: HAWE
• Front supports on linear guides
• Universal lower die
• Amada-Promecam tool clamping system
• Quick clamping system
• Movements in all axes controlled by servomotors
• User-friendly interface
• Front supports for sheet handling
• Oil cooling system (OCS)
• Light curtains
• Limit switches
• Safety guards
• Standard Equipment
• Lower die segmented as the upper die + die holder
• AMADA type double punch clamping
• Independent control of Y1 and Y2 axes
• Automatic control of R-axis
• 2 front supports on linear guides
• Delem DA-66T Controller
• Automatic control of 8 axes translating into more efficient bending
• Storing up to 500 programs, each consisting of 25 steps and 99 repetitions
• Saving up to 30 upper and lower dies
• Controller with 2D/3D programming mode
• 17” TFT touch screen
• Windows with controller software (possibility to create programs on the PC)
• Crowning control managed through the controller
• Complex Delem design
• USB that allows connecting in new devices
• Available space for connecting a bending angle sensor
• Controls and sensors prevent collisions along individual axes
• Specifications
• Tonnage: 66 ton (1100 kN)
• Max working length: 82”
• Max backgauge distance: 29”
• Distance between frames: 108”
• Nominal motor power: 14.75HP (11 kW)
• Electrical Requirements: 460V Three Phase
• Machine Dims: 192” x 96” x 120”
• Approx Weight: 17,089 lbs

Specifications

• Manufacturer: Otinus
• SKU: PBO-2160-CNC-DelemDA-66T
• Shipping Method: Flatbed
• Weight: 17,200 lb
• Dimensions: 195 × 100 × 125 in
