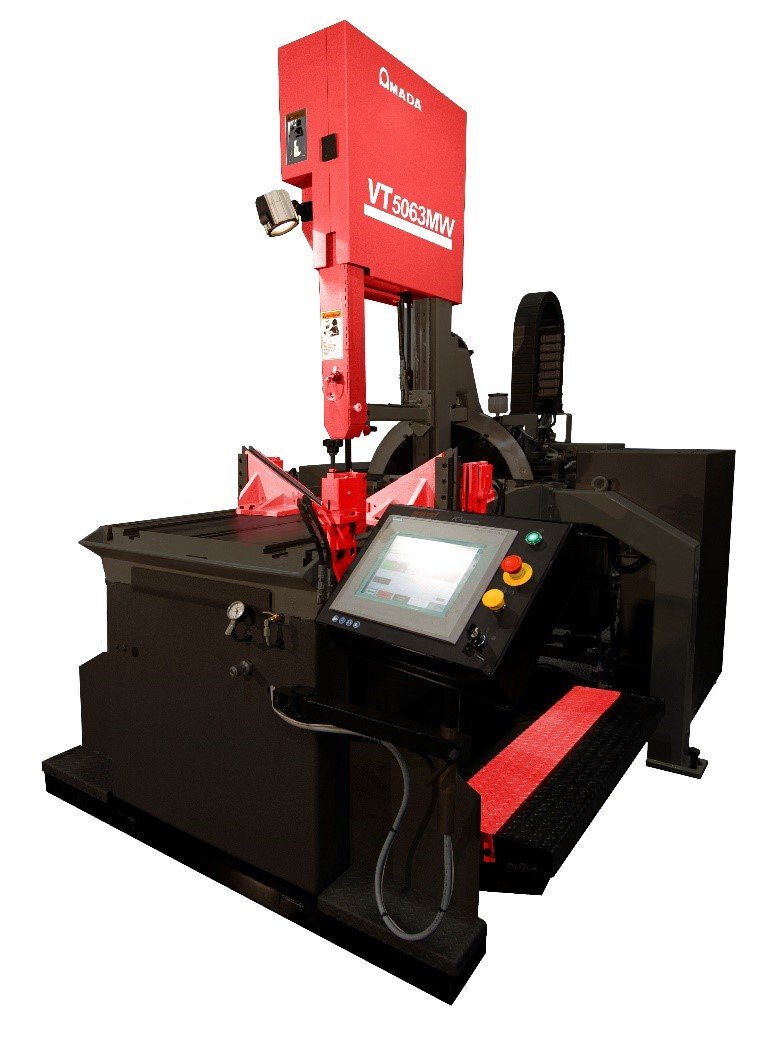

Marvel Amada 7.5 HP 230V Three Phase 2000 Series Manual Vertical Tilt-Frame Band Saw 2150M-60 VT5063MW

Marvel Amada 7.5 HP 230V Three Phase 2000 Series Manual Vertical Tilt-Frame Band Saw 2150M-60 VT5063MW is a Marvel product in the Band Saws collection.

Product Details

• Table Height: 40"
• Blade Drive: 7.5 HP
• Blade Size: 18'2" x 1.5" x .05
• Voltage: 230V 3-Phase
• Features
• Easy Load Blade Guide Our patented easy-load blade guides make blade changes easier than ever. The blade change mode selector switch locks out all other saw functions while the blade is being changed.
• Our patented easy-load blade guides make blade changes easier than ever.
• The blade change mode selector switch locks out all other saw functions while the blade is being changed.
• Automatic Bar Feed The patented automatic bar feed design features a 48” stroke length with indexing speeds of up to 60 ft/min. The bar feed vise is servo driven with encoder feedback, and combines precision double ball screws with preloaded recirculating linear guides, resulting in positioning accuracy of +/- .005” per index.
• The patented automatic bar feed design features a 48” stroke length with indexing speeds of up to 60 ft/min.
• The bar feed vise is servo driven with encoder feedback, and combines precision double ball screws with preloaded recirculating linear guides, resulting in positioning accuracy of +/- .005” per index.
• Hydraulic Vise Jaws Full stroke hydraulic vises help simplify set-up and material positioning for easy operation The optional Second Machine Vise helps eliminate burs and align crooked material.
• Full stroke hydraulic vises help simplify set-up and material positioning for easy operation
• The optional Second Machine Vise helps eliminate burs and align crooked material.
• Hydraulic Pack The compact self-contained hydraulic pack provides feed pressures up to 350 lbs. and blade tension up to 45,000 psi. The system is equipped with a low fluid sensor that shuts the machine down if the hydraulic fluid level drops below a safe operating level.
• The compact self-contained hydraulic pack provides feed pressures up to 350 lbs. and blade tension up to 45,000 psi. The system is equipped with a low fluid sensor that shuts the machine down if the hydraulic fluid level drops below a safe operating level.
• Specifications
• CAPACITY NOMINAL: 20" x 25", 20" Round
• CAPACITY at 45°: 20" x 17", 17" Round
• CAPACITY at 60°: 20" x 11.25", 11.25" Round
• SPEED RANGE: 30 to 500 FPM – Infinitely Variable
• FEED FORCE: 0 – 300 lbs.
• BLADE SIZE: 18'2" x 1.5" x .05 (5537mm x 41mm x 1.27mm)
• BLADE GUIDES: Combination Roller Bearing / Carbide
• BLADE TENSION: 45,000 psi. max.
• BLADE DRIVE: 7.5 H.P ., 1800 RPM
• VOLTAGE: 230-3-60 Volt
• COOLANT PUMP: 1/8 H.P. (.1 kW)
• HYDRAULIC PUMP: 5 H.P. (3,7 kW)
• HYDRAULIC OIL: 10 gal
• COOLANT CAPACITY: 60 gal
• Options
• 10-HORSE POWER BLADE DRIVE: In place of standard 7.5 H.P. drive motor for tough-to-cut applications.
• OPPOSITE HAND WORK ENTRY: Right-to-left instead of left-to-right normally furnished.
• MANUAL (HAND CRANK) CHIP CONVEYOR: Manually operated hand crank “scraper type” chip conveyor in place of standard chip ramp. Includes one chip box.
• POWERED CHIP CONVEYOR: Automatic motorized “scraper type” chip conveyor in place of standard chip ramp. Includes drive motor with gear reduction and automatic shut off.
• VARIABLE VISE PRESSURE CONTROL: Enables hydraulic pressure of work holding vises to be adjusted as required. Includes hydraulic pressure gauge and operator control.

Specifications

• Manufacturer: Marvel
• SKU: VT5063MW
• Shipping Method: LTL Freight
• Weight: 5,500 lb
• Dimensions: 117 × 89 × 102 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
