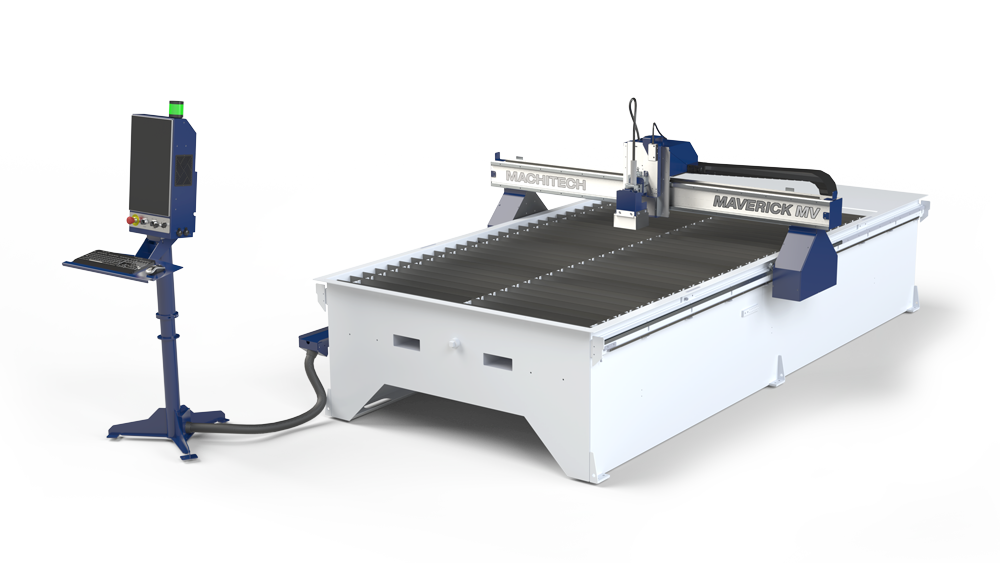

Machitech Maverick CNC MV Series 5′ x 5′ Conventional Air Plasma Table with Hypertherm Powermax 45XP MV55-HT-PM45

Machitech Maverick CNC MV Series 5′ x 5′ Conventional Air Plasma Table with Hypertherm Powermax 45XP MV55-HT-PM45 is a Machitech product in the CNC Plasma Tables collection.

Product Details

• Work Area: 66” x 66”
• Z-Axis Clearance: 5.5”
• Z-Axis Travel: 6”
• Repeatability: +/- 0.001”
• Description
• Compact, budget-friendly, and powerful perfectly describe the MV 5×5 CNC plasma table. Created for shops that operate in close quarters or businesses in congested cities paying a premium for space, the MV 5×5 CNC plasma table offers the same great plasma option in a smaller frame.
• In fact, the MV-Series is great for all small and mid-level shops in need of a quality CNC plasma table but aren’t operating them on a daily basis. Designed using industrial quality components that are durable and require less maintenance, this series is an economical, easy-to-operate solution backed by MaverickCNC’s superior fit and finish. Furthermore, MaverickCNC provides on-site, turnkey installation and training, ensuring that set-up is simple, performance is reliable, and cuts are exact and consistent. If you’re an ornamental iron company, HVAC shop or a business whose cutting needs are frequent but not daily, then the MV 5×5 CNC plasma table is the Maverick you want by your side.
• Features
• Rails and Gantry 6″ x 6″ extruded aluminum gantry Side rails are bolted on machined surfaces (unitized) Engineered for rigidity and strength
• 6″ x 6″ extruded aluminum gantry
• Side rails are bolted on machined surfaces (unitized)
• Engineered for rigidity and strength
• Fast and Precise Motion Self-cleaning V-groove bearings 1.25’’ pinion gears Cutting positional accuracy of 0.002″
• Self-cleaning V-groove bearings
• 1.25’’ pinion gears
• Cutting positional accuracy of 0.002″
• End Trucks Custom built end trucks on each side Protects the drive motor and pinion gear Engineered for strength
• Custom built end trucks on each side
• Protects the drive motor and pinion gear
• Engineered for strength
• Laptop CNC Controller Powerful 15″ i7 laptop on windows 10 Computer stand for easy operator use
• Powerful 15″ i7 laptop on windows 10
• Computer stand for easy operator use
• CAD/CAM/CNC Software Integrated MaverickCNC PRO CAD/CAM/CNC software Powerful and easy to use
• Integrated MaverickCNC PRO CAD/CAM/CNC software
• Powerful and easy to use
• Auto Torch Height Controller Enclosed dual linear slides Rapid responsive sampling over 10,000 times per second
• Enclosed dual linear slides
• Rapid responsive sampling over 10,000 times per second
• Compact unitized construction, custom forklift pockets
• Fully-welded frame, heavy-duty material support configured for both downdraft or water
• 6″ x 6″ precision machined aluminum gantry engineered for maximum stiffness
• 6″ clearance under gantry
• Oversized self-cleaning dual V-groove bearings riding on harden machined V-guide rails
• Dual linear bearings on Z axis for smooth motion
• Powerful 940 oz-in Nema 34 motors with zero backlash drive system
• Automatic torch height controller with magnetic breakaway system
• Arc voltage sampling to follow variations in material
• Powerful laptop controller on computer stand
• Integrated Maverick Pro CAD/CAM/CNC software designed to be user friendly for the novice or the experienced operator
• Complete integration with Hypertherm or Thermal Dynamics plasma cutters
• Laser cut slat brackets with offset slat pattern for increased table rigidity
• Dual side drives with fully enclosed z axis motors and custom end trucks, all axis cable tracks
• 2 days on-site installation and training by MaverickCNC’s certified technicians
• Specifications
• Cutting Speed: 800 ipm
• Rapid Traverse: 1200 ipm
• Drive System X, Y, Z Axis: Rack & Pinion
• Standard Work Surface: Steel Slat
• Dimensions (L x W x H): 103” x 103” x 53”
• Options
• Laser Pointer
• Pneumatic Scriber
• Oxy Fuel
• Manual Bevel Torch Holder
• Remote Pendant

Specifications

• Manufacturer: Machitech
• SKU: MV55-HT-PM45
• Shipping Method: Flatbed
• Weight: 1,800 lb
• Dimensions: 108 × 108 × 60 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
