Knuth KNWP 15 M Manual 16.5T Hydraulic Workshop Press 131742

Knuth KNWP 15 M Manual 16.5T Hydraulic Workshop Press 131742 is a Knuth product in the Hydraulic Presses collection.

Product Details

• Pressure Force: 16.5 T
• Operating Pressure (max): 5541.9 psi
• Total Piston Stroke: 6.3”
• 5 Year Parts Warranty
• Description
• These manual hydraulic workshop presses are built in Europe and are suitable for general assembly and straightening work or for testing workpieces. They enable safe and professional work and are mainly used in mechanical workshops, garages, and locksmiths.
• These workshop presses can be used in a variety of repair and installation work including:
• Removal and installation of press-fit bearings, bolts, and bushings
• Straightening beams, shafts, axles, and sections
• Pressing and crimping
• Load tests and weld sample testing
• Straightening of workpieces
• Material testing
• Features
• Rigid machine frame featuring a carefully machined weldment structure

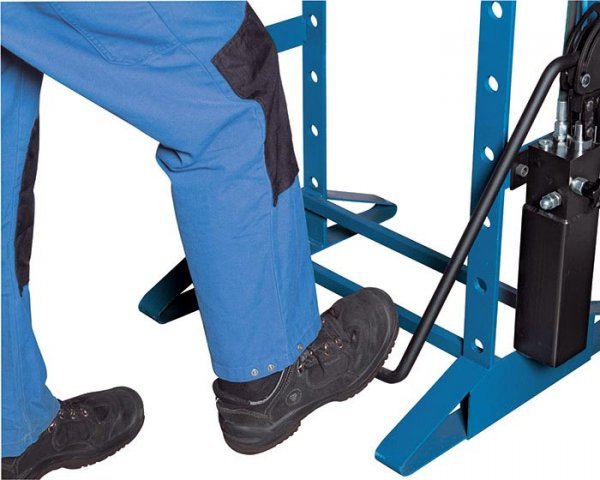

• Hydraulic pump can be operated by hand or foot control
• 2-step hydraulics – with change-over switch for changing between quick-stroke and work stroke
• Automatic reset of piston, controllable by user via throttle valve and spring
• The support table features rigid design, but is easy to handle with adjustable height

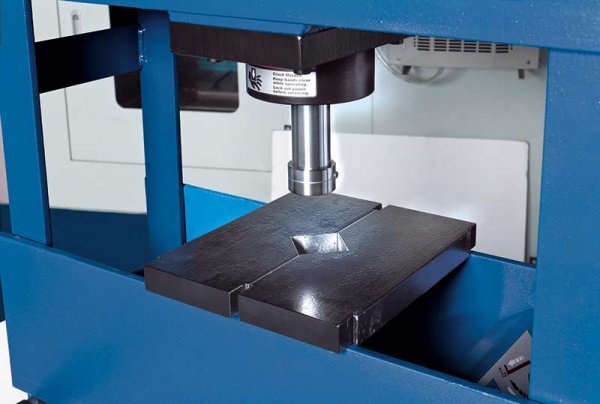

• Includes multi-function die for straightening flat material and corrugation
• Table lifting system
• Specifications
• Working Area Pressure Force: 16.5 T Operating Pressure (max): 5541.9 psi Total Piston Stroke: 6.3” Throat Width: 22”
• Throat Width: 22”
• Measures and Weights Hydraulic Tank Volume: 0.44 gal Weight: 257 lbs Overall Dimensions (LxWxH): 33” x 24” x 76”
• Hydraulic Tank Volume: 0.44 gal
• Weight: 257 lbs
• Overall Dimensions (LxWxH): 33” x 24” x 76”

Specifications

• Manufacturer: Knuth
• SKU: 131742
• Shipping Method: LTL Freight
• Weight: 257 lb
• Dimensions: 33 × 24 × 76 in
• Country of Origin: Netherlands
• Warranty: 5 Years (Parts)
