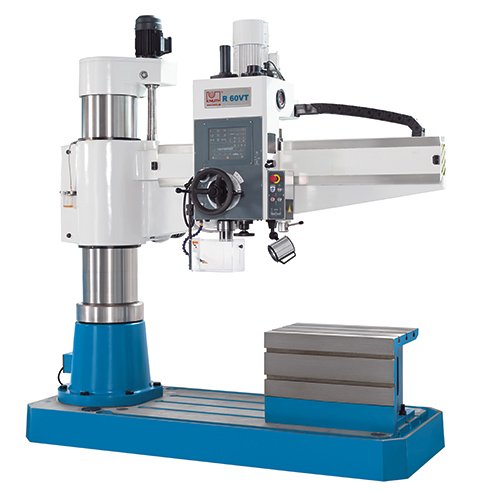

Knuth 5HP 12” R 60 VT Radial Drill Press with Touchscreen Control Panel 101656

Knuth 5HP 12” R 60 VT Radial Drill Press with Touchscreen Control Panel 101656 is a Knuth product in the Drill Presses collection.

Product Details

• Drilling capacity: 2.36”
• Drilling depth (max.): 12”
• Speed range: 38 rpm – 2000 rpm
• Motor rating main drive: 5.4 Hp
• Description
• The R 60 VT model belongs to the latest generation of the much-used radial drilling machines. The unique operating concept simplifies processing and supports the operator in selecting the operating parameters. This model enables precise drilling, countersinking, and thread cutting and is the ideal solution for single and small batch production. This radial drilling machine is often used in maintenance, tool, and steel construction.
• Features
• Base, column, boom, and gear head are made of premium high-quality cast
• Major design features include a large column and a highly torsion-resistant boom
• Boom height adjustment via a powerful motorized drive and vertical spindle
• The boom lifting gears run in an oil-bath for maximum reliability and minimum wear
• Swivel axis and travel axis feature extremely smooth operation to make the operator's everyday production work easier
• A central lubrication system ensures reliable lubrication of the column

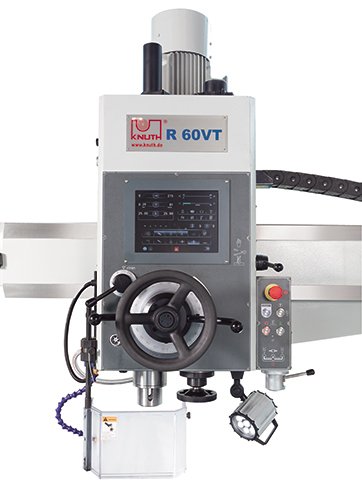

• Electronically controlled servo quill feed with large touchscreen display
• Drilling depth is electronically set, and the input value is checked by the system
• Measuring units for input and display can be selected by the operator (mm or inch)
• The high-performance coolant system enabled at the touchscreen and will be turned on and off as a function of the main spindle
• The machine has 2 gear steps, and the rpm can be infinitely varied and displayed at the monitor
• A servo motor provides infinitely variable control of the quill feed – upon reaching the preselected drilling depth, the quill automatically returns to the starting position
• Thread cutting is, however, completely manual, i.e., the operator changes the quill’s rotational direction upon reaching the drilling depth
• The operator sets the boom height by touching the respective icon, whereupon the system automatically releases and fixates the hydraulic clamps, turns off the lift motor, and considers all set limit stops
• Drill head and column can be clamped/released together or separately
• Boom can be moved vertically without losing the spindle-to-bore alignment
• The control software also provides recommendations for rpm and feed in relation to the desired drill size
• Various alarm screens warn the operator in case of operational errors and display information on the operational state
• Standard Equipment
• Touchscreen control panel
• Coolant system
• Cube table
• LED work lamp
• Operator instructions
• Specifications
• Working Area Drilling capacity: 2.36” Tapping capacity, cast-iron: M 50 Tapping capacity, steel: M 45 Drilling depth (max.): 12” Throat: 14” – 63” Spindle nose-to-table surface distance: 14” – 49” Drill head travel (horizontal): 49”
• Tapping capacity, cast-iron: M 50
• Tapping capacity, steel: M 45
• Throat: 14” – 63”
• Spindle nose-to-table surface distance: 14” – 49”
• Drill head travel (horizontal): 49”
• Headstock Speed range-stages: 2 Speed range: 38 rpm – 2000 rpm Spindle mount: MT 5
• Speed range-stages: 2
• Spindle mount: MT 5
• Feed Feeds: 0”/min – 11.81”/min
• Feeds: 0”/min – 11.81”/min
• Drive Capacity Motor rating main drive: 5.4 Hp Stroke motor: 2 Hp
• Stroke motor: 2 Hp
• Measure and Weights Overall dimensions (length x width x height): 99” x 42” x 110” Weight: 8,360 lbs.
• Overall dimensions (length x width x height): 99” x 42” x 110”
• Weight: 8,360 lbs.
• Options
• 253668 – Thread cutter for R 60 VT

Specifications

• Manufacturer: Knuth
• SKU: 101656
• Shipping Method: Flatbed
• Weight: 8,560 lb
• Dimensions: 104 × 47 × 115 in
• Country of Origin: China
