Knuth 5.4HP ABS 560 L Fully Automatic Band Saw 152771

Knuth 5.4HP ABS 560 L Fully Automatic Band Saw 152771 is a Knuth product in the Band Saws collection.

Product Details

• Stop length: 20”
• Accuracy of the feeding: 0.02”
• Cutting speed infinitely variable: 65 fpm – 327 fpm
• Cutting Capacity 0° Round: 22”
• Description

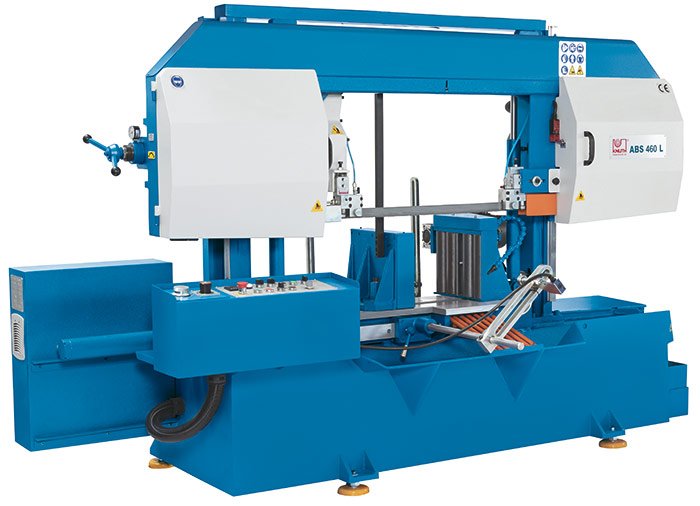

• The models of the ABS-L series are fully automatic horizontal band saws for precisely straight sawing of large and heavy workpieces. A rigid dual column frame forms the heart of the extremely stable construction. Using the central control panel, you can regulate the saw frame feed, steplessly adjust the saw blade speed and machine the workpiece hydraulically. The robust automatic material feed does not need any electronics or programming and still offers high repeat and dimensional accuracy.
• Features
• Torsionally rigid machine frame made of a robust steel construction with high-quality linear guides
• Proven material feed system with hardened workpiece guide rollers and hydraulic workpiece clamping
• Shorter machining times are made possible by an advanced hydraulic saw frame feed design, including a new pressure control system to master any sawing tasks – infinitely variable setting of feed speed and cutting pressure
• All required settings are accessible and clearly labeled at the second control valve for easy adjustments
• Optical registration of the workpiece height allows empty runs in rapid feed mode for an optimum change-over to work feed and limiting of the vertical saw frame travel – everything is automated to reduce operator work load
• Dual column design for superior stability
• Material feed system with workpiece guide rollers
• Hydraulic workpiece clamping
• Optical detection of the workpiece height

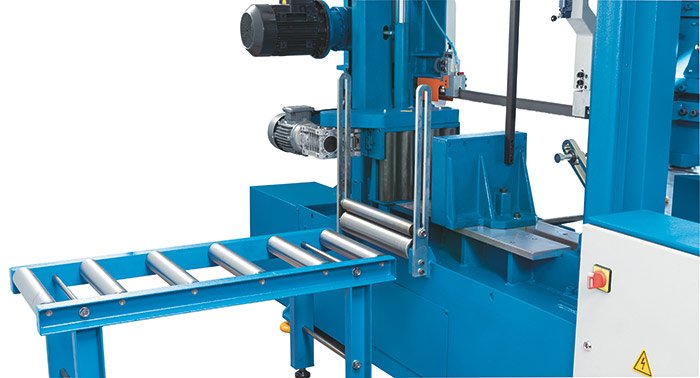

• Feed roller table 1.2 m (4 ft)
• Standard Equipment
• Saw-band
• Parts counter
• Band break control
• Coolant system
• Hydraulic clamping
• Mechanical saw blade tensioning with hydraulic pressure gauge
• Feed roller table 47"
• Linear stop
• Operator instructions
• Specifications
• Cutting Capacities Cutting capacity 0° Round: 22” Square: 22” Flat (length x width): 22” x 22” Stop length: 20” Accuracy of the feeding: 0.02” Cutting speed infinitely variable: 65 fpm – 327 fpm
• Cutting capacity 0° Round: 22” Square: 22” Flat (length x width): 22” x 22”
• Round: 22”
• Square: 22”
• Flat (length x width): 22” x 22”

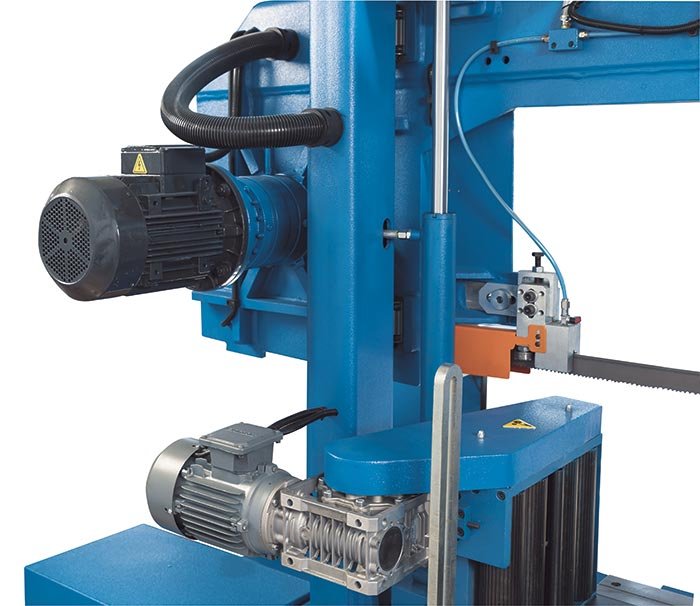

• Drive Capacity Motor rating main drive: 5.4 Hp Motor rating hydraulic pump: 1.5 Hp Motor rating feed: 0.7 Hp
• Motor rating main drive: 5.4 Hp
• Motor rating hydraulic pump: 1.5 Hp
• Motor rating feed: 0.7 Hp
• Measures and Weights Overall dimensions (length x width x height): 138” x 42” x 81” Weight: 4,620 lbs. Blade dimensions: 236.22” x 1.61” x 0.05”
• Overall dimensions (length x width x height): 138” x 42” x 81”
• Weight: 4,620 lbs.
• Blade dimensions: 236.22” x 1.61” x 0.05”
• Options
• 119885 – Bi-Metallic Bandsaw Blade (3/4 T/")
• 103184 – Coolant Concentrate 5 Ltr.
• 119810 – Bi-Metallic Bandsaw Blade ABS450B/HB450/HB560/ABS560C (3/4 T)
• 119811 – Bi-Metallic Bandsaw Blade ABS450B/HB450/HB560/ABS560C (4/6 T)
• 119809 – Bi-Metallic Bandsaw Blade ABS450B/HB450/HB 560/ABS 560C (5/8 T)
• 251877 – 3 meter roller table for ABS 560 L
• 251878 – Chip conveyor for ABS 560 L
• 251879 – Hydraulic blade tentioning for ABS 560 L
• 253719 – Minimum quantity cooling
• 253753 – Laser pointer
• 253899 – Clamping force controlled at operator panel

Specifications

• Manufacturer: Knuth
• SKU: 152771
• Shipping Method: Flatbed
• Weight: 4,820 lb
• Dimensions: 143 × 47 × 86 in
• Country of Origin: Turkey
