Knuth 5.4HP 51” KMT B 1304 NC Motorized Swing-Beam Shear 133652

Knuth 5.4HP 51” KMT B 1304 NC Motorized Swing-Beam Shear 133652 is a Knuth product in the Shears collection.

Product Details

• Working length: 51”
• Cutting angle: 2.4 deg
• Work table height: 33”
• Structural steel plate thickness: 0.031” – 0.157”
• Description
• The KMT B NC series has a powerful, motorized drive that enables high cutting performance up to four sheet thicknesses. But thin sheets can also be cut precisely, as a sheet holding device provides support as standard equipment. The cutting length is positioned by the NC control. The very stable construction with guided cutting blades and robust back gauge meets all requirements of a shear for single and small series production.
• Features
• Solid steel weldment
• PLC back-gauge control with 4.3" touchscreen
• Back gauge with servo drives
• Blades can be rotated and reused
• Pneumatic sheet support device
• Machine Frame and Drive System
• The machine frame is made of a robust steel weldment treated with stress-relief annealing
• An automatic hold-down fixates the plate during cutting
• The double-edged upper and lower knives can be rotated and reused
• Material Support
• The rigid side angle stop simplifies alignment of the plate to the cut line
• Operation and Ergonomics
• The PLC back-gauge control with 4.3" touchscreen features a user-friendly graphic interface for quick and easy programming
• The mobile control unit features a foot switch, so the operator has both hands free

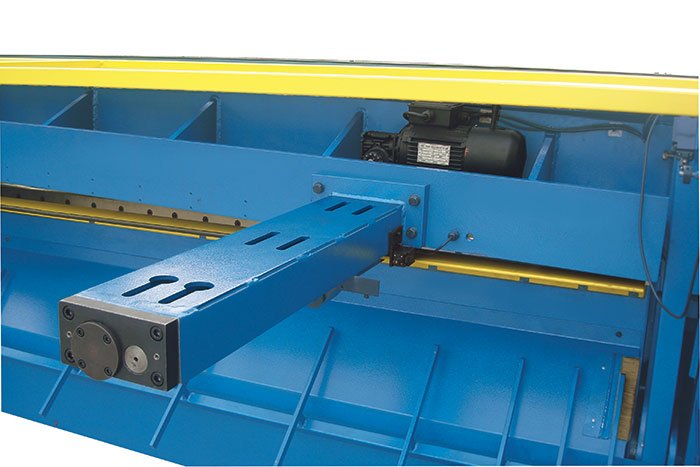

• Back Gauge
• The backgauge is driven by a servo motor, which significantly improves positioning and repeatability accuracy
• A plate hold-up fixture prevents any overhang of the plate in front of the back gauge to ensure maximum accuracy and quality of every cut, even in thin plates
• Support arms are positioned via an air cylinder and lowered in sync with the cutting process
• Standard Equipment
• PLC control
• Work lamp
• Safety guard with power off after open door
• Back gauge with 4.3" touchscreen
• Foot pedal
• Cut-line lighting
• Lateral stop
• Support arms with material support rollers
• Powered rear stop
• Hold-down
• Pneumatic sheet hold-up device
• Safety cover for work area near back gauge
• Operator instructions
• Specifications
• Working area Working length: 51” Cutting angle: 2.4 deg Work table height: 33” Structural steel plate thickness: 0.031” – 0.157” Number of support arms: 5 positions Support arms: 24” Knife length: 53”
• Number of support arms: 5 positions
• Support arms: 24”
• Knife length: 53”
• Back gauge Rear stop: 25”
• Rear stop: 25”
• Drive Capacity Motor rating main drive: 5.4 Hp
• Motor rating main drive: 5.4 Hp
• Measures and Weights Overall dimensions (length x width x height): 69” x 72” x 47” Weight: 2,981 lbs.
• Overall dimensions (length x width x height): 69” x 72” x 47”
• Weight: 2,981 lbs.

Specifications

• Manufacturer: Knuth
• SKU: 133652
• Shipping Method: LTL Freight
• Weight: 3,181 lb
• Dimensions: 74 × 77 × 52 in
• Country of Origin: China
