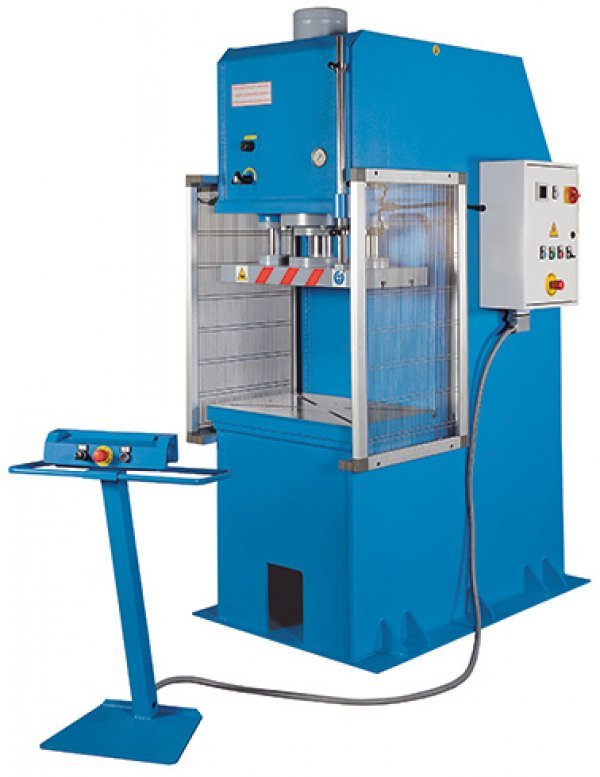

Knuth 5.4HP 165 Ton HPK 150 A C-Frame Hydraulic Press 131510

Knuth 5.4HP 165 Ton HPK 150 A C-Frame Hydraulic Press 131510 is a Knuth product in the C-Frame Presses collection.

Product Details

• Throat: 12”
• Table Dimensions: 35” x 24”
• Pressure Force: 165 t
• Stroke: 19.7”
• HPK-A series are space efficient presses with three-sided access. The machines are completely built in Europe using high quality components from renown suppliers to guarantee a high reliability and lasting value. These models are highly versatile, handling with ease many applications, from punching and straightening to forming and drawing, thus being present in most industry segments. Additionally, Knuth offers tailored solutions based on specific customer requirements.
• Features
• Classic design with c-frame
• Completely built in Europe for high reliability
• Designed for testing or batch production
• Possibility of Industry 4.0 integration
• Customized solution available
• Made in Europe – perfectly welded C-frame steel construction for high rigidity, designed for maximum machine force
• Large ram plates and work tables to ensure large tools or multiple setups
• Hydraulic presses are extremely versatile due to their distance/time flexibility of the stroke

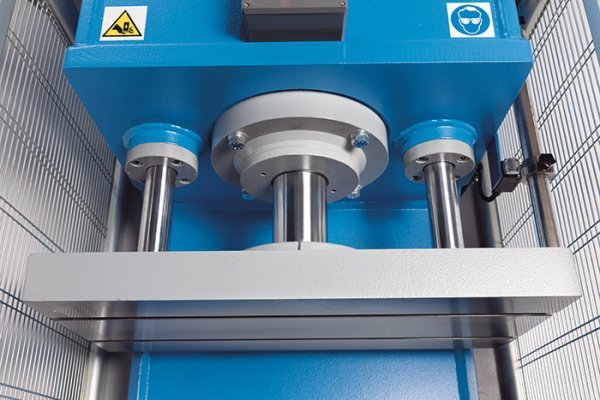

• A powerful hydraulic cylinder and two self-lubricating circular guides ensure precise and uniform feed of the ram plate during press operations
• Precision-machined cylinder surfaces and high-quality seals ensure low wear and long lasting reliability
• Rapid adjustment of stroke length via easy to set stops

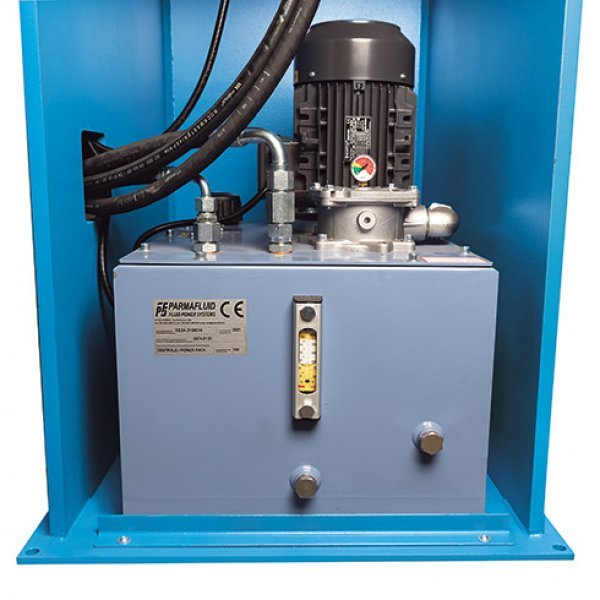

• Space saving hydraulic system located accessibly inside the frame
• 2-step hydraulic pump for fast rapid feeds and optimum stroke speeds
• Ram plate and work table with t-slots for tool clamping
• A mobile control panel provides flexibility, while additional controls are easily accessible integrated in the control cabinet
• All components are made according to strict standards, and the entire construction meets European safety guidelines
• Standard Equipment
• Two-hand control panel
• Adjustable limit stops
• Pressure gauge
• Ram plate with 2 guides and t-slots
• Automatic operation
• Automatic return stroke
• Siemens PLC
• 2-step hydraulic pump with automatic change-over
• Pressure switch
• Operating time timer
• Operator manual
• Specifications
• Working Area Throat: 12” Table Dimensions: 35” x 24” Pressure Force: 165 t Stroke: 19.7” Stroke Speed: 0.12”/s
• Stroke Speed: 0.12”/s
• Rapid Feed: 1”/s
• Drive Capacity Motor Rating: 5.4 HP
• Motor Rating: 5.4 HP
• Measures and Weights Overall Dimensions (L x W x H): 87” x 60” x 119” Weight: 12,100 lbs.
• Overall Dimensions (L x W x H): 87” x 60” x 119”
• Weight: 12,100 lbs.
• Options
• 253855 – Light curtain L = 39.4"
• 253856 – Upgrade to Siemens KTP 700 Basic digital control
• 253858 – Upgrade from 2 to 4 guideways for HPK / KP 150-200 t
• 253859 – Preparation for Industry 4.0
• 253860 – Press stroke counter
• 253861 – Oil cooler with decompression valve
• 253862 – Decompression valve

Specifications

• Manufacturer: Knuth
• SKU: 131510
• Shipping Method: Flatbed
• Weight: 12,200 lb
• Dimensions: 92 × 65 × 124 in
• Country of Origin: Italy
