Knuth 4HP KSR 50 VT Radial Drilling Press 162365

Knuth 4HP KSR 50 VT Radial Drilling Press 162365 is a Knuth product in the Drill Presses collection.

Product Details

• Drilling capacity: 1.97”
• Table set up area: 47” x 20”
• Tapping capacity, steel: M 32 null
• Throat: 25”
• Description
• “Tool to the workpiece” is the motto of the high-speed radial drilling machines of the KSR series. They offer unique flexibility with clamping surfaces for different applications on three machine sides. The KSR VT also has an electronically controlled servo quill feed and a touchscreen operating display, which supports the selection of the correct machining parameters for drilling and thread cutting. The ideal solution for single and small series production, which is often used in maintenance as well as in tool and steel construction.
• Features
• Table, column, male die, and gear head are made of thick-walled high-grade cast-iron and the entire machine structure features high-quality components and precision machined surfaces
• The large work area can be expanded by mounting optional swivel and angle tables for a wide variety of clamping and machining options
• The male die features a low-maintenance, very rigid design and runs smoothly in two large linear roller guideways, allowing exact positioning with minimal effort
• The entire machine is extremely smooth running for effortless operation in a production environment
• Column and male die are equipped with hydraulic clamping fixtures
• Main spindle drive with 2 gear steps, infinitely variable speed in each gear step
• For angular bores, the drill head can be rotated 45° in either direction
• A central lubrication system simplifies maintenance
• Electronically controlled servo quill feed
• A servo-motor provides infinitely variable control of the quill feed
• The depth stop is set electronically with a positioning accuracy of +/- 0.004"

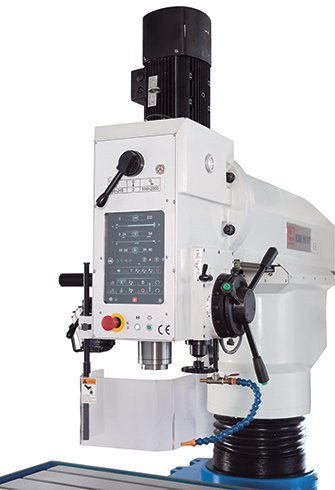

• Improved functionality and improved layout of the large touchscreen display
• All machine functions are controlled and displayed on the touchscreen
• Measuring units for input and display can be selected by the operator (mm or inch)
• In Thread Cutting Mode, the quill will automatically reverse direction upon reaching the selected thread depth
• Various alarm screens warn the operator in case of operational errors and display information on the operational state
• The control software also provides recommendations for rpm and feed in relation to the desired drill size
• The high-performance coolant system is activated at the touchscreen
• Standard Equipment
• Touch screen monitor
• Additional setup areas at the side and rear
• Cube table
• Swiveling horizontal table
• Work lamp
• Coolant system
• Tapping unit
• Reducing sleeves
• Operating tools
• Operator manual
• Specifications
• Working Area Drilling capacity: 1.97” Table set up area: 47” x 20” Tapping capacity, steel: M 32 null Throat: 25” Spindle nose-to-table surface distance: 30” Quill stroke: 8” Column diameter: 9” Head swivel range: ± 90° null Column stroke: 16”
• Spindle nose-to-table surface distance: 30”
• Quill stroke: 8”
• Column diameter: 9”
• Head swivel range: ± 90° null
• Column stroke: 16”
• Travels Upper beam travel: 23”
• Upper beam travel: 23”
• Headstock Spindle mount: 4 MT Spindle speed (infinitely variable): 50 rpm – 2.000 rpm
• Spindle mount: 4 MT
• Spindle speed (infinitely variable): 50 rpm – 2.000 rpm
• Feed Feeds: 0.04”/min – 118.11”/min Feeds-stages: 6
• Feeds: 0.04”/min – 118.11”/min
• Feeds-stages: 6
• Drive Capacity Motor rating main drive: 4 Hp Motor rating hydraulic pump: 0.5 Hp Motor rating height adjustment: 2 Hp Motor rating feed: 1.7 Hp Motor rating coolant pump: 0.1 Hp Supply voltage: 400 V
• Motor rating main drive: 4 Hp
• Motor rating hydraulic pump: 0.5 Hp
• Motor rating height adjustment: 2 Hp
• Motor rating feed: 1.7 Hp
• Motor rating coolant pump: 0.1 Hp
• Supply voltage: 400 V
• Measures and Weights Overall dimensions (length x width x height): 68” x 48” x 89” Weight: 6,028 lbs.
• Overall dimensions (length x width x height): 68” x 48” x 89”
• Weight: 6,028 lbs.
• Options
• 253672 – Set of collets Ø0.2-0.6"
• 253673 – Compound Sliding Tables 25" x 8"
• 103184 – Coolant Concentrate 5 Ltr
• 104594 – Accessory Set for Drilling MT4, 8 pc
• 104713 – Tapping Chuck GSF M6-24/MT4
• 105305 – Deluxe Clamping Tool Set 18/M16
• 105800 – Swivel Hold-Down Clamp Set 125/M16
• 106017 – Compound Sliding Table 33.7×11.6"
• 107615 – Quarter Circle Cutter – set 0.08-0.47"
• 107617 – Quarter Circle Cutter – set 0.24-0.79"
• 108655 – Combo Flat Counter Sink
• 123040 – Power Worker Metal Cutter
• 125032 – UMS 200 Machine Vise

Specifications

• Manufacturer: Knuth
• SKU: 162365
• Shipping Method: LTL Freight
• Weight: 6,228 lb
• Dimensions: 73 × 53 × 94 in
• Country of Origin: China
