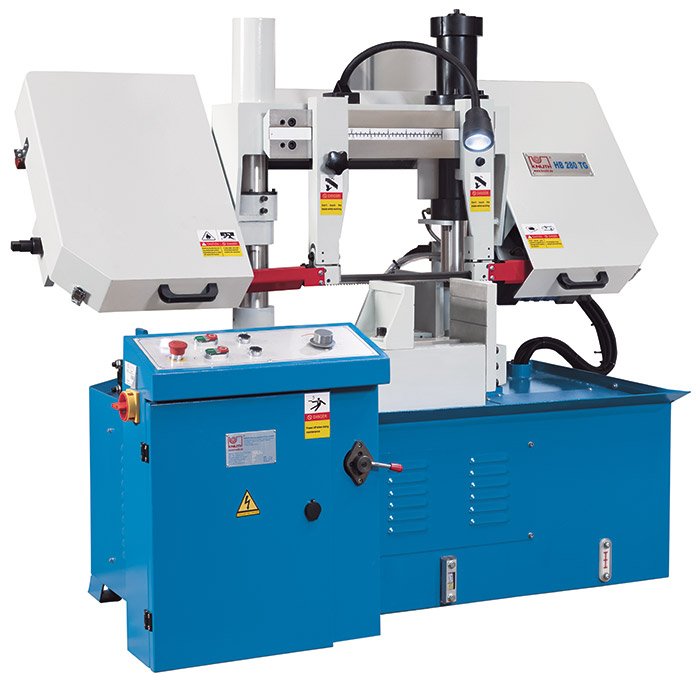

Knuth 4HP HB 280 TG Horizontal Band Saw 152827

Knuth 4HP HB 280 TG Horizontal Band Saw 152827 is a Knuth product in the Band Saws collection.

Product Details

• Cutting speed: 1063, 1772, 2717 fpm
• Working height: 27”
• Motor rating hydraulic pump: 0.7 Hp
• Blade dimensions: 142.72” x 0.04” x 1.06”
• Description
• The band saw of the HB TG series is ideal for workshops and production. The saw frame of the torsion-resistant dual column construction can be swiveled up to 45 degrees for precise miter cuts. The hydraulic vise reliably ensures constant workpiece clamping, eases operator workload, and reduces non-productive time. The saw frame feed can also be continuously regulated via a hydraulic valve and adjusted during processing. A coolant device and a material support stand are part of the standard accessories.
• Features
• The machine frame is designed as a torsion-resistant dual-column construction for maximum stability and accuracy
• A user-friendly control panel with intuitive user controls is integrated into the control cabinet
• Hydraulically controlled saw blade feed allows exact feed adjustments
• At the end of each sawing cycle, the saw blade frame will return to the home position
• A hydraulically tensioned vise ensures reliable workpiece fixation
• Rigid saw blade guides are easily adjustable
• A high-performance coolant system and a mobile workpiece support base are part of the standard equipment
• Standard Equipment
• Bimetallic band saw blade
• Hydraulic vise
• Work lamp
• Coolant system
• Material support base with roller
• Operating tools
• Operator manual
• Specifications
• Cutting Capacities Cutting capacity 0° Round: 11” Square: 11” Flat (length x width): 13” x 11” Cutting capacity 30° Round: 10” Square: 10” Flat (length x width): 10” x 11” Cutting capacity 45° Round: 7” Square: 7” Flat (length x width): 7” x 11” Cutting speed: 1063, 1772, 2717 fpm Working height: 27”
• Cutting capacity 0° Round: 11” Square: 11” Flat (length x width): 13” x 11”
• Round: 11”
• Square: 11”
• Flat (length x width): 13” x 11”
• Cutting capacity 30° Round: 10” Square: 10” Flat (length x width): 10” x 11”
• Round: 10”
• Square: 10”
• Flat (length x width): 10” x 11”
• Cutting capacity 45° Round: 7” Square: 7” Flat (length x width): 7” x 11”
• Round: 7”
• Square: 7”
• Flat (length x width): 7” x 11”
• Drive Capacity Motor rating main drive: 4 Hp Motor rating hydraulic pump: 0.7 Hp Motor rating coolant pump: 0.1 Hp
• Motor rating main drive: 4 Hp
• Motor rating coolant pump: 0.1 Hp
• Measures and Weights Overall dimensions (length x width x height): 85” x 52” x 63” Weight: 1,804 lbs. Blade dimensions: 142.72” x 0.04” x 1.06”
• Overall dimensions (length x width x height): 85” x 52” x 63”
• Weight: 1,804 lbs.
• Optional
• 103184 – Coolant Concentrate 5 Ltr

Specifications

• Manufacturer: Knuth
• SKU: 152827
• Shipping Method: LTL Freight
• Weight: 2,004 lb
• Dimensions: 90 × 57 × 68 in
• Country of Origin: China
