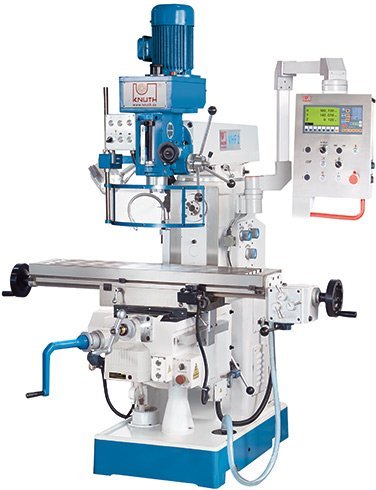

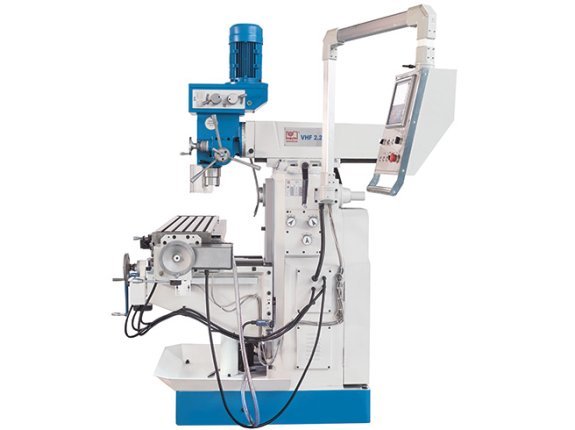

Knuth 3HP VHF 2.2 Universal Milling Machine with Vertical Tilting Head 362651

Knuth 3HP VHF 2.2 Universal Milling Machine with Vertical Tilting Head 362651 is a Knuth product in the Milling Machines collection.

Product Details

• Table set up area: 50” x 11”
• Table load capacity (max.): 330 lbs.
• Motor rating horizontal spindle: 3 Hp
• Motor rating vertical spindle: 1.1 Hp – 2 Hp
• Description
• VHF series machines feature large travels and a vertical and horizontal spindle with separate drives for powerful machining. The vertical head swivels out (±45°) and the quill is movable. All models of this series are ideally suited for applications in repair shops or training shops.
• Features
• This excellent price/performance ratio is made possible by high volume production with standardized VHF assemblies
• Extremely rigid machine bed made of high-strength cast-iron with heavy ribbing
• Precision-ground guideways with hardened surfaces for long term accuracy and wear resistance
• The milling table features a large setup area
• Vertical and horizontal spindles each have a separate drive with gearbox for maximum machining power
• The vertical head swivels to both sides (± 45°), quill feed through capstan or with fine feed hand wheel
• When working with the horizontal spindle, the complete top beam/head assembly can be rotated ±180° on the column
• Standard outer arbor support with bronze plain bearings accommodates long milling arbors in the horizontal spindle
• Feed system with manual gearbox on X-axis and infinitely variable feed unit on the Y-axis
• Height adjustment of the work table via automatic feed – precision feed via smooth hand rank
• Swiveling control panel with integrated position indicator for maximum operator comfort
• Coolant system and chip tray are included
• Standard Equipment
• 3-axis position indicator
• Coolant system
• Work lamp
• Operating tools
• Operator instructions
• M16 draw bar
• Outer arbor support for horizontal milling
• Chip tray
• Cutter arbor Ø 1"
• Specifications
• Working Area Table set up area: 50” x 11” Tapping capacity, steel: M 16 Table load capacity (max.): 330 lbs. Drilling capacity in steel: 1” Max. end mill diameter: 1” Max. end face mill diameter: 3.9”
• Tapping capacity, steel: M 16
• Drilling capacity in steel: 1”
• Max. end mill diameter: 1”
• Max. end face mill diameter: 3.9”
• Travels Travel X-axis: 27.6” Travel Y-axis: 8” Travel Z-axis: 12”
• Travel X-axis: 27.6”
• Travel Y-axis: 8”
• Travel Z-axis: 12”
• Vertical Milling Head Spindle speed (vertical): 115 rpm – 1750 rpm Throat: 8” – 26” Milling head swivel range: 45 deg Spindle speed (vertical)-stages: 8 Spindle mount: ISO 40 Quill stroke: 5” Spindle nose-to-table surface distance: 2” – 15”
• Spindle speed (vertical): 115 rpm – 1750 rpm
• Throat: 8” – 26”
• Milling head swivel range: 45 deg
• Spindle speed (vertical)-stages: 8
• Spindle mount: ISO 40
• Quill stroke: 5”
• Spindle nose-to-table surface distance: 2” – 15”
• Rapid Feed Rapid feed Z-axis: 14.96”/min
• Rapid feed Z-axis: 14.96”/min
• Horizontal Milling Spindle Spindle speed (horizontal)-stages: 12 Spindle speed (horizontal): 40 rpm – 1300 rpm Spindle mount: ISO 40 Horizontal spindle-to-table surface distance: 0” – 12”
• Spindle speed (horizontal)-stages: 12
• Spindle speed (horizontal): 40 rpm – 1300 rpm
• Horizontal spindle-to-table surface distance: 0” – 12”
• Feed Feed speed X-axis: 0.6299”/min – 14.9606”/min Feed speed Y-axis: 0”/min – 28”/min
• Feed speed X-axis: 0.6299”/min – 14.9606”/min
• Feed speed Y-axis: 0”/min – 28”/min
• Drive Capacity Motor rating horizontal spindle: 3 Hp Motor rating vertical spindle: 1.1 Hp – 2 Hp
• Measures and Weights Overall dimensions (length x width x height): 67” x 58” x 97” Weight: 3,080 lbs.
• Overall dimensions (length x width x height): 67” x 58” x 97”
• Weight: 3,080 lbs.
• Options
• 103184 – Coolant Concentrate 5 Ltr.
• 103330 – Pivoted Mounts LK 3
• 103404 – Universal Facing / Lathe Bore Head ADA / SK40
• 103720 – Adapter SK 40 / MT 2
• 103900 – Shell End Milling Arbor Ø22 SK 40
• 103730 – Adapter SK 40 / MT 3
• 103740 – Adapter SK 40 / MT 4
• 103750 – Reduction Sleeve SK 40 / SK 30
• 103895 – Shell End Milling Arbor Ø16 SK 40
• 103905 – Shell End Milling Arbor Ø27 SK 40
• 103910 – Shell End Milling Arbor Ø32 SK 40
• 103915 – Shell End Milling Arbor Ø40 SK 40
• 104320 – Collet Chuck SK 40
• 104596 – Accessory-Set ISO 40 5-pc.
• 104765 – Keyless Drill Chuck 0.04-0.5 in B 16
• 104770 – Keyless Drill Chuck 0.12-0.63 in B 18
• 104780 – Drill Chuck Arbors ISO 40 / B 16
• 104781 – Drill Chuck Arbors ISO 40 / B 18
• 104918 – Machine vise with pull-down system NZM 125
• 104955 – MS 125 Machine Vise
• 105295 – Clamping Tool Set De Luxe 14/M12
• 105340 – Step of Step Blocks
• 105355 – Stud Bolt Set, and T-Slot Nuts 14/M12
• 105790 – Swivel Hold-Down Clamp Set 100/M12
• 106052 – ER 32 Collet Set 6 pcs.
• 106056 – ER 32 Collet Chuck / Mount ISO 40
• 106062 – ER 40 Collet Chuck / Mount ISO 40
• 106075 – ER 40 Collet Set 15 pcs.
• 106801 – Milling Chuck WELDON ISO 40 / Ø 0.24 in
• 106802 – Milling Chuck WELDON ISO 40 / Ø 0.3 in
• 106803 – Milling Chuck WELDON ISO 40 / Ø 0.4 in
• 106806 – Milling Chuck WELDON ISO 40 / Ø 0.78 in
• 106807 – Milling Chuck WELDON ISO 40 / Ø 1 in
• 106808 – Milling Chuck WELDON ISO 40 / Ø 1.26 in
• 107800 – Indexable Insert End Mills Set 0.98 in
• 106804 – Milling Chuck WELDON ISO 40 / Ø 0.47 in
• 106805 – Milling Chuck WELDON ISO 40 / Ø 0.63 in
• 108400 – Roughing End Mill Cutter 40
• 108401 – Roughing End Mill Cutter 50
• 108402 – Roughing End Mill Cutter 63
• 108403 – Roughing End Mill Cutter 80
• 108445 – Roughing Shank Cutter 10 pcs.
• 108631 – Lathe Bore Head with Boring Bar Set 2 in 9 pcs.
• 108633 – Lathe Bore Head with Boring Bar Set 3 in 12 pcs.
• 108637 – Mounting Shaft ISO 40
• 108930 – Assembly Stand
• 110953 – Dividing head HT
• 110960 – Divider ST 130
• 110970 – Optional Accessory Set / ST 130
• 125012 – PMS 100
• 125024 – HS 125 Hydraulic Machine Vise
• 125805 – INDEX-feature / RT 160-320
• 125835 – Rotary Table RT 200
• 128961 – Corrugated Parallels 1-1.5 in
• 128960 – Corrugated Parallel Parts 0.4-0.9 in

Specifications

• Manufacturer: Knuth
• SKU: 362651
• Shipping Method: Flatbed
• Weight: 3,280 lb
• Dimensions: 72 × 63 × 102 in
• Country of Origin: China
