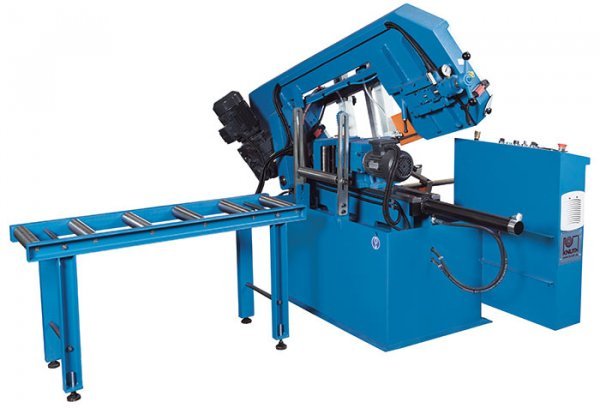

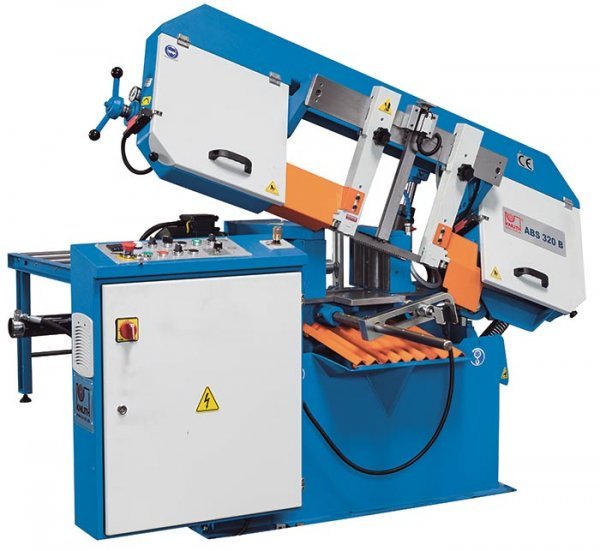

Knuth 3HP 47″ ABS 320 B Fully Automatic Band Saw 152755

Knuth 3HP 47″ ABS 320 B Fully Automatic Band Saw 152755 is a Knuth product in the Band Saws collection.

Product Details

• Cutting Speed: 65.4 fpm – 327 fpm
• Round Capacity at 0°: 13"
• Square Capacity at 0°: 12"
• 5 Year Parts Warranty
• Description
• The ABS 320 B is a fully automatic band saw designed for maximum reliability. The model impresses with high-quality components and a heavy, solid machine frame. The automatic feed via driven rollers in the clamping jaws enables continuous operation, perfect for single piece and series production. This inexpensive and study production solution is very popular due to its high efficiency and ease of use. After more than 15 years it is still one of the best-selling KNUTH band saws.
• Features
• Saw frame and machine bed are made of premium cast-iron for torsion-free performance even under maximum loads
• New helical gears ensure above-average service life and low maintenance
• Saw frame feed and cutting speed are infinitely variable
• Reliable roller feed system with hydraulic workpiece clamping
• Automatic adjustment of cutting height

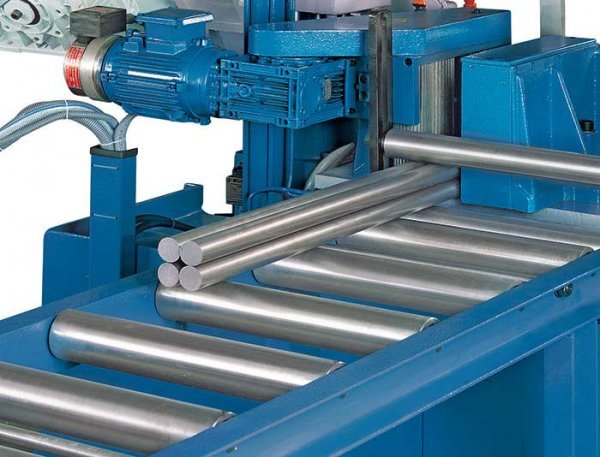

• A bundle vise is provided for cutting entire material packs to length
• Roller material feed vise for fully automatic operation
• Height adjustment with switch to speed up the cutting process
• Workpiece counter to facilitate continuous production
• Manual top vise for bundle cutting
• Standard Equipment
• Automatic band break control
• Bundle vise
• Coolant system
• Operating tools
• Saw-band
• Chip wiper
• Feed roller table: 47”
• Hydraulic part clamping
• Operator instructions
• Specifications
• Working Area Roller guide length: 47” Feed rollers: 6 positions
• Roller guide length: 47”
• Feed rollers: 6 positions
• Cutting Capacities Cutting capacity 0° Round: 13” Square: 12” Flat (length x width): 13” x 8” Cutting speed: 65.4 fpm – 327 fpm Stop length: 20” Accuracy of the feeding: 0.02”
• Cutting capacity 0° Round: 13” Square: 12” Flat (length x width): 13” x 8”
• Round: 13”
• Square: 12”
• Flat (length x width): 13” x 8”
• Stop length: 20”
• Accuracy of the feeding: 0.02”
• Drive Capacity Motor rating main drive: 3HP Motor rating hydraulic pump: 0.5HP Motor rating feed: 0.3HP Motor rating coolant pump: 0.2HP
• Motor rating main drive: 3HP
• Motor rating hydraulic pump: 0.5HP
• Motor rating feed: 0.3HP
• Motor rating coolant pump: 0.2HP
• Measures and Weight Overall dimensions: 73”L x 34”W x 50”H Weight: 1,452 lbs Blade dimensions: 144.09” x 1.06” x 0.04”
• Overall dimensions: 73”L x 34”W x 50”H
• Weight: 1,452 lbs
• Blade dimensions: 144.09” x 1.06” x 0.04”
• Optional Equipment
• 251888 – 3 meter roller table for ABS 320 B
• 251889 – Chip conveyor for ABS 320 B
• 103184 – Coolant concentrate 5 Liter
• 253894 – Hydraulic saw blade tensioning for ABS 320 B
• 253851 – Micro spray cooling system for Bad Saws 280-380
• 253753 – Laser pointer
• 253899 – Clamping force controlled at operator panel

Specifications

• Manufacturer: Knuth
• SKU: 152755
• Shipping Method: LTL Freight
• Weight: 1,452 lb
• Dimensions: 73 × 34 × 50 in
• Country of Origin: Germany
• Warranty: 5 Years (Parts)
