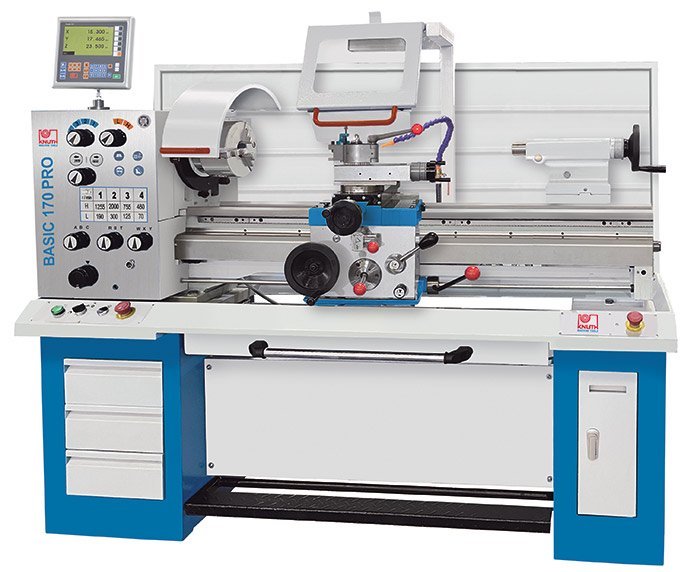

Knuth 2HP Basic 170 Super Pro Universal Lathe 300814

Knuth 2HP Basic 170 Super Pro Universal Lathe 300814 is a Knuth product in the Lathes collection.

Product Details

• Center height: 7”
• Turning-Ø over support: 9”
• Bed width: 7”
• Center width: 39.37”
• Description
• For many years the Basic series has been the reliable mechanic’s lathes that have been used in countless workshops and training centers. The new PRO version offers improved performance and ergonomics, more standard equipment, and improved design to meet the demands of today’s users.
• Features
• The fully equipped Basic PRO with its modern ergonomic design meets all requirements for universal applications in the areas of repairs, training, and production
• The lathe bed is made of high-quality cast-iron for maximum stability and rigidity
• All gears, transmission shafts, and guideways are hardened and ground to guarantee very quiet operation and long tool life
• Wide guideways are hardened and ground to reduce wear and allow readjustments for long-term accuracy
• Readjustable spindle bearings ensure high precision and low wear for a long service life
• Gears and apron run in an enclosed oil bath for low maintenance
• Safety interlock to prevent simultaneous operation of lead screw and feed shaft feed
• Stainless steel covers on lead screw and feed shaft ensure safety without the usual restrictions, while also preventing contamination and early wear
• The tailstock can easily be positioned on the machine bed and moved sideways for taper turning
• High-performance coolant system is included
• The machine base features ample storage space for accessories and tools, including a chip tray that can be removed at front
• The X.Pos position indicator provides easy to program auxiliary functions
• 3-Axis Position Indicator X.Pos 3.2
• Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
• It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
• Optische Maßstäbe: 5 μm Auflösung (0,005 mm) mit Außenabdeckung aus Aluminium zum Schutz vor Öl, Kühlmittel und Spänen
• Basic Functions Auflösung 0,005 mm Unit measurement conversion Inch / Metric Setting / Reseting current position Coordinate display switching ABS / INC Radius / Diameter display Z1/Z2 Axes summing Pocket calculator functions
• Auflösung 0,005 mm
• Unit measurement conversion Inch / Metric
• Setting / Reseting current position
• Coordinate display switching ABS / INC
• Radius / Diameter display
• Z1/Z2 Axes summing
• Pocket calculator functions
• Extended Functions Axis position is maintained when display is turned off Hole circle pattern calculation Radius / diameter toggle Reference function for tool gauging Taper turning function
• Axis position is maintained when display is turned off
• Hole circle pattern calculation
• Radius / diameter toggle
• Reference function for tool gauging
• Taper turning function
• Standard Equipment
• 3-axis position indicator
• 3-jaw chuck 7"
• 4-jaw face plate chuck Ø 8"
• Face plate Ø 11"
• Quick change tool holder head
• Quick change tool holder
• Coolant system
• Micrometer bed stop
• Steady and follow rests
• Fixed splash guard (wall)
• Chuck guard
• Foot brake pedal
• Work light
• Reducing sleeve
• Dead center
• Chip tray
• Traveling cover for the toolpost
• Fixed safety cover made of stainless steel for feed shaft and leadscrew
• Toolbox with operating tools
• Operator instructions
• Specifications
• Working Area Center height: 7” Turning-Ø over support: 9” Bed width: 7” Center width: 39.37” In-gap diameter over bed: 14”
• In-gap diameter over bed: 14”
• Travels Travel X-axis: 7.3” Travel Z1-axis: 4”
• Travel X-axis: 7.3”
• Travel Z1-axis: 4”
• Headstock Spindle mount: Camlock D1-5 Spindle speed: 70 rpm – 2.000 rpm Spindle bore: 2” Spindle taper: 6 MT
• Spindle mount: Camlock D1-5
• Spindle speed: 70 rpm – 2.000 rpm
• Spindle bore: 2”
• Spindle taper: 6 MT
• Feed Feed X-axis: 0.00115”/R – 0.08012”/R Feed Z-axis: 0.0016”/R – 0.11189”/R
• Feed X-axis: 0.00115”/R – 0.08012”/R
• Feed Z-axis: 0.0016”/R – 0.11189”/R
• Tapping Threading, metric: 0.2 mm – 14 mm Tapping, diametric: 8 DP – 56 DP Threading, withworth: 2 TPI – 56 TPI Threading, module: 0.2 MP – 3.5 MP
• Threading, metric: 0.2 mm – 14 mm
• Tapping, diametric: 8 DP – 56 DP
• Threading, withworth: 2 TPI – 56 TPI
• Threading, module: 0.2 MP – 3.5 MP
• Tailstock Tailstock taper: 3 MT Tailstock quill stroke: 5” Tailstock quill diameter: 2”
• Tailstock taper: 3 MT
• Tailstock quill stroke: 5”
• Tailstock quill diameter: 2”
• Drive Capacity Motor rating main drive: 2 Hp
• Motor rating main drive: 2 Hp
• Measures and Weights Overall dimensions (length x width x height): 75” x 30” x 63” Weight: 1,430 lbs.
• Overall dimensions (length x width x height): 75” x 30” x 63”
• Weight: 1,430 lbs.
• Options
• 103020 – Quick-Set Spindle Bore Stop Size 6 1.8-2.3 in
• 103184 – Coolant Concentrate 5 Ltr.
• 103330 – Pivoted Mounts LK 3
• 106785 – Live Centers, assortment MT 3
• 108796 – Mechanical Clamping (Clamping: 3 in 1)
• 129020 – Analog Dial Gauge
• 103815 – Reduction sleeve MT 3/2
• 104593 – Accessory set for drilling MT3, 7-pc
• 104665 – Extension sleeve MT 3/4
• 104739 – Tool holder bit MT3/B16
• 106750 – Live center MT 3
• 108344 – Measuring tool set M5
• 108520 – Knurl holder
• 108700 – Turning tool set 8pcs, 0.78"
• 108800 – Mechanical clamping
• 108810 – Hydraulic measuring tripod
• 127011 – Dial digital 0-0.5"
• 127422 – Dial holder
• 129030 – Dial caliper 6"

Specifications

• Manufacturer: Knuth
• SKU: 300814
• Shipping Method: LTL Freight
• Weight: 1,630 lb
• Dimensions: 80 × 35 × 68 in
• Country of Origin: China
