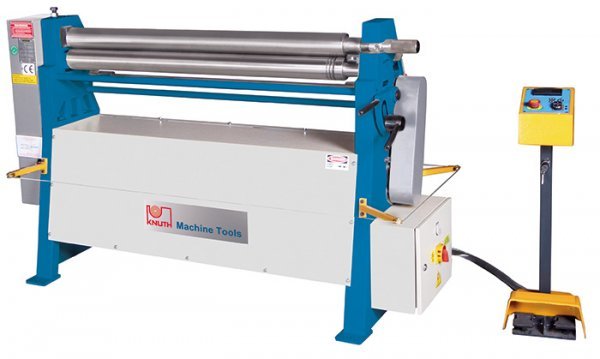

Knuth 2HP 81” KRM AT 20/1.5 Plate Rolling Machine 131973

Knuth 2HP 81” KRM AT 20/1.5 Plate Rolling Machine 131973 is a Knuth product in the Plate Roll collection.

Product Details

• Plate Thickness (max.): 0.06”
• Working Length: 81”
• Roll Diameter: 4”
• Roller Speed: 19.62 fpm
• Description
• All machines in this series feature asymmetrical rolls. This geometry provides optimum traction even with thin metal sheets in the stretch-bending phase for high-precision bending. The rear roll is fed manually. The upper roll swivels outward for easy removal of tube-shaped bent workpieces.
• Features
• Asymmetrical structure
• Main motor with brakes
• Hardened rollers with wire insertion grooves
• Conical bender
• 3-roller roll bender with asymmetrically positioned rollers
• Rigid machine frame made of ductile cast-iron
• Hardened rollers, suitable for stainless steel
• Main motor with brake system for exact bending
• Pull-out top roller with eccentric lock for easy workpiece removal
• Bottom and rear rollers include wire insertion grooves (standard equipment)
• Conical bending feature is included in standard equipment
• Manual feed or rear roller
• Mobile control panel with foot switch for left/right rotation
• Standard Equipment
• Conical bending feature
• Hardened rollers
• Wire insertion groove
• Operator instructions
• Emergency stop lanyard
• Separate control panel with foot switch
• Side enclosure
• Specifications
• Working Area Plate Thickness (max.): 0.06” Stainless Steel: 0.039” Conical Bending: 0.039” Working Length: 81” Roll Diameter: 4” Roller Speed: 19.62 fpm Wire Grooves Diameter: 4/6/9”
• Plate Thickness (max.): 0.06” Stainless Steel: 0.039” Conical Bending: 0.039”
• Stainless Steel: 0.039”
• Conical Bending: 0.039”
• Wire Grooves Diameter: 4/6/9”
• Drive Capacity Motor Rating Main Drive: 2 HP
• Motor Rating Main Drive: 2 HP
• Measures and Weights Overall Dimensions (L x W x H): 104” x 28” x 48” Weight: 1,573 lbs.
• Overall Dimensions (L x W x H): 104” x 28” x 48”
• Weight: 1,573 lbs.
• Options
• 253979 – Digital readout for rear roller adjustment for KRM AT
• 253980 – Motorized rear roller adjustment for KRM AT

Specifications

• Manufacturer: Knuth
• SKU: 131973
• Shipping Method: Flatbed
• Weight: 1,673 lb
• Dimensions: 109 × 33 × 53 in
• Country of Origin: Turkey
