Knuth 23V/27V BO T 130 L CNC Drill Unit 100083

Knuth 23V/27V BO T 130 L CNC Drill Unit 100083 is a Knuth product in the Milling Machines collection.

Product Details

• Travel X-axis: 63”
• Travel Y-axis: 47”
• Drilling capacity: 1.97”
• Counterbore diameter (max.): 10”
• Description

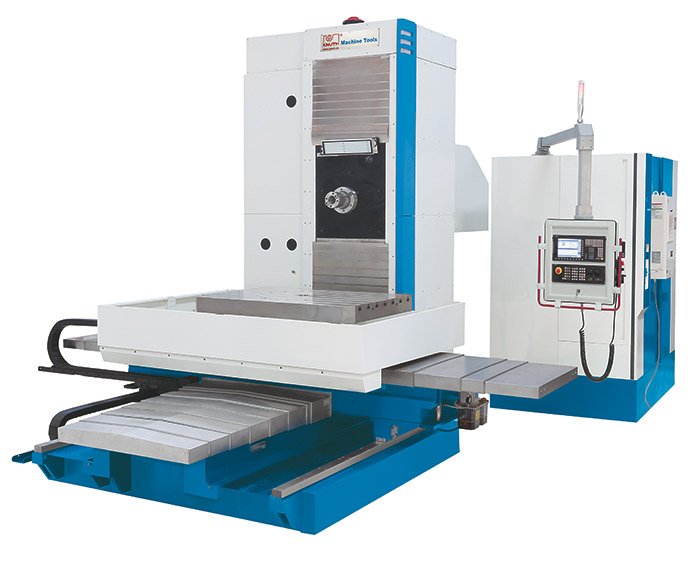

• The machines of the BO 130 CNC series are large milling and boring mills that are designed for heavy-duty machining of large and heavy workpieces. The powerful Siemens 828D CNC control and the rotary table for multi-sided machining of workpieces in one clamping offer solutions for a wider range of milling and drilling work.
• Features

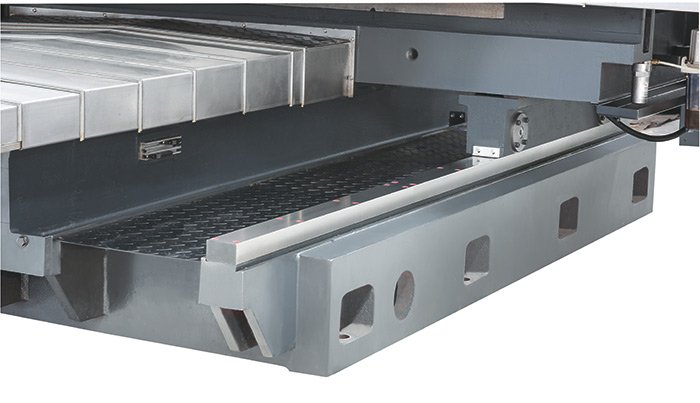

• The large, heavily ribbed box-column base is made of premium cast-iron to ensure stability and rigidity even under very heavy machining loads
• The massive machine frame features wide guideways and is designed for table loads up to 5.5 tons
• The CNC work table indexing in 5° steps allows flexible 4-sided complete machining of the workpiece without retooling
• The powerful motor ensures constant torque across the entire infinitely variable speed range
• The Siemens 828D CNC-ensures high productivity and precision during production
• Excellent functional interaction between hardware and software ensures high dynamics, while motors and drive technologies provide the necessary precision
• Telescoping stainless steel covers protect the guides from chips and dirt
• Precision preloaded ball screws in all axes ensure high accuracy with low wear and maintenance
• Easy maintenance due to standard central lubrication system
• Optionally the machine can be equipped with a tool changer
• Standard Equipment
• Siemens 828D control
• Electronic hand-wheel
• 5° indexing CNC work table
• RS-232 interface
• Work lamp
• Central lubrication
• Coolant system
• Operator manual
• Specifications
• Working Area Drilling capacity: 1.97” Counterbore diameter (max.): 10” Table set up area: 53” x 39” Table load capacity: 11,000 lbs. Spindle center-to-table distance: 0” – 47” Number of T-slots: 7 positions T-slots, width: 0.9” T-slots, spacing: 4.9” Table indexing: 5°
• Table set up area: 53” x 39”
• Table load capacity: 11,000 lbs.
• Spindle center-to-table distance: 0” – 47”
• Number of T-slots: 7 positions
• T-slots, width: 0.9”
• T-slots, spacing: 4.9”
• Table indexing: 5°
• Travels Travel X-axis: 63” Travel Y-axis: 47” Travel Z-axis: 47” Travel W-axis: 22”
• Travel Z-axis: 47”
• Travel W-axis: 22”
• Headstock Speed range-stages: 2 Speed range: 12 rpm – 1.200 rpm Spindle diameter: 5” Spindle torque (max.): 1,106 ft.lb. Spindle mount: BT 50 Facing slide speed: 4 rpm – 125 rpm
• Speed range-stages: 2
• Speed range: 12 rpm – 1.200 rpm
• Spindle diameter: 5”
• Spindle torque (max.): 1,106 ft.lb.
• Spindle mount: BT 50
• Facing slide speed: 4 rpm – 125 rpm
• Rapid Feed Rapid feed X-axis: 393.7”/min Rapid feed Y-axis: 393.7”/min Rapid feed Z-axis: 393.7”/min Rapid feed W-axis: 197”/min Rapid feed B-axis: 0.22”/min
• Rapid feed X-axis: 393.7”/min
• Rapid feed Y-axis: 393.7”/min
• Rapid feed Z-axis: 393.7”/min
• Rapid feed W-axis: 197”/min
• Rapid feed B-axis: 0.22”/min
• Feed Feed X-axis: 0”/min – 79”/min Feed Y-axis: 0”/min – 79”/min Feed Z-axis: 0”/min – 79”/min Feed W-axis: 0”/min – 79”/min
• Feed X-axis: 0”/min – 79”/min
• Feed Y-axis: 0”/min – 79”/min
• Feed Z-axis: 0”/min – 79”/min
• Feed W-axis: 0”/min – 79”/min
• Accuracies Positioning accuracy X-axis: 0.00157” Positioning accuracy Y-axis: 0.00157” Positioning accuracy W-axis: 0.00157” Positioning accuracy Z-axis: 0.00157” Repeatability X-axis: 0.00079” Repeatability Y-axis: 0.00079” Repeatability T-axis: 0.00079” Repeatability W-axis: 0.00079” Work table rotation accuracy: 10” Work table repeatability: 4”
• Positioning accuracy X-axis: 0.00157”
• Positioning accuracy Y-axis: 0.00157”
• Positioning accuracy W-axis: 0.00157”
• Positioning accuracy Z-axis: 0.00157”
• Repeatability X-axis: 0.00079”
• Repeatability Y-axis: 0.00079”
• Repeatability T-axis: 0.00079”
• Repeatability W-axis: 0.00079”
• Work table rotation accuracy: 10”
• Work table repeatability: 4”
• Drive Capacity Main motor rating: 23 / 27 Hp
• Main motor rating: 23 / 27 Hp
• Measures and Weights Overall dimensions (L x W x H): 280” x 276” x 142” Weight: 40,700 lbs.
• Overall dimensions (L x W x H): 280” x 276” x 142”
• Weight: 40,700 lbs.
• Options
• 253427 – Arm-type automatic tool changer, 24 tools, for BO T 130 (L) CNC
• 253429 – 1° indexing work table for BO T 130 (L) CNC
• 253430 – 0.001° indexing work table for BO T 130 (L) CNC
• 253431 – Increased Y-axis travel by 16 inches
• Optional Accessories
• 270307 – E.T. Box LAN
• 270308 – E.T. Box WIFI
• 270309 – E.T. Box W4G
• 103954 – Shell End Milling Arbor BT50x40
• 103955 – Shell End Milling Arbor BT50x50
• 104204 – Collet Chuck, MAS BT50-ER32
• 104205 – Collet Chuck, MAS BT50-ER40
• 104765 – Keyless Drill Chuck 0.04-0.5in B16
• 104770 – Keyless Drill Chuck 0.12-0.63in B18
• 106052 – ER 32 Collet Set 6 pcs
• 106075 – ER 40 Collet Set 15 pcs
• 123040 – Power Worker Metal Cutter
• 193225 – Weldon MAS-BT 50, Ø 0.23 x 2.48"
• 193226 – Weldon MAS-BT 50, Ø 0.315 x 2.48"
• 193227 – Weldon MAS-BT 50, Ø 0.393 x 2.48"
• 193228 – Weldon MAS-BT 50, Ø 0.472 x 3.15"
• 193229 – Weldon MAS-BT 50, Ø 0.551 x 3.15"
• 193230 – Weldon MAS-BT 50, Ø 0.63 x 3.15"
• 193231 – Weldon MAS-BT 50, Ø 0.781 x 3.15"
• 193232 – Weldon MAS-BT 50, Ø 0.984 x 3.94"
• 193233 – Weldon MAS-BT 50, Ø 1.26 x 4.13"
• 193234 – Weldon MAS-BT 50, Ø 1.57 x 4.53"
• 193608 – Draw bolts BT 50, 45° without bore
