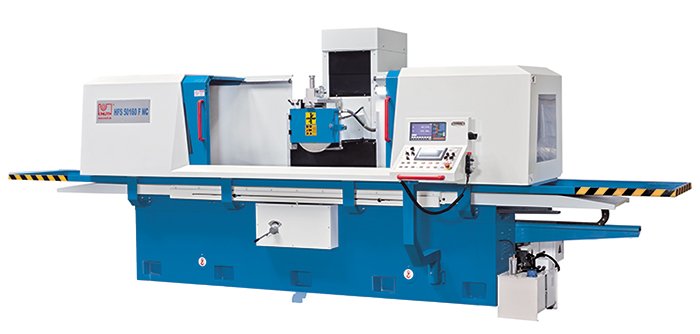

Knuth 10.1HP HFS F 50100 NC Surface Grinding Machine 124934

Knuth 10.1HP HFS F 50100 NC Surface Grinding Machine 124934 is a Knuth product in the Grinding & Sanding collection.

Product Details

• Spindle center-to-table distance: 24”
• Table load capacity (max.): 1,540 lbs.
• Travel X-axis: 39.4”
• Travel Y-axis: 20”
• Description
• This series of surface grinders processes large and heavy workpieces with tolerances as required for precision surface grinding or for the preparatory processing step of lapping or polishing. The machine frame is designed in a cross-bed design with a movable column. This construction enables a long table guidance and thus the optimal introduction of weight force over the entire work area. The ability to switch between automatic or manual operation extends the scope for sample production, repair, and training.
• Features
• The massive, heavily ribbed cross-bed machine frame with traversing column and horizontal spindle is extremely rigid even under heaviest workpiece loads
• The large work area allows machining of single workpieces with large surface areas or machining of several workpieces in one setup
• The workspace is protected by an easily accessible enclosure
• A high-performance cooling system is included in the standard equipment of this series
• Moving column design for maximum stability
• Enclosed working space
• Siemens smart line PLC control with grinding cycles
• NC controlled Y-/Z-axes driven by servo motors
• User friendly HMI with touchscreen
• Electronic hand wheel for Y-/Z-axes
• Control
• Grinding cycles for automatic face and groove grinding are accessible and editable via touchscreen
• Preloaded ball screws and powerful servo-motors on Y and X ensure high precision and repeatability during grinding wheel feeds
• An electronic hand-wheel for Y- and Z-axis simplifies setup and manual positioning of the grinding spindle
• If set to Auto mode, the user-defined roughing and finishing parameters, number of spark-out strokes, and return to zero are automatically processed

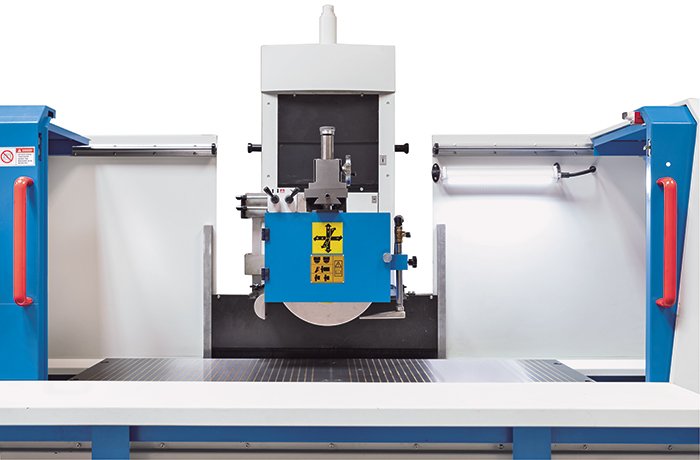

• Grinding spindle
• Large grinding spindle, dynamically balanced, completely sealed with permanent lubrication
• Preloaded precision-bearings ensure maximum grinding performance and high reliability over many production hours
• Hydraulics
• Superior quiet operation and low heat build-up ensure optimum work results in continuous operations
• The hydraulic linear table feed is infinitely variable, maintains a constant speed with smooth travel direction reversals
• The external hydraulics unit with oil cooler ensures perfect temperature stability
• Magnetic clamping plate
• Large magnetic chucks for torsion-free clamping across the entire work surface are included in the standard equipment
• The modern control also ensures reliable operation with firm holding forces and high-grade degaussing
• Standard Equipment
• 2-axis position indicator
• Electronic hand-wheel Y/Z axis
• Grinding wheel flange
• Workspace enclosure
• Coolant system
• Grinding wheel dresser (without dressing diamond)
• Balancing station
• Balancing shaft
• LED work lamp
• Adjustment screws
• Operating tools
• Operator manual
• Siemens PLC with touchscreen
• Grinding wheel
• Automatic central lubrication
• Specifications
• Working Area Spindle center-to-table distance: 24” Table dimensions: 20” x 39” Dimensions magnetic clamping plate: 20” x 39” Table load capacity (max.): 1,540 lbs. Magnetic chuck height: 4” Number of magnetic chucks: 1 position
• Table dimensions: 20” x 39”
• Dimensions magnetic clamping plate: 20” x 39”
• Magnetic chuck height: 4”
• Number of magnetic chucks: 1 position
• Travels Travel X-axis: 39.4” Travel Y-axis: 20”
• Feed Feed Y-axis: 2”/min – 20”/min Feed Z-axis: 2”/min – 24”/min Hydr. feed X-axis: 16.35 fpm – 81.75 fpm Feed depth, Y-axis: 0.000197” – 0.001969” Automatic Z-axis feed: 0”/min – 1”/min
• Feed Y-axis: 2”/min – 20”/min
• Feed Z-axis: 2”/min – 24”/min
• Hydr. feed X-axis: 16.35 fpm – 81.75 fpm
• Feed depth, Y-axis: 0.000197” – 0.001969”
• Automatic Z-axis feed: 0”/min – 1”/min
• Grinding Wheel Grinding wheels dimensions (length x width): 14” x 2” x 5” Speed: 1450 rpm
• Grinding wheels dimensions (length x width): 14” x 2” x 5”
• Speed: 1450 rpm
• Drive Capacity Motor rating main drive: 10.1 Hp Hydraulic motor rating: 4 Hp Y-axis servo motor: 1 Hp Z-axis servo motor: 3 Hp
• Motor rating main drive: 10.1 Hp
• Hydraulic motor rating: 4 Hp
• Y-axis servo motor: 1 Hp
• Z-axis servo motor: 3 Hp
• Measures and Weights Overall dimensions (L x W x H): 178” x 105” x 107” Weight: 12,100 lbs.
• Overall dimensions (L x W x H): 178” x 105” x 107”
• Weight: 12,100 lbs.
• Options
• 253467 – Coolant system with magnetic separator and paper filter
• 253469 – Magnetic separator without reservoir for HFS F NC
• 253468 – Parallel grinding wheel dresser for HFS F NC
• 253736 – Fine-pole magnetic chuck for HFS 50100 F NC
• 253737 – Upgrade to fine-pole magnetic chuck for HFS 50100 F NC
• 102877 – Diamond Dresser Shank
• 103184 – Coolant Concentrate 5 Ltr
• 128815 – PSS 70 High-Precision Grinding and Control Vise
• 128824 – PSK 100 High-Precision Grinding and Control Vise
• 128825 – PSK 125 High-Precision Grinding and Control Vise
• 128930 – Precision Angle V-Block
• 128960 – Corrugated Parallel Parts 0.4-0.9"
• 128961 – Corrugated Parallel Parts 1.0-1.5"

Specifications

• Manufacturer: Knuth
• SKU: 124934
• Shipping Method: Flatbed
• Weight: 12,300 lb
• Dimensions: 183 × 110 × 112 in
• Country of Origin: China
