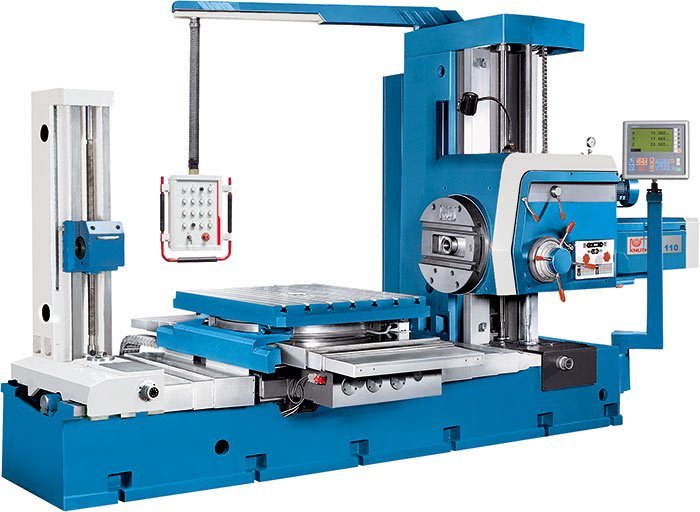

Knuth 10.1HP BO 110 Horizontal Drilling/Milling Unit 301499

Knuth 10.1HP BO 110 Horizontal Drilling/Milling Unit 301499 is a Knuth product in the Milling Machines collection.

Product Details

• Drilling capacity: 1.97”
• Table set up area: 43” x 38”
• Table load capacity: 5,500 lbs.
• Spindle axis-to-table surface distance: 0” – 35.43”
• Description
• The BO series of conventional boring-milling machines is designed for horizontal, multi-sided drilling and milling of workpiece weights of up to 2.5 tons. The stand is fixed, while the table can move and rotate 360​​°. The drill head moves on the column and the spindle has a long stroke on the W-axis. Conventional boring mills also have a facing slide with a long stroke, which extends the application to include boring. High drive power and automatic feeds on all axes with rapid traverse enable efficient machining and short non-productive times.
• Features
• Rigid, hardened and precision-ground square guides ensure many years of accurate operation
• Mechanical functions that cannot be run simultaneously are provided with interlocks
• Headstock and feed gears are equipped with an overload clutch
• Lever-operated shift gears for positioning of the wheels in the desired position
• Faceplate and drill spindle with different task-specific speed ranges according to the various functions
• Table rotates 360°
• Telescoping steel cover protects the guides from chips and dirt
• BO 110 incl. tailstock
• 3-Axis Position Indicator
• More accuracy
• Lower error rate
• Increased productivity
• Resulting in valuable time savings
• For increased productivity
• Easy to read display
• Operator-specific features
• Convenient keyboard layout
• Resolution: 0.0004 / 0.0002"
• Default coordinates
• Axis position is maintained when display is turned off
• Hole circle pattern calculation
• Calculator function
• Storage for 10 tools
• Radius / diameter toggle
• Mm/inch conversion
• Easy expansion and maintenance-free operation
• Standard Equipment
• Alignment wedges
• Central lubrication
• Work lamp
• Foundation bolts
• Operating tools
• Operator instructions
• Specifications
• Working Area Drilling capacity: 1.97” Table set up area: 43” x 38” Table load capacity: 5,500 lbs. Spindle axis-to-table surface distance: 0” – 35.43” Rotation speed of rotary table: 1 rpm
• Rotation speed of rotary table: 1 rpm
• Travels Facing slide travel: 7” Travel X: 35.4” Travel Y: 35” Travel Z: 35” Travel W: 24”
• Facing slide travel: 7”
• Travel X: 35.4”
• Travel Y: 35”
• Travel Z: 35”
• Travel W: 24”
• Headstock Speed range: 8 rpm – 1000 rpm Spindle diameter: 4” Spindle torque (max.): 904 ft.lb. Spindle mount: Taper 50 Facing slide speed: 4 rpm – 200 rpm Feed force, axial (max.): 12.25 kN Facing slide torque (max.): 1445.62 ft.lb.
• Speed range: 8 rpm – 1000 rpm
• Spindle diameter: 4”
• Spindle torque (max.): 904 ft.lb.
• Spindle mount: Taper 50
• Facing slide speed: 4 rpm – 200 rpm
• Feed force, axial (max.): 12.25 kN
• Facing slide torque (max.): 1445.62 ft.lb.
• Rapid Feed Rapid feed X-axis: 98.43”/min Rapid feed Y-axis: 98.43”/min Rapid feed W-axis: 98”/min
• Rapid feed X-axis: 98.43”/min
• Rapid feed Y-axis: 98.43”/min
• Rapid feed W-axis: 98”/min
• Feed Facing slide feed: 0.003”/min – 0.472”/min Feed X-axis: 0.00039”/R – 0.23622”/R Feed Z-axis: 0.00039”/R – 0.23622”/R Feed Y-axis: 0.00039”/R – 0.23622”/R Feed W-axis: 0.00039”/R – 0.23622”/R
• Facing slide feed: 0.003”/min – 0.472”/min
• Feed X-axis: 0.00039”/R – 0.23622”/R
• Feed Z-axis: 0.00039”/R – 0.23622”/R
• Feed Y-axis: 0.00039”/R – 0.23622”/R
• Feed W-axis: 0.00039”/R – 0.23622”/R
• Accuracies Read-out accuracy (optic): 0.0004” Counter-bore accuracy: H7 Ra-1.6 µm
• Read-out accuracy (optic): 0.0004”
• Counter-bore accuracy: H7 Ra-1.6 µm
• Drive Capacity Motor rating main drive: 10.1 Hp Motor rating hydraulic pump: 0.5 Hp
• Motor rating main drive: 10.1 Hp
• Motor rating hydraulic pump: 0.5 Hp
• Measures and Weights Overall dimensions (length x width x height): 193” x 97” x 109” Weight: 25,300 lbs.
• Overall dimensions (length x width x height): 193” x 97” x 109”
• Weight: 25,300 lbs.
• Options
• 103760 – Reduction Sleeve SK 50 / SK 30
• 103770 – Reduction Sleeve SK 50 / SK 40
• 104936 – Hydraulic Machine Vise HNCS 200V
• 104937 – Dial for HNCS 200V
• 105305 – Deluxe Clamping Tool Set 18/M16
• 105340 – Step of Step Blocks
• 105800 – Swivel Hold-Down Clamp Set 125/M16
• 106811 – Milling Chuck WELDON ISO 50 / Ø 0.24 in
• 106812 – Milling Chuck WELDON ISO 50 / Ø 0.3 in
• 106813 – Milling Chuck WELDON ISO 50 / Ø 0.4 in
• 106814 – Milling Chuck WELDON ISO 50 / Ø 0.47 in
• 106815 – Milling Chuck WELDON ISO 50 / Ø 0.63 in
• 106816 – Milling Chuck WELDON ISO 50 / Ø 0.78 in
• 106817 – Milling Chuck WELDON ISO 50 / Ø 1 in
• 106818 – Milling Chuck WELDON ISO 50 / Ø 1.26 in
• 107800 – Indexable Insert End Mills Set 0.98 in
• 110965 – Divider ST 155
• 110971 – Optional Accessory Set / ST 155
• 125029 – Hydraulic Machine Vise HS 200
• 125815 – Swivelable Rotary Table RTS 320
• 125825 – Tailstock / RT 320
• 125845 – Rotary Table RT 320
• 129345 – Swivel table ST 380
• 103184 – Coolant concentrate 5 ltr
• 106075 – ER40 collet set 15 pcs
• 123040 – Power worker metal cutter

Specifications

• Manufacturer: Knuth
• SKU: 301499
• Shipping Method: Flatbed
• Weight: 25,500 lb
• Dimensions: 198 × 102 × 114 in
• Country of Origin: China
