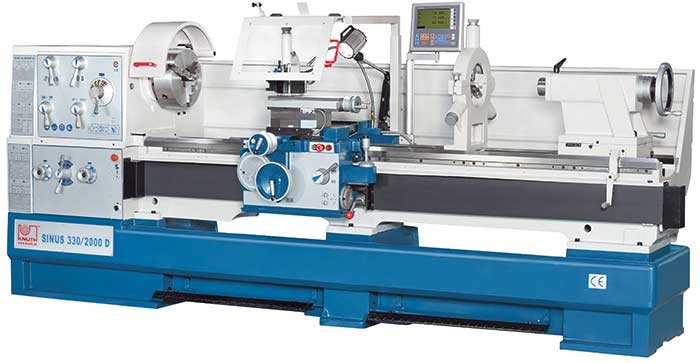

Knuth 10.1HP 79” Sinus 330/2000 D Precision Lathe 300011

Knuth 10.1HP 79” Sinus 330/2000 D Precision Lathe 300011 is a Knuth product in the Lathes collection.

Product Details

• Workpiece length (max.): 79”
• Turning diameter over bed: 26”
• Turning-Ø over support: 17”
• Turning diameter without gap bridge: 35”
• Description
• Sinus D is the largest series in the universal lathes segment. The construction follows a classic design but is based on a heavy, one-piece cast machine bed. As with heavy-duty lathes, the frictional connection between the motor and the spindle takes place via a manual multi-disc clutch. With integrated functions such as the removable bed bridge, rapid traverse and a taper turning device, this series offers optional solutions for machining long workpieces or large flanges.
• Features
• Removable bridge (12.5") for machining of large parts with diameters up to 35"
• High accuracy and low-noise operation even at high cutting power
• Heavy and large bed
• Hardened guide ways (>HB 400)
• 4 inch spindle capacity for machining of large parts
• Manual central lubrication
• Clutch for soft startup with heavy parts
• Automatic lubrication of headstock and main drive
• Protected lead screw
• Overload protection for feed shaft and lead screw
• Support moves in linear and cross directions via rapid feed
• 3-Axis Position Indicator X.Pos 3.2
• Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
• It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
• Optische Maßstäbe: 5 μm Auflösung (0,005 mm) mit Außenabdeckung aus Aluminium zum Schutz vor Öl, Kühlmittel und Spänen
• Basic Functions Auflösung 0,005 mm Spindle control ON/OFF Unit measurement conversion Inch / Metric Setting / Reseting current position Coordinate display switching ABS / INC Radius / Diameter display Z1/Z2 Axes summing Pocket calculator functions
• Auflösung 0,005 mm
• Spindle control ON/OFF
• Unit measurement conversion Inch / Metric
• Setting / Reseting current position
• Coordinate display switching ABS / INC
• Radius / Diameter display
• Z1/Z2 Axes summing
• Pocket calculator functions
• Extended Functions Axis position is maintained when display is turned off Hole circle pattern calculation Radius / diameter toggle Reference function for tool gauging Taper turning function
• Axis position is maintained when display is turned off
• Hole circle pattern calculation
• Radius / diameter toggle
• Reference function for tool gauging
• Taper turning function
• Standard Equipment
• 3-axis position indicator
• 3-jaw chuck Ø 13"
• 4-jaw chuck (15" diam.) face plate Ø 23"
• Face plate Ø 17.7 inch
• Dog plate
• Quick tool changer head WC
• Quick change tool holder WCD 32150
• Fixed splash guard (wall)
• Coolant system
• Steady and follow rests
• Taper turning unit
• Chuck guard
• LED work lamp
• Reducing sleeve
• Dead center
• Operating tools
• Operator instructions
• Rapid feed on Z and X axes
• Specifications
• Working Area Workpiece length (max.): 79” Turning diameter over bed: 26” Turning-Ø over support: 17” Turning diameter without gap bridge: 35” Gap bridge length: 13” Bed width: 16”
• Gap bridge length: 13”
• Bed width: 16”
• Travels Travel X-axis: 14.5” Travel Z1-axis: 9” Swing range of top slide: 45°
• Travel X-axis: 14.5”
• Travel Z1-axis: 9”
• Swing range of top slide: 45°
• Headstock Spindle mount: D1-8 Spindle speed: 25 rpm – 1600 rpm Spindle bore: 4” Spindle speed-stages: 16 Spindle taper: 5 MT
• Spindle mount: D1-8
• Spindle speed: 25 rpm – 1600 rpm
• Spindle bore: 4”
• Spindle speed-stages: 16
• Spindle taper: 5 MT
• Rapid Feed Rapid feed X-axis: 78.74”/min Rapid feed Z-axis: 157.48”/min
• Rapid feed X-axis: 78.74”/min
• Rapid feed Z-axis: 157.48”/min
• Feed Feed X-axis-stages: 25 Feed X-axis: 0.00087”/R – 0.02913”/R Feed Z-axis-stages: 25 Feed Z-axis: 0.00173”/R – 0.05827”/R
• Feed X-axis-stages: 25
• Feed X-axis: 0.00087”/R – 0.02913”/R
• Feed Z-axis-stages: 25
• Feed Z-axis: 0.00173”/R – 0.05827”/R
• Threading Threading, metric: 0.45 mm – 120 mm Threading, diametric: 0.88 DP – 160 DP Threading, module: 0.0098” – 2.3622” Threading, withworth: (54) 7/16 – 80 TPI
• Threading, metric: 0.45 mm – 120 mm
• Threading, diametric: 0.88 DP – 160 DP
• Threading, module: 0.0098” – 2.3622”
• Threading, withworth: (54) 7/16 – 80 TPI
• Tailstock Tailstock taper: 5 MT Tailstock quill stroke: 9” Tailstock quill diameter: 4” Tailstock traverse adjustment: ±0.5”
• Tailstock taper: 5 MT
• Tailstock quill stroke: 9”
• Tailstock quill diameter: 4”
• Tailstock traverse adjustment: ±0.5”
• Drive Capacity Motor rating main drive: 10.1 Hp
• Motor rating main drive: 10.1 Hp
• Measures and Weights Overall dimensions (length x width x height): 147” x 49” x 63” Weight: 6,380 lbs.
• Overall dimensions (length x width x height): 147” x 49” x 63”
• Weight: 6,380 lbs.
• Options
• 106760 – Live Center MT 5
• 103026 – Quick-Set Spindle Bore Stop Size 10 3.5-4.3 in
• 103332 – Pivoted Mounts LK 6
• 103184 – Coolant Concentrate 5 Ltr.
• 103835 – Reduction Sleeve MT 5/2
• 103840 – Reduction Sleeve MT 5/3
• 103845 – Reduction Sleeve MT 5/4
• 108670 – Clamped Turning Tool Set 0.98 in
• 108675 – Indexable Insert Set 0.98 in, 30 pcs.
• 116523 – 3-Jaw Lathe Chuck Cast-Iron 12 in
• 116553 – Soft Jaw Pads 12 in
• 116625 – 4-Jaw Lathe Chuck Cast Iron 12 in
• 116653 – Soft Jaw Pads 315
• 116674 – 4-Jaw Face Plate Chuck 12 in
• 116692 – Soft Jaw Pads 12 in
• 123040 – Power Worker Metal Cutter
• 103302 – Tool Holder WCD 32×170
• 103304 – Tool Holder WCD 40×170
• 103305 – Tool Holder WCD 45×170
• 103307 – Tool Holder WCH 50×160
• 103308 – Tool Holder WCJ 40×160
• 103310 – Cut-off insert holder WCA-A3a
• 103192 – Quick-change tool holder heads WC
• 103196 – Quick-change tool holder set WC
• 108344 – Measuring tool set M5
• 108800 – Mechanical clamping
• 108810 – Hydraulic measuring tripod
• 116506 – 3-jaw lathe chuck steel 16"
• 127422 – Dial holder
• 129020 – Analog dial gauge
• 146383 – 3-jaw lathe chuck steel 12"
• 146483 – 4-jaw lathe chuck steel 12"

Specifications

• Manufacturer: Knuth
• SKU: 300011
• Shipping Method: Flatbed
• Weight: 6,580 lb
• Dimensions: 152 × 54 × 68 in
• Country of Origin: China
