Knuth 1.5HP Basic Plus Mechanics Lathe 300809

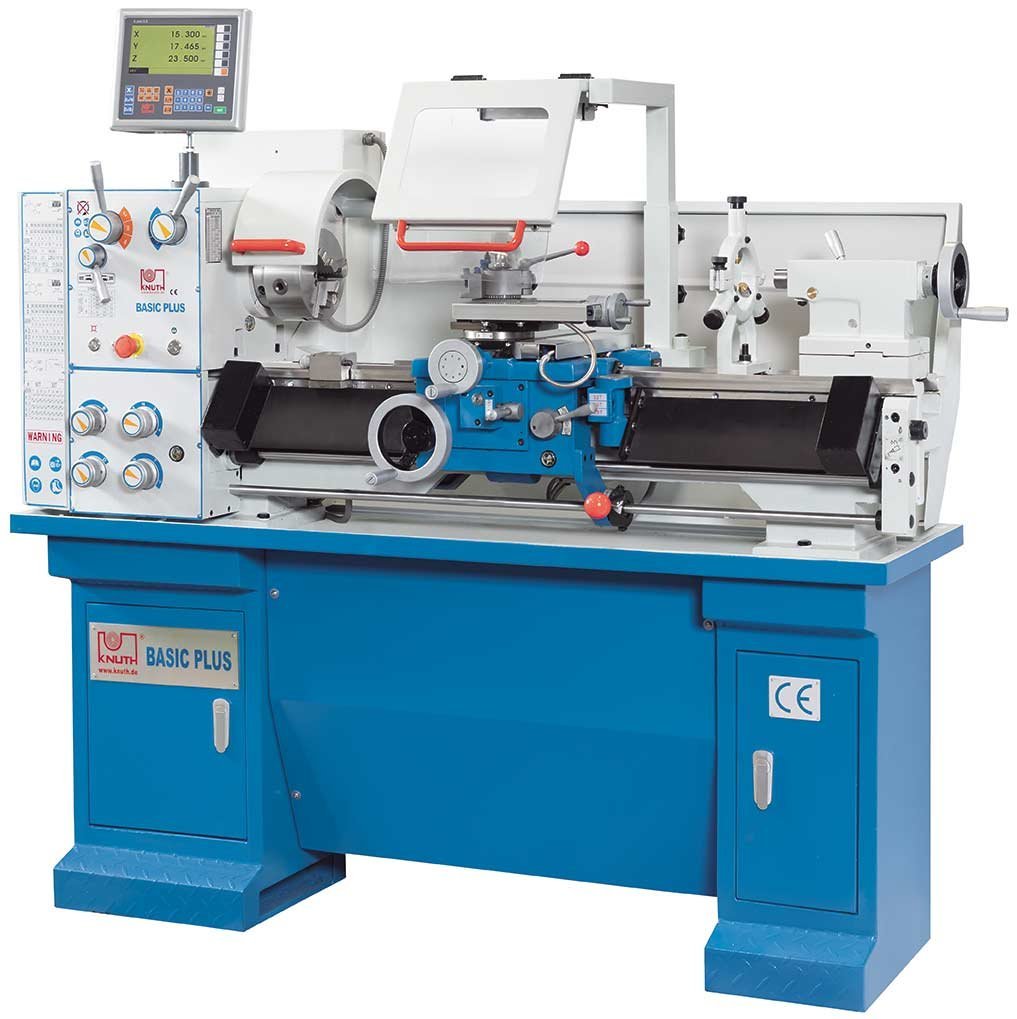

Knuth 1.5HP Basic Plus Mechanics Lathe 300809 is a Knuth product in the Lathes collection.

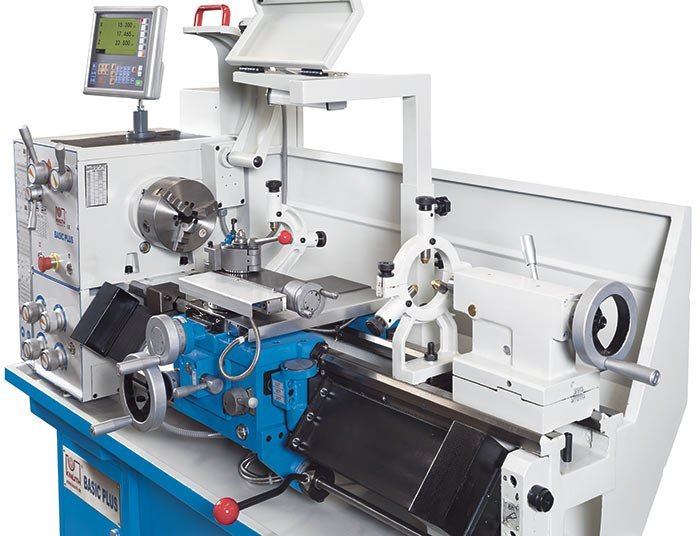

Product Details

• Turning diameter over bed: 12”
• Bed width: 7”
• Center width: 31.89”
• 5 Year Parts Warranty
• Description
• The Basic Plus is a versatile lathe for single part production. Due to the large selection of optional accessories, this model is the best choice for repair, training, and workshops of all kinds.
• Features
• Hardened and ground headstock gears
• Headstock with Camlock D1-4" mount, bore diam. 1.5 in, run in 2 adjustable tapered roller bearings
• Adjustable headstock bearing
• Tailstock can be moved ± 0.4 in for taper turning
• Reversing gear reversing gearbox for changing the feed direction
• Guides are adjustable via tapered gibs
• Cast-iron bed, double v-guide, hardened and ground
• 3-Axis Position Indicator X.Pos 3.2
• Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
• It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
• Optische Maßstäbe: 5 μm Auflösung (0,005 mm) mit Außenabdeckung aus Aluminium zum Schutz vor Öl, Kühlmittel und Spänen
• Basic Functions Auflösung 0,005 mm Spindle control ON/OFF Unit measurement conversion Inch / Metric Setting / Reseting current position Coordinate display switching ABS / INC Radius / Diameter display Z1/Z2 Axes summing Pocket calculator functions
• Auflösung 0,005 mm
• Spindle control ON/OFF
• Unit measurement conversion Inch / Metric
• Setting / Reseting current position
• Coordinate display switching ABS / INC
• Radius / Diameter display
• Z1/Z2 Axes summing
• Pocket calculator functions
• Extended Functions Axis position is maintained when display is turned off Hole circle pattern calculation Radius / diameter toggle Reference function for tool gauging Taper turning function
• Axis position is maintained when display is turned off
• Hole circle pattern calculation
• Radius / diameter toggle
• Reference function for tool gauging
• Taper turning function
• Standard Equipment
• 3-axis position indicator
• 3-jaw chuck Ø 6"
• 4-jaw face plate chuck Ø 8"
• Face plate Ø 10"

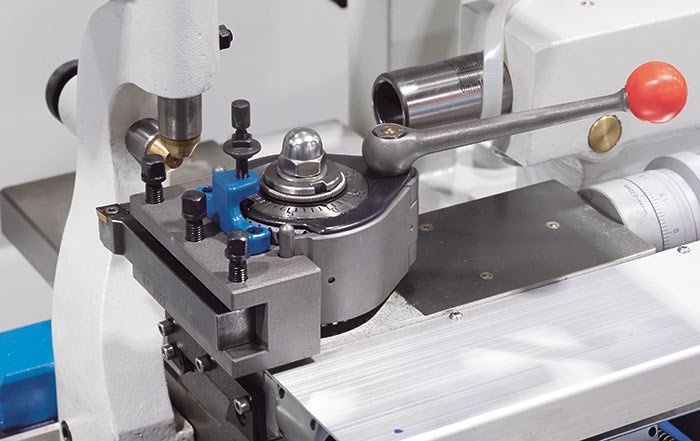

• Quick change tool holder WAD 1675
• Quick change tool holder head WA
• Steady and follow rests
• Chip tray
• Fixed splash guard (wall)
• Chuck guard
• Base
• Change gears
• Reducing sleeves
• Dead center
• Micrometer longitudinal stop
• Thread gauge
• Operating tools
• Operator instructions
• Specifications
• Working Area Turning diameter over bed: 12” Turning-Ø over support: 7” Bed width: 7” Center width: 31.89”
• Turning-Ø over support: 7”
• Travels Travel X-axis: 6.1” Travel Z1-axis: 4” Swing range of top slide: ± 60°
• Travel X-axis: 6.1”
• Travel Z1-axis: 4”
• Swing range of top slide: ± 60°
• Headstock Spindle mount: Camlock D1-4 Spindle speed: 60 rpm – 1.550 rpm Spindle bore: 1” Spindle taper: 5 MT
• Spindle mount: Camlock D1-4
• Spindle speed: 60 rpm – 1.550 rpm
• Spindle bore: 1”
• Spindle taper: 5 MT
• Feed Feed X-axis: 0.00055”/R – 0.01496”/R Feed Z-axis: 0.00205”/R – 0.0548”/R
• Feed X-axis: 0.00055”/R – 0.01496”/R
• Feed Z-axis: 0.00205”/R – 0.0548”/R
• Threading Threading, withworth: (34) 4-56 TPI Threading, metric: (26) 0.02" – 0.28"
• Threading, withworth: (34) 4-56 TPI
• Threading, metric: (26) 0.02" – 0.28"
• Tailstock Tailstock taper: 3 MT Tailstock quill stroke: 4” Tailstock quill diameter: 1” Tailstock traverse adjustment: ± 0.5”
• Tailstock taper: 3 MT
• Tailstock quill stroke: 4”
• Tailstock quill diameter: 1”
• Tailstock traverse adjustment: ± 0.5”
• Drive Capacity Motor rating main drive: 1.5 Hp
• Motor rating main drive: 1.5 Hp
• Measures and Weights Overall dimensions (length x width x height): 63” x 30” x 50” Weight: 1,144 lbs.
• Overall dimensions (length x width x height): 63” x 30” x 50”
• Weight: 1,144 lbs.
• Options
• 116600 – 4-Jaw Lathe Chuck Steel 6 inch
• 108772 – Clamped Turning Tool Set 0.6 in
• 108775 – Replacem. 0.5/0.6/0.8 in 5pc / Clamping Turning Tool
• 103271 – Tool Holder WAD 16×75
• 103272 – Tool Holder WAD 16×90
• 103273 – Tool Holder WAD 20×75
• 103276 – Tool Holder WAJ 30×80
• 103277 – Cut-off insert holder WAA-AO
• 103810 – Reduction Sleeve MT 3/1
• 103815 – Reduction Sleeve MT 3/2
• 104665 – Extension Sleeve MT 3/4
• 104739 – Tool Holder Bit MT 3 / B 16
• 104740 – Tool Holder Bit MT 3 / B 18
• 104765 – Keyless Drill Chuck 0.04-0.5 in B 16
• 104770 – Keyless Drill Chuck 0.12-0.63 in B 18
• 108365 – Digital Micrometer Calipers 0 – 4 in
• 108520 – Knurl Holder
• 108521 – Knurl Set, angles
• 108810 – Hydraulic measuring tripod
• 116550 – Soft Jaw Pads 6 in
• 116551 – Soft Jaw Pads 8 in
• 116601 – 4-Jaw Lathe Chuck Steel 8 in
• 116650 – Soft Jaw Pads 160
• 116651 – Soft Jaw Pads 200
• 116670 – 4-Jaw Face Plate Chuck 7.87 in
• 116690 – Soft Jaw Pads 8 in
• 146372 – 3-Jaw Lathe Chuck Steel 7.9 in
• 146378 – 3-Jaw Lathe Chuck Steel 6 in
• 102986 – Coolant System
• 103184 – Coolant Concentrate 5 Ltr.
• 106750 – Live Center MT 3
• 106785 – Live Centers, assortment MT 3
• 123040 – Power Worker Metal Cutter
• 103016 – Quick-Set Spindle Bore Stop Size 4 1.2-1.5 inch
• 103330 – Pivoted Mounts LK 3
• 104593 – Accessory-Set MT 3, 7-pc.
• 103193 – Quick-change tool holder set WA
• 103274 – Tool holder WAD 20×90
• 103275 – Tool holder WAH 20×85
• 108344 – Measuring tool set M5
• 108800 – Mechanical clamping
• 116501 – 3-Jaw lathe chuck steel 8"
• 116520 – 3-Jaw lathe chuck cast-iron 6"
• 116620 – 4-Jaw lathe chuck cast-iron 6"
• 116622 – 4-Jaw lathe chuck cast-iron 8"
• 127011 – Dial digital 0-0.5"
• 127422 – Dial holder
• 129020 – Analog dial gauge

Specifications

• Manufacturer: Knuth
• SKU: 300809
• Shipping Method: LTL Freight
• Weight: 1,344 lb
• Dimensions: 68 × 35 × 55 in
• Country of Origin: China
• Warranty: 5 Years (Parts)
