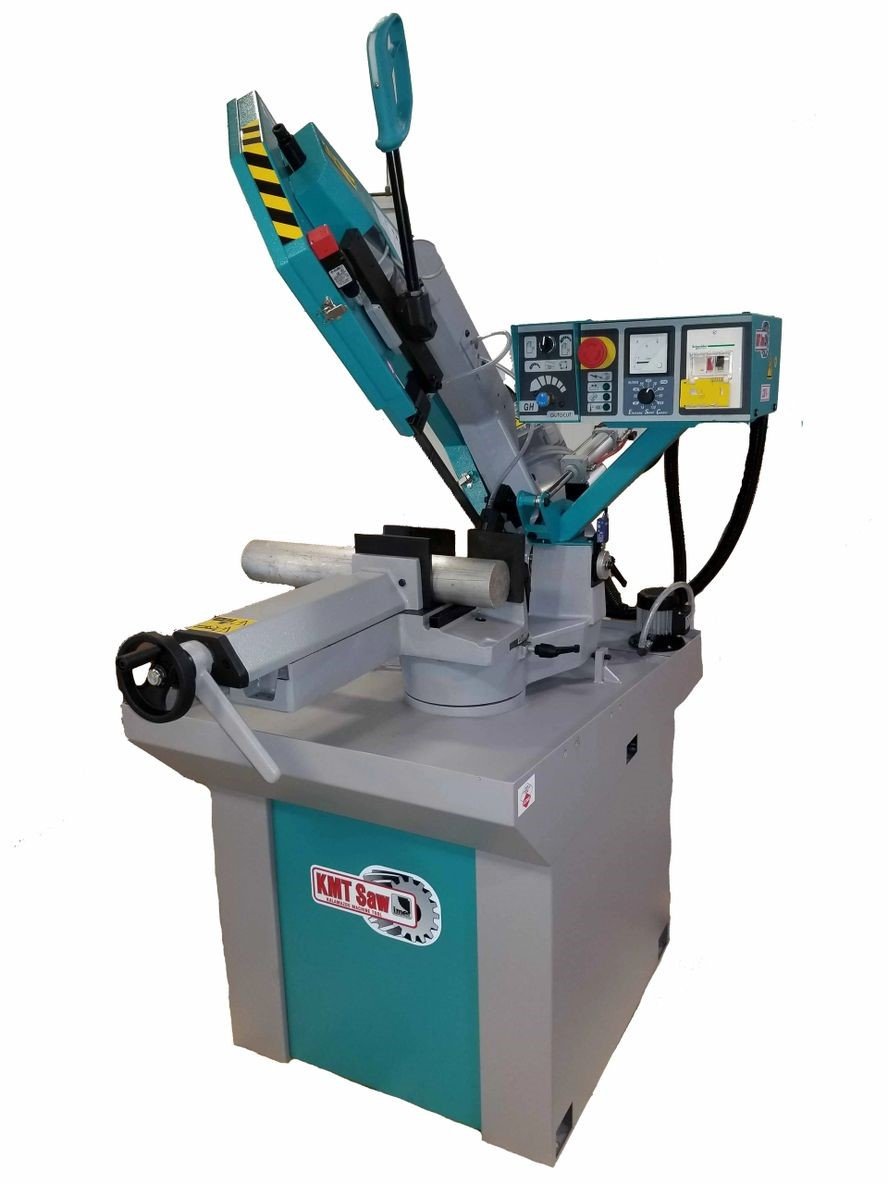

Kalamazoo Machine Tool 2HP 460V Three Phase 10” Variable Speed Manual Autocut Bandsaw H310U-V

Kalamazoo Machine Tool 2HP 460V Three Phase 10” Variable Speed Manual Autocut Bandsaw H310U-V is a Kalamazoo Machine Tool product in the Band Saws collection.

Product Details

• One Bi-metal sawblade
• Low voltage control
• TEFC 3 phase drive motor
• Totally enclosed worm gear transmission
• Description
• The H310 U & H310 U-V is a gravity feed autocut bandsaw capable of mitering 60 degrees to the right. The saw is offered in two versions, 2 Speed and variable speed. The cycle start button is located in the trigger switch for safety. The blade will turn off at the end of the cut. The solenoid will hold the sawframe where lifted. The Autocut will ensure that each cut is feed exactly at the same rate, eliminating the need to open and close the valve each cut. The vise is easily opened and closed with handwheel; quick handle is included for repetitive cuts. Easy operator controls. Large easy to read scale ensures accurate miters. Carbide guides w/ rollers.
• Standard Equipment
• Full Coolant System
• Full Blade Guarding
• Operators Manual Parts List/Schematics
• Tool kit
• Specifications
• (See chart in pictures.) Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
• Options
• AC200 5' x 15" – Wide freestanding conveyor (additional 5' sections can bolt together)
• AC250 5' x 15" – Wide conveyor mounted to machine (additional 5' sections can bolt together)
• AC102 6' – Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
• AC103 – Additional 6' connecting to AC102

Specifications

• Manufacturer: Kalamazoo Machine Tool
• SKU: H310U-V (460V)
• Shipping Method: LTL Freight
• Weight: 850 lb
• Dimensions: 60 × 38 × 42 in
• Warranty: 1 Year (Parts)
