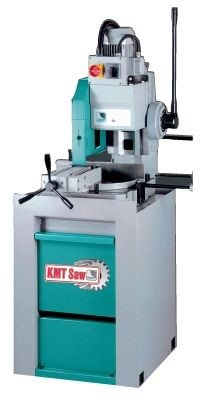

Kalamazoo Machine Tool 2.5HP 460V Three Phase 12.5” Vertical Column Manual Coldsaw with Air Vise C316AV

Kalamazoo Machine Tool 2.5HP 460V Three Phase 12.5” Vertical Column Manual Coldsaw with Air Vise C316AV is a Kalamazoo Machine Tool product in the Cold Saws collection.

Product Details

• One HSS sawblade
• Low voltage control
• TEFC 3 phase drive motor
• Totally enclosed worm gear transmission
• Description

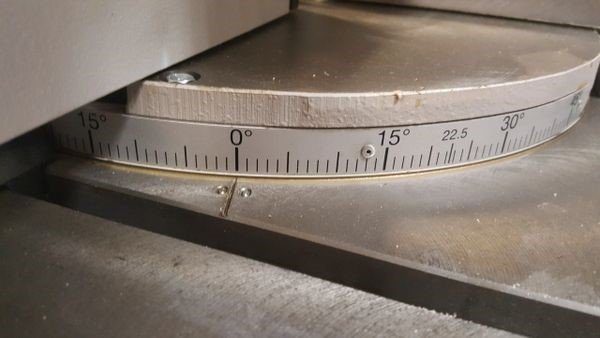

• Vertical column machines provide the construction that is the most stable of all cold saws. This means superior sawframe guidance and vibration-free sawing, and greater accuracy throughout the entire life of the machine. The sawframe is quickly and accurately swiveled to any angle up to 45 degrees left or 60 degrees right, with a highly visible scale for optimum accurately returning to zero. The sawframe feed is rack & pinion which means you can easily pull through heavy workpieces effortlessly.
• Models C 316 is a step up from hinge type construction and may be used for production of tubes profiles and small solids.
• Standard Equipment
• Full Coolant System
• Full Blade Guarding
• Operators Manual Parts List/Schematics
• Tool kit
• Pull out chip tray
• Specifications

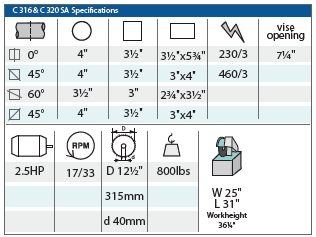

• (See chart in pictures.) Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
• Options
• 220V Single Phase
• AC200 – 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
• AC250 – 5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together)
• AC102 – 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
• AC103 – Additional 6' connecting to AC102

Specifications

• Manufacturer: Kalamazoo Machine Tool
• SKU: C316AV (460V)
• Shipping Method: LTL Freight
• Weight: 900 lb
• Dimensions: 36 × 30 × 41 in
• Warranty: 1 Year (Parts)
