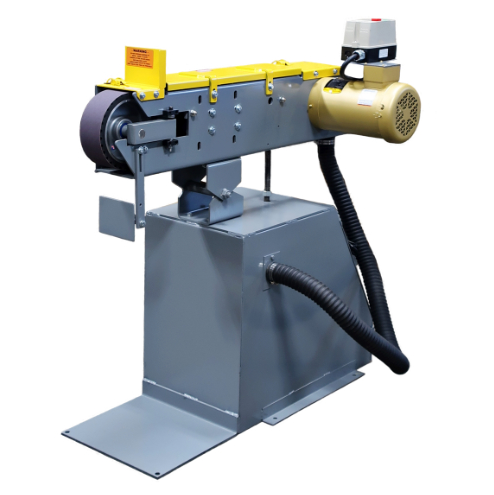

Kalamazoo Industries 3HP 460V Three Phase 4” x 90” Grinder with Vacuum KS490V

Kalamazoo Industries 3HP 460V Three Phase 4” x 90” Grinder with Vacuum KS490V is a Kalamazoo Industries product in the Grinding & Sanding collection.

Product Details

• 3PH amps: 3.6 amps
• 24-1/2″ long steel reversible and replaceable platen.
• Belt size: 4″ x 90″. All belt types are usable.
• Belt speed: 7200 SFPM.
• Description
• Need to grind steel and cast iron quickly and keep it cool? The KS490V 4 x 90 inch grinder with vacuum is for fast and cool production grinding and sanding. Other features include a powerful 2HP 1PH or 3HP 3PH motor, 8″ OD x 4″ wide 70 duro serrated contact wheel, quick belt change, all steel construction, a built-in vacuum system, multiple grinding points, and full left to right movement.
• Designed to Do the Following
• Bevel
• Deburr
• Squaring up ends
• Rounding corners
• Flatwork
• Contouring
• Heavy metal removal
• Aggressive grinding
• Sharpening
• Production grinding
• Features
• Direct drive.
• Replaceable contact wheel specifications: 8″ OD x 3″ serrated 70 duro with sealed ball bearings.
• On/off switch.
• Spring belt tension.
• Quick-release belt tension lever.
• Easy belt tracking.
• Adjustable head stop.
• Removable steel platen guard.
• Adjustable steel work table.
• Adjustable belt grinder head.
• Hinged door on grinder head for quick belt and change.
• Multi-position horizontal through vertical.
• Steel base with built-in vacuum system.
• Replaceable filter.
• Specifications
• Motor: 3 HP 3 PH 230V or 460V
• Machine shipping dimensions: L 48″ x W 59″ x H 56″.
• Machine shipping weight: 325 lbs.
• Options
• KB49050 – 4 X 90 INCH ALUMINUM OXIDE SANDING BELTS
• KB49080 – 4 X 90 INCH ALUMINUM OXIDE SANDING BELTS
• KB490100 – 4 X 90 INCH ALUMINUM OXIDE SANDING BELTS

Specifications

• Manufacturer: Kalamazoo Industries
• SKU: KS490V (460V)
• Shipping Method: LTL Freight
• Weight: 325 lb
• Dimensions: 48 × 59 × 56 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
