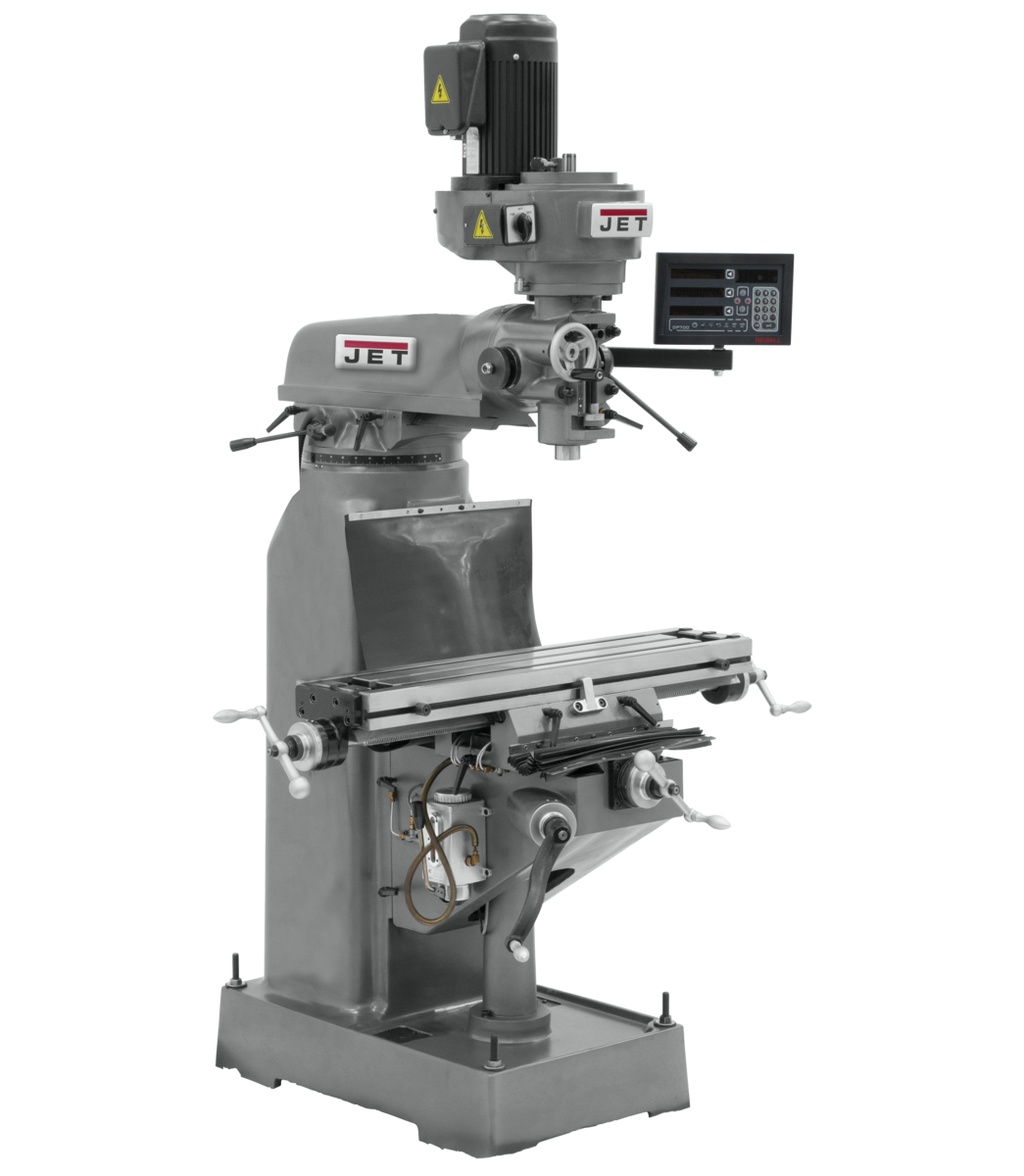

Jet JVM-836-1 Mill With 3-Axis Newall DP700 DRO (Quill) 691176

Jet JVM-836-1 Mill With 3-Axis Newall DP700 DRO (Quill) 691176 is a JET product in the Milling Machines collection.

Product Details

• Graduated scale on column
• Hardened and ground precision table
• Head tilts left or right
• High precision spindle bearings
• Large Diameter quill is chromed
• The precision bored and honed milling head, coupled with the hardened and ground 8” x 36” table ensures retention of tolerances, while locks on all moving surfaces increase user safety. The JET JVM-836 has features you've come to expect that are backed by the industry-leading JET Two Year Warranty
• One shot lubrication system
• Precision bored and honed milling head
• Precision ground dovetail ways
• Specification: Value
• Spindle Travel (In.): 5
• Style (Type): Step Pulley R8
• Number of Axis: 3 (Quill)
• Number of Spindle Speeds: 5
• Table Size (L x W) (In.): 7-7/8 x 35-3/4
• Weight (Lbs.): 1617
• Spindle Taper (In. x TPI): R-8
• Max Distance Spindle to Table (In.): 13-3/4
• Distance Spindle to Column (Max.) (In.): 15-3/4
• Quill Diameter (In.): 3-3/8
• Range of Spindle Speeds (RPM): 240 – 1,550
• Collet Capacity: 1/8 – 7/8
• Table Longitudinal Travel (In.): 22-1/4
• Quill Down Feed Rates (IPR): .0015 – .003 – .006
• Table Longitudinal Travel With Powerfeed (In.): 18
• Table Cross Travel (In.): 9-1/2
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 500
• Travel of Knee (In.): 14
• Travel of Ram (In.): 10-1/2
• Motor (HP): 1-1/2 HP, 115/230V, 1Ph
• Overall Dimensions (L x W x H) (In.): 55 x 52 x 78
• Height: 67.0000
• Length: 66.0000
• Weight: 1630.0000
• Width: 56.0000

Specifications

• Manufacturer: JET
• SKU: JT9-691176
• UPC: 662755513930
• Shipping Method: LTL Freight
• Weight: 1,630 lb
• Dimensions: 66 × 56 × 67 in
• Country of Origin: China
