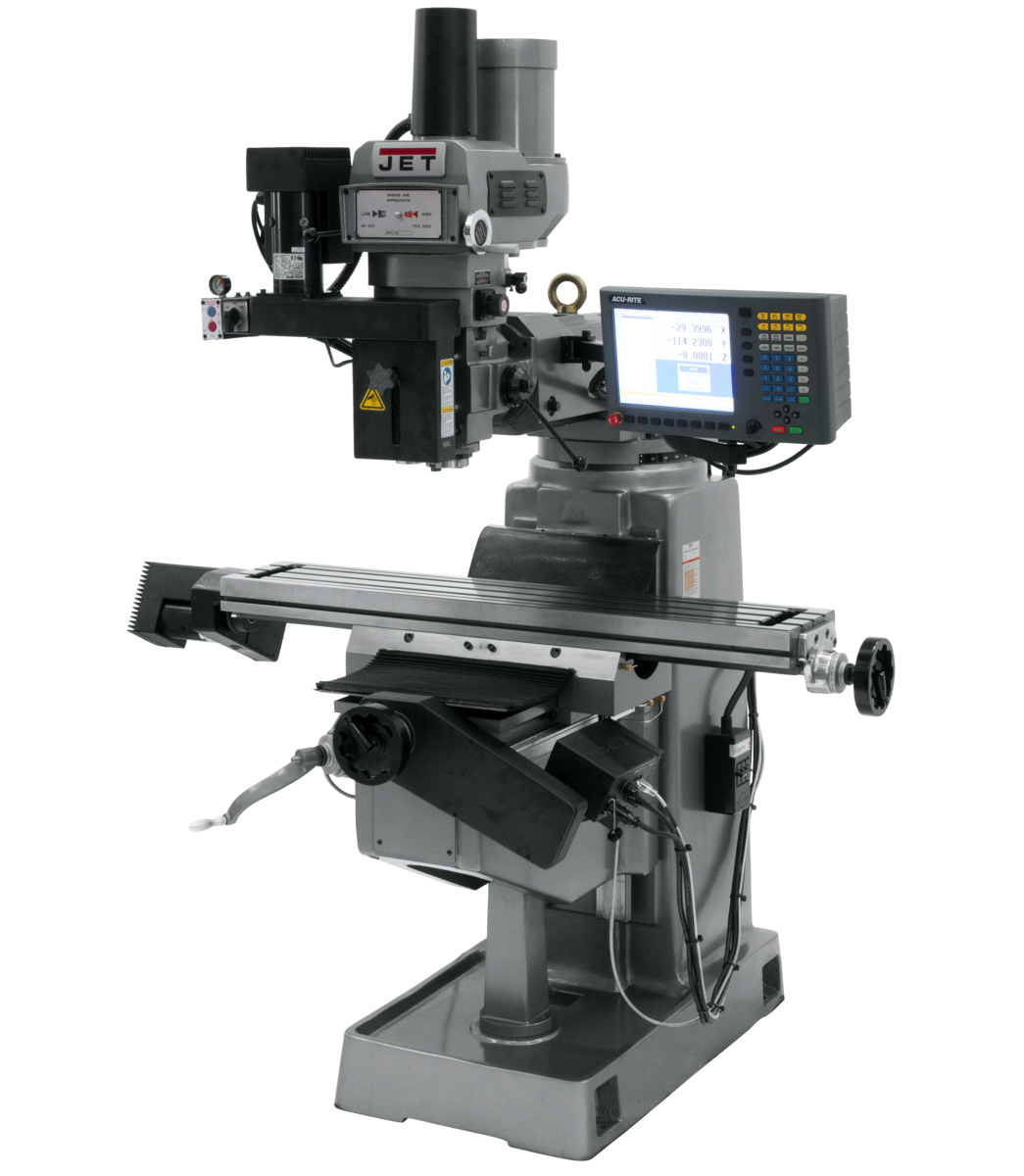

Jet JTM-949EVS/230 Mill With 2-Axis ACU-RITE G-2 MILLPWR CNC 690575

Jet JTM-949EVS/230 Mill With 2-Axis ACU-RITE G-2 MILLPWR CNC 690575 is a JET product in the Milling Machines collection.

Product Details

• Adjustable gibs throughout
• Class 7 bearings support the spindle for maximum rigidity in heavy cutting applications
• Dual locks on all moveable surfaces
• Heavy-duty spindle brake
• Internal coolant tank built into casting base
• JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time, while also providing an easier solution to leveling the machine. The inverter drive system and emergency stop located on a swing away control arm that moves all major functions within the operators reach. Our automatic lubrication cycles every 30 minutes with a flow of 3-6cc to reduce maintenance. All the features you've come to expect backed by the industry-leading JET Two Year Warranty.
• Precision bored and honed milling head
• Precision hardened and ground ways and table
• Quick spindle feed nut easily adjusts to different depths
• Three-stage power downfeed with automatic stop
• Two 115V outlets on electrical box for DRO or powerfeeds
• Specification: Value
• CNC Package: ACU-RITE MILLPWR® G2
• Spindle Travel (In.): 5
• Style (Type): CNC
• Number of Axis: 2
• Table Size (L x W) (In.): 9 x 49
• Weight (Lbs.): 2420
• Spindle Taper (In. x TPI): R-8
• Max Distance Spindle to Table (In.): 20-3/4
• Distance Spindle to Column (Max.) (In.): 18-1/8
• Quill Diameter (In.): 3-3/8
• Range of Spindle Speeds (RPM): 60 – 4,500
• Collet Capacity: 1/8 – 7/8
• Quill Down Feed Rates (IPR): .0015 – .003 – .006
• Table Longitudinal Travel (In.): 36
• Table Longitudinal Travel With Powerfeed (In.): 30-3/4
• Table Cross Travel (In.): 12-5/8
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 720
• Travel of Knee (In.): 15-3/4
• Travel of Ram (In.): 15-1/4
• Saddle Width (In.): 11-1/2
• Column Width (In.): 18
• Motor (HP): 3HP, 230V, 3Ph
• Inverter Type: Delta, B
• Overall Dimensions (L x W x H) (In.): 67 x 64 x 86
• Length: 66.0000
• Height: 86.0000
• Weight: 3000.0000
• Width: 63.0000

Specifications

• Manufacturer: JET
• SKU: JT9-690575
• UPC: 731325452556
• Shipping Method: LTL Freight
• Weight: 3,000 lb
• Dimensions: 66 × 63 × 86 in
• Country of Origin: Taiwan
