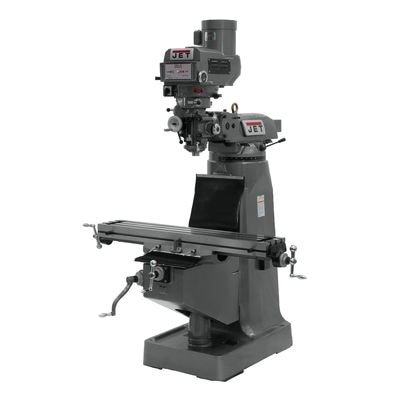

Jet JTM-4VS Mill With Air Powered Draw Bar 690119

Jet JTM-4VS Mill With Air Powered Draw Bar 690119 is a JET product in the Milling Machines collection.

Product Details

• Adjustable gibs throughout
• Heavy duty splined motor drive
• Internal coolant tank built into casting base for use with coolant system (Coolant pump not included)
• Large Diameter quill is chromed
• One shot lubrication system
• Constructed using the Certified Meehanite® casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading two year full service and parts warranty.
• Precision hardened and ground ways and table
• Spindle head is internally cooled
• Tolerance test sheet included
• Specification: Value
• Spindle Travel (In.): 5
• Style (Type): Variable Speed R8
• Power Draw Bar: Pneumatic
• Table Size (L x W) (In.): 9 x 49
• Weight (Lbs.): 2420
• Spindle Taper (In. x TPI): R-8
• Max Distance Spindle to Table (In.): 17-1/2
• Distance Spindle to Column (Max.) (In.): 19
• Quill Diameter (In.): 3-3/8
• Range of Spindle Speeds (RPM): 60 – 4,200
• Collet Capacity: 1/8 – 7/8
• Quill Down Feed Rates (IPR): .0015 – .003 – .006
• Table Longitudinal Travel (In.): 34
• Table Longitudinal Travel With Powerfeed (In.): 28-3/4
• Table Cross Travel (In.): 12
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 660
• Travel of Knee (In.): 14-1/2
• Travel of Ram (In.): 13-3/8
• Motor (HP): 3 HP, 230/460V, 3Ph
• Overall Dimensions (L x W x H) (In.): 66 x 63 x 85
• Height: 85.0000
• Length: 63.0000
• Weight: 2420.0000
• Width: 65.5000

Specifications

• Manufacturer: JET
• SKU: JT9-690119
• UPC: 731325173529
• Shipping Method: LTL Freight
• Weight: 2,420 lb
• Dimensions: 63 × 65.5 × 85 in
• Country of Origin: Taiwan
