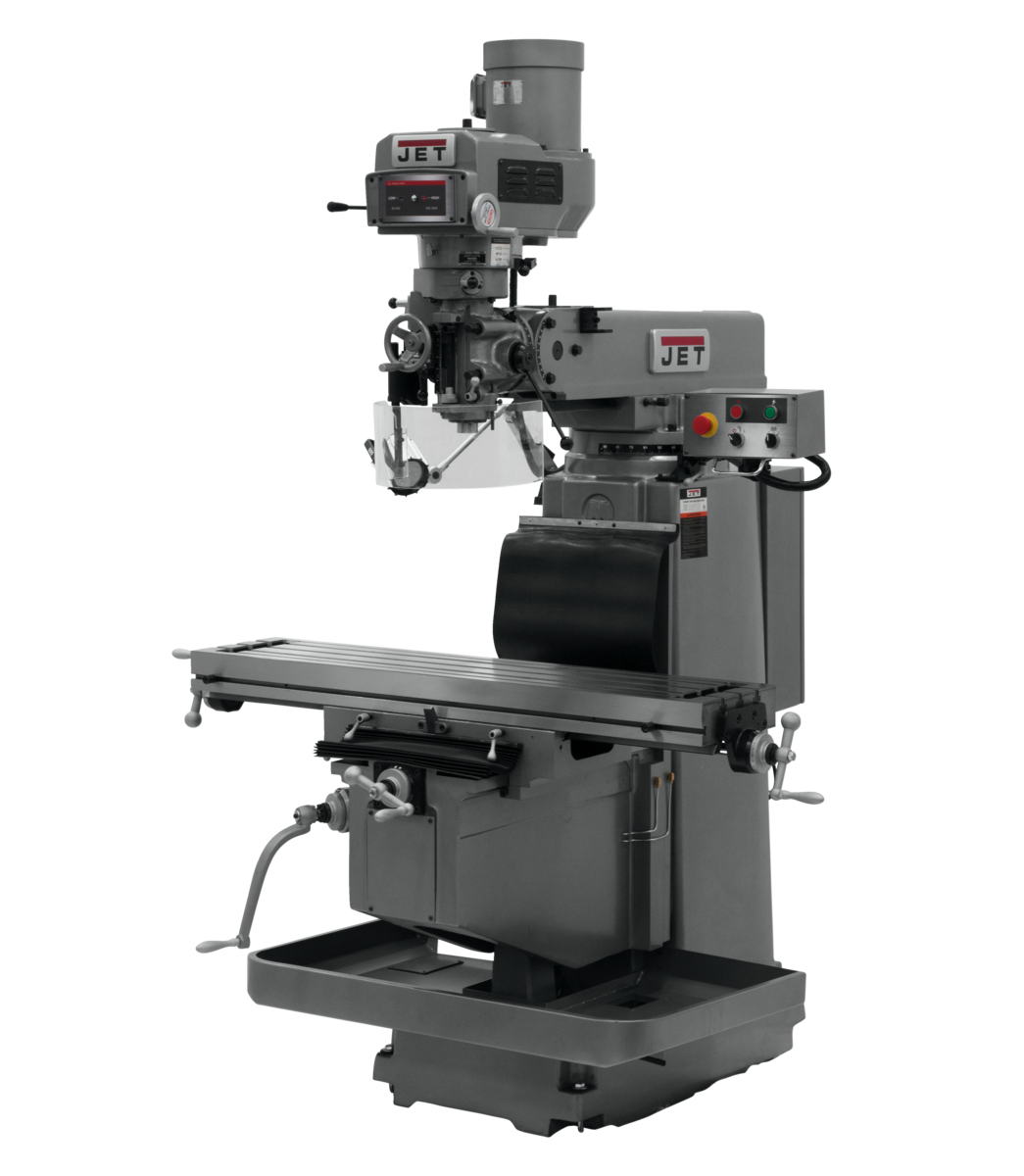

Jet JTM-1254RVS with 2-Axis ACU-RITE G-2 MILLPOWER CNC 691943

Jet JTM-1254RVS with 2-Axis ACU-RITE G-2 MILLPOWER CNC 691943 is a JET product in the Milling Machines collection.

Product Details

• 12.1" High resolution display (1024 x 768) with 3D graphics
• 3-D Contouring, ability to import and run G-code files from CAD/CAM programs
• Adjustable gibs throughout
• Automatic Lubrication every 180 minutes with a flow of 3-6cc reduces maintenance
• Available offline software
• JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. Menu-prompted conversational programming to easily create part programs, edit, reverse, change, delete, and copy or move steps. Simply follow the menu prompts and let MILLPWR G2 do the rest. CSA/CUS Certified. All the features you've come to expect backed by the industry-leading JET Two Year Warranty
• Estimated run time feature
• Jog Control allows table movement, quickly from one location to another – using one axis at a time or any two axes simultaneously
• Three Precision ground t-slots
• Two 115V outlets on electrical box for Powerfeeds only
• USB + Ethernet compatible
• Specification: Value
• Spindle Travel (In.): 5
• Style (Type): CNC
• Table Size (L x W) (In.): 12 x 54
• Weight (Lbs.): 3696
• Spindle Taper (In. x TPI): R-8
• Max Distance Spindle to Table (In.): 23
• Distance Spindle to Column (Max.) (In.): 27-3/4
• Quill Diameter (In.): 4-1/8
• Range of Spindle Speeds (RPM): 80 – 3,800
• Quill Down Feed Rates (IPR): .0015 – .003 – .006
• Table Longitudinal Travel (In.): 33-7/8
• Table Cross Travel (In.): 15-1/3
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 925
• Travel of Knee (In.): 19-1/4
• Travel of Ram (In.): 25
• Saddle Width (In.): 25-5/8
• Motor (HP): 5HP, 230/460V, 3Ph
• Column Width (In.): 14-1/4
• Overall Dimensions (L x W x H) (In.): 104-1/4 x 79-7/8 x 92-1/8
• Height: 104.2500
• Length: 92.1250
• Weight: 3696.0000
• Width: 79.8750

Specifications

• Manufacturer: JET
• SKU: JT9-691943
• UPC: 731325524956
• Shipping Method: LTL Freight
• Weight: 3,696 lb
• Dimensions: 92.13 × 79.88 × 104.25 in
• Country of Origin: Taiwan
