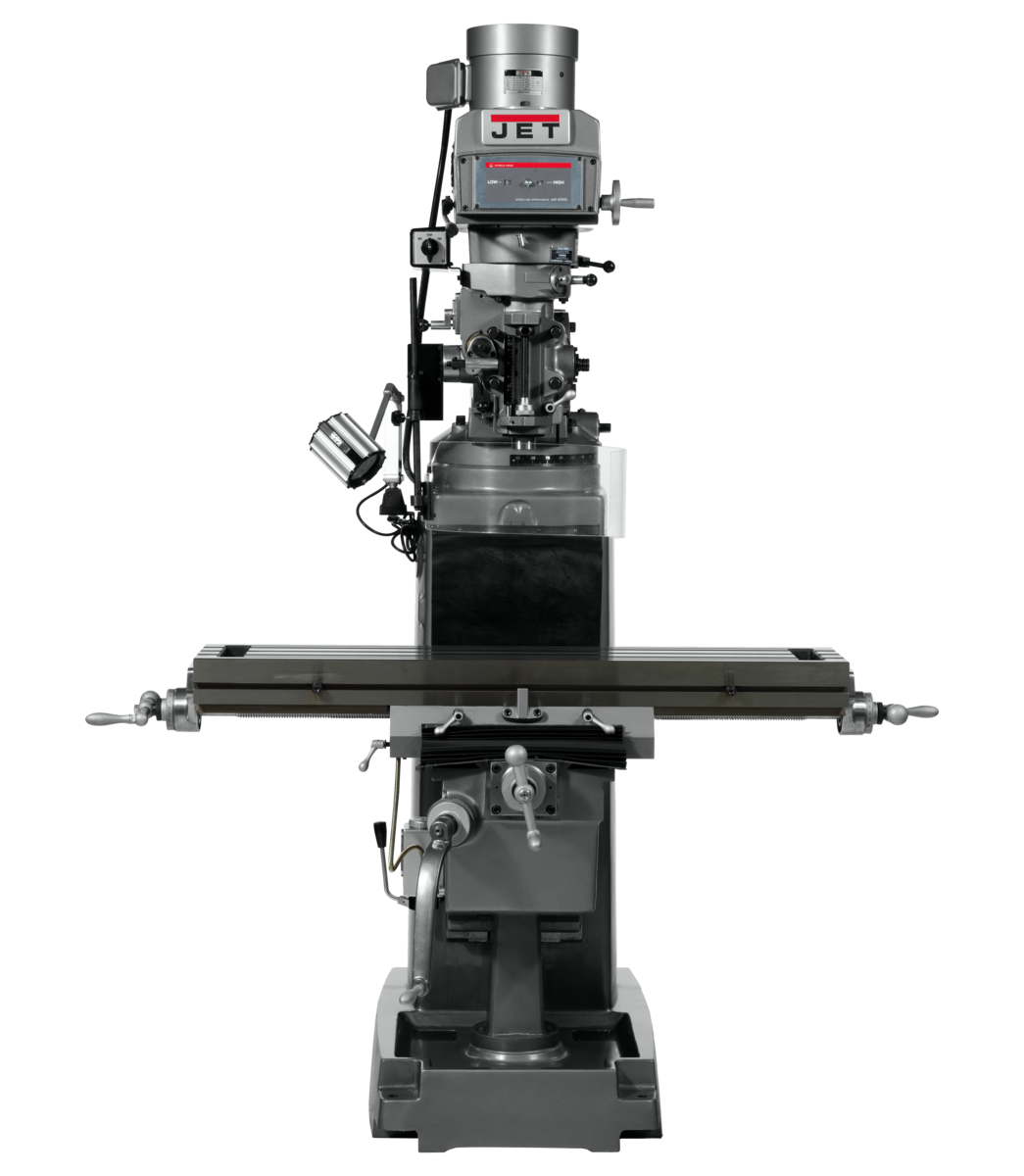

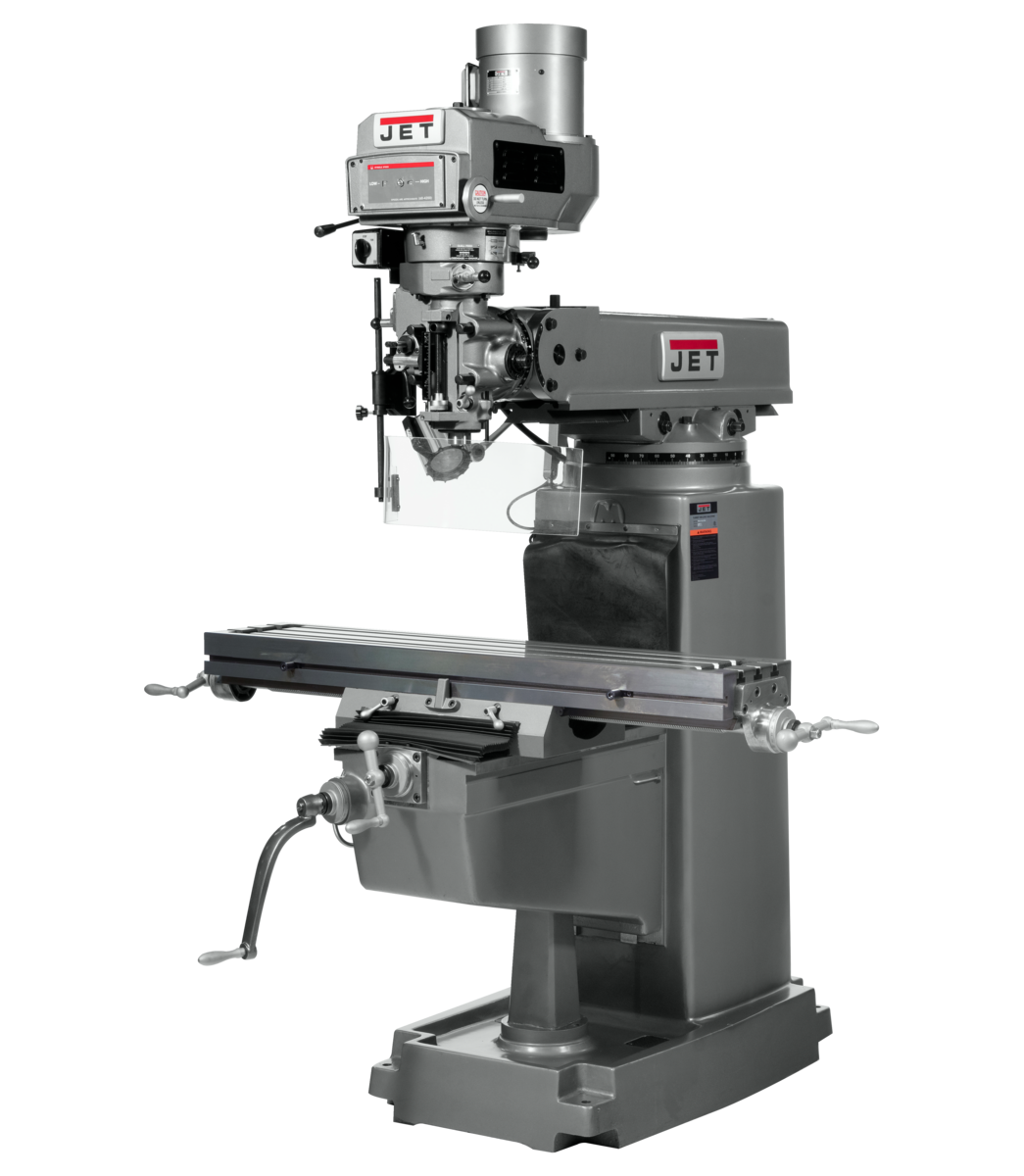

Jet JTM-1050VS2 Variable Speed Mill with LED Worklamp and Spindle Guard, 230/460V, 3Ph 691050

Jet JTM-1050VS2 Variable Speed Mill with LED Worklamp and Spindle Guard, 230/460V, 3Ph 691050 is a JET product in the Milling Machines collection.

Product Details

• Chrome lead screws on X and Y axis
• Hardened and ground table
• Hardened and ground table capable of supporting 840 pounds
• Internal coolant tank built into base for use with optional coolant system (coolant pump not included)
• JET's proprietary certified Meehanite® column castings
• The JET JTM-1050VS2 features our proprietary Meehanite® column castings, a heavy-duty hardened and ground 10” x 50” table, and high precision class 7 precision bearings support the spindle. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty
• One shot lubrication system
• Precision bored and honed milling head
• Three stage power downfeed with automatic stop
• Specification: Value
• Spindle Travel (In.): 5
• Table Size (L x W) (In.): 10 x 50
• Weight (Lbs.): 2466
• Spindle Taper (In. x TPI): R8
• Range of Spindle Speeds (RPM): 60-500/500-4200
• Distance Spindle to Column (Max.) (In.): 27
• Quill Diameter (In.): 3-3/8
• Collet Capacity: 1/8 – 5/8
• Quill Down Feed Rates (IPR): .0015 / .003 / .008
• Table Longitudinal Travel (In.): 34-1/4
• Table Cross Travel (In.): 14-3/4
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 840
• Travel of Knee (In.): 16-1/8
• Saddle Width (In.): 20
• Motor (HP): 3 HP,230/460V ,3Ph
• Column Width (In.): 13
• Overall Dimensions (L x W x H) (In.): 63 x 63 x 89
• Height: 89.3700
• Length: 63.0000
• Weight: 2568.0000
• Width: 63.0000

Specifications

• Manufacturer: JET
• SKU: JT9-691050
• UPC: 731325764932
• Shipping Method: LTL Freight
• Weight: 2,568 lb
• Dimensions: 63 × 63 × 89.37 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
