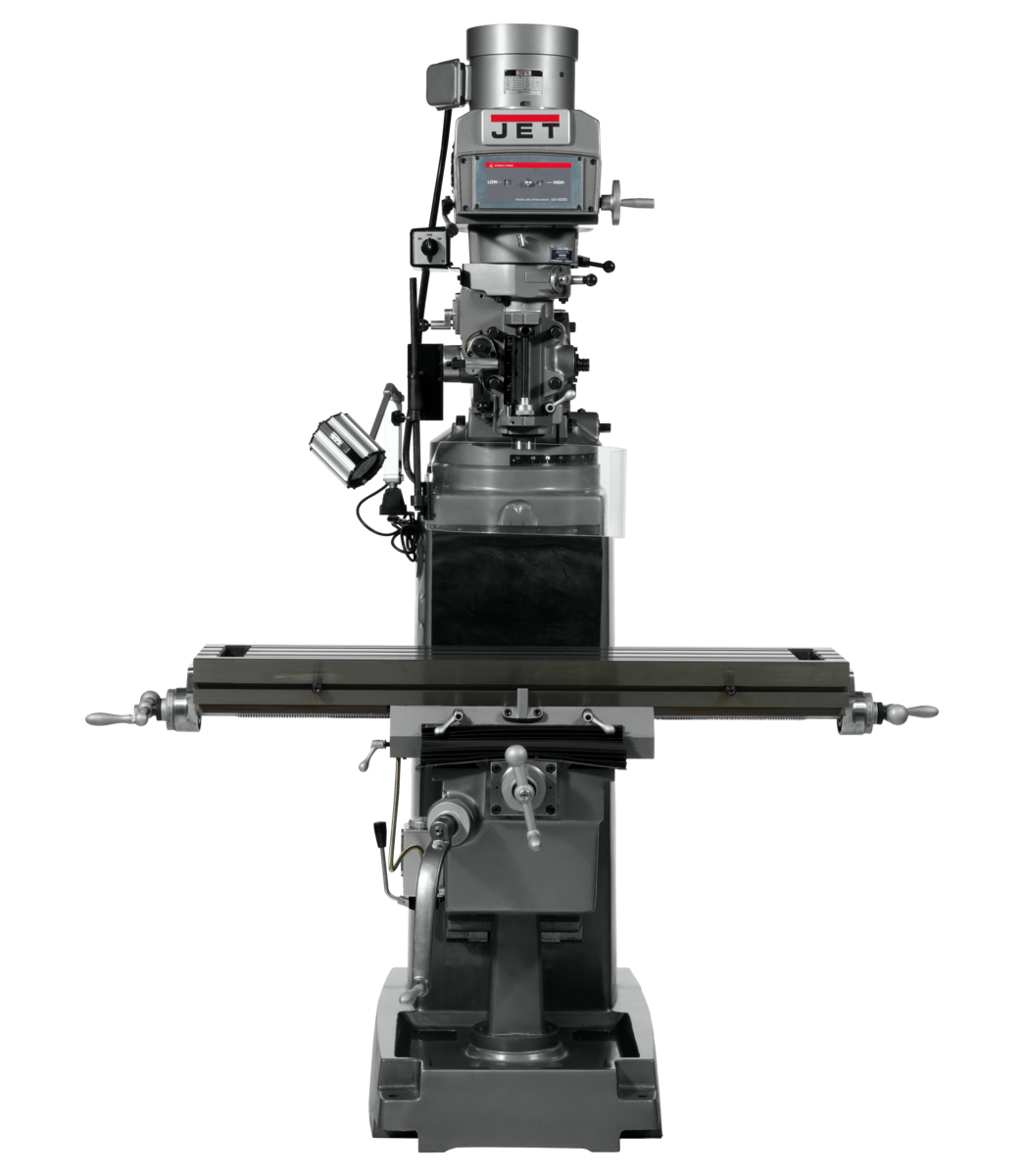

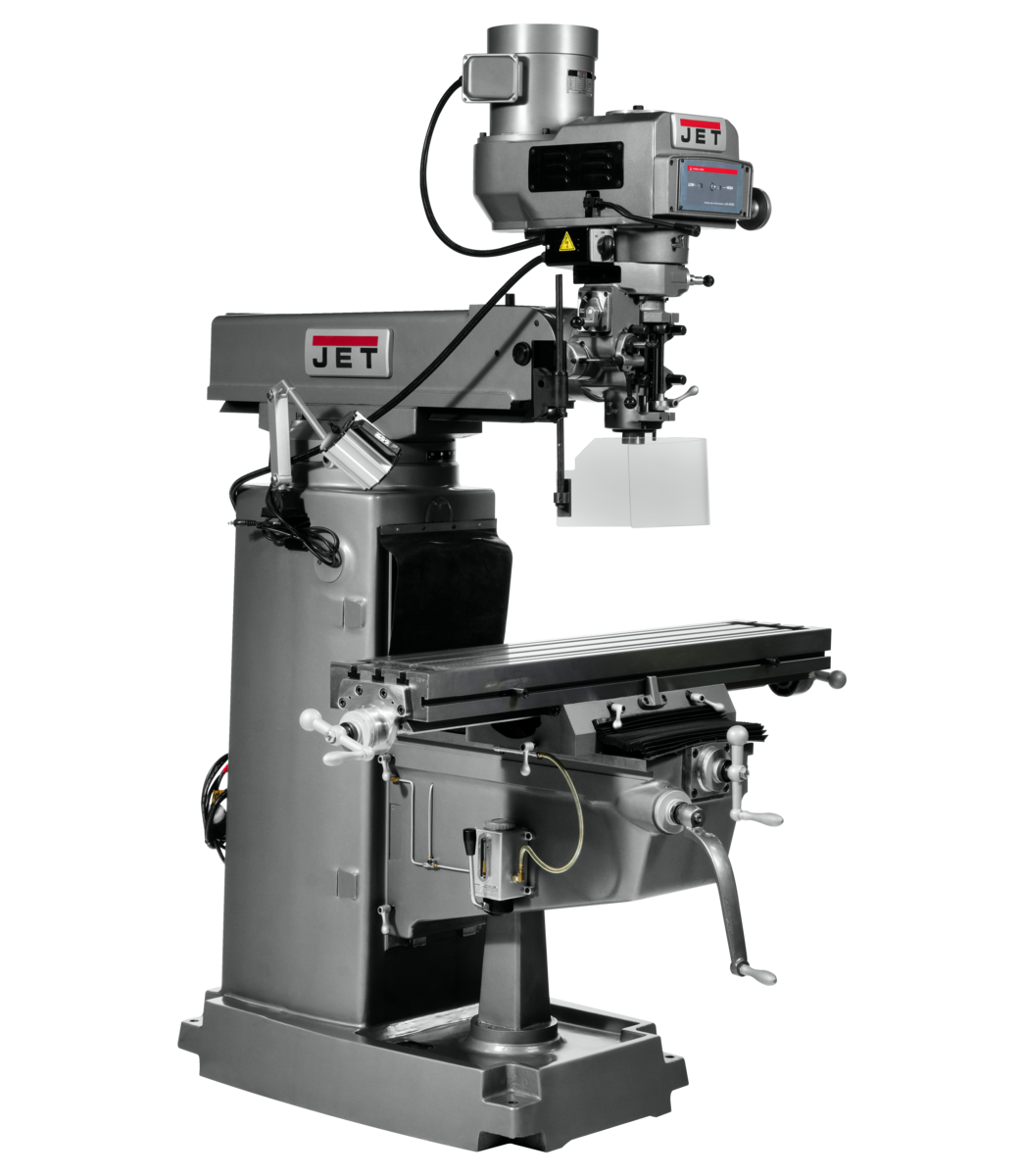

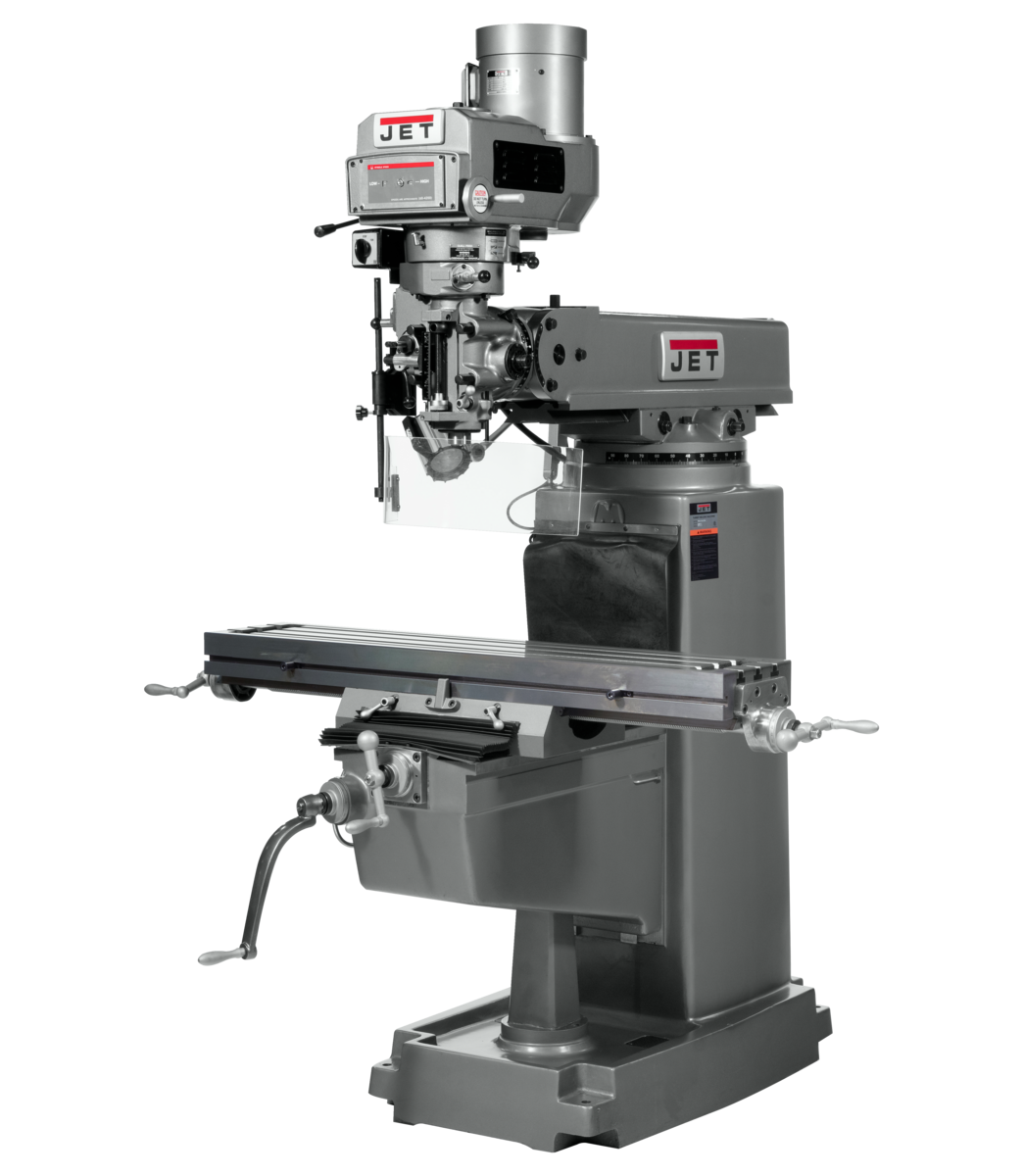

Jet JTM-1050VS2 Mill With ACU-RITE 203 DRO With X-Axis Powerfeed 690117

Jet JTM-1050VS2 Mill With ACU-RITE 203 DRO With X-Axis Powerfeed 690117 is a JET product in the Milling Machines collection.

Product Details

• Adjustable gibs throughout
• Chrome lead screws on X and Y axis
• Chrome-plated motor shaft with bearing support at end
• Hardened and ground square vertical knee ways and cross ways
• Heavy duty motor drive
• The JET JTM-1050VS2 features Certified Meehanite® castings, a heavy-duty hardened and ground 10” x 50” table, and high precision class 7 precision bearings support the spindle. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty.
• Internal coolant tank built into base for use with coolant system (Coolant pump not included)
• Large Diameter quill is chromed
• One shot lubrication system
• Spindle head is internally cooled
• Tolerance test sheet included
• Specification: Value
• Powerfeed: X-Axis
• Spindle Travel (In.): 5
• Style (Type): Variable Speed R8
• Number of Axis: 2
• Table Size (L x W) (In.): 10 x 50
• Weight (Lbs.): 2900
• Spindle Taper (In. x TPI): R-8
• Max Distance Spindle to Table (In.): 19
• Distance Spindle to Column (Max.) (In.): 26
• Quill Diameter (In.): 3-3/8
• Range of Spindle Speeds (RPM): 70 – 3,800
• Collet Capacity: 1/8 – 7/8
• Table Longitudinal Travel (In.): 35
• Quill Down Feed Rates (IPR): .0015 – .003 – .006
• Table Longitudinal Travel With Powerfeed (In.): 29-3/4
• Table Cross Travel (In.): 15-1/4
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 720
• Travel of Knee (In.): 14-1/4
• Travel of Ram (In.): 20-1/2
• Motor (HP): 3 HP, 230/460V, 3Ph
• Overall Dimensions (L x W x H) (In.): 96 x 78 x 88
• Height: 75.0000
• Length: 78.0000
• Weight: 2780.0000
• Width: 78.0000

Specifications

• Manufacturer: JET
• SKU: JT9-690117
• UPC: 662755137136
• Shipping Method: LTL Freight
• Weight: 2,780 lb
• Dimensions: 78 × 78 × 75 in
• Country of Origin: Taiwan
