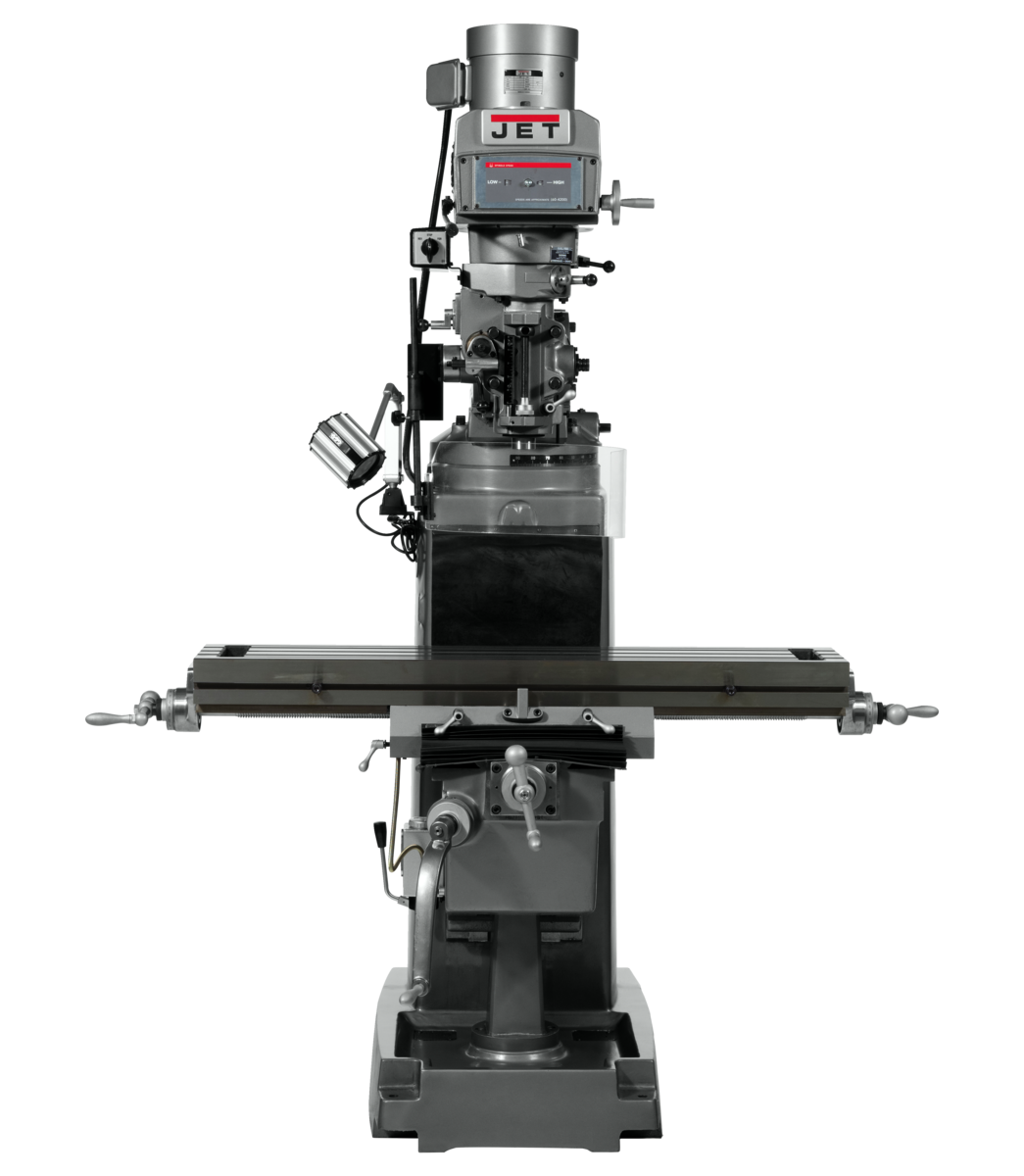

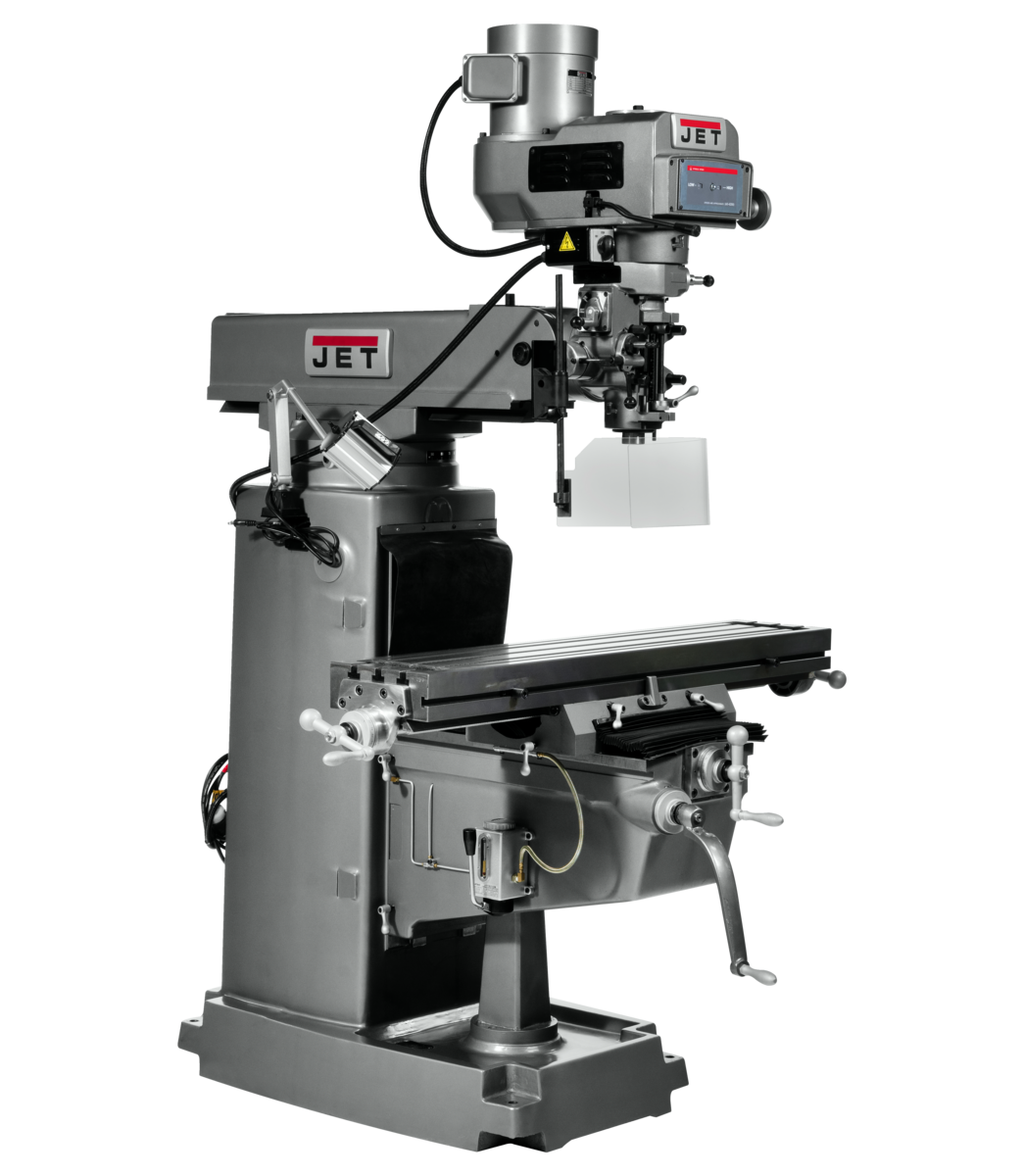

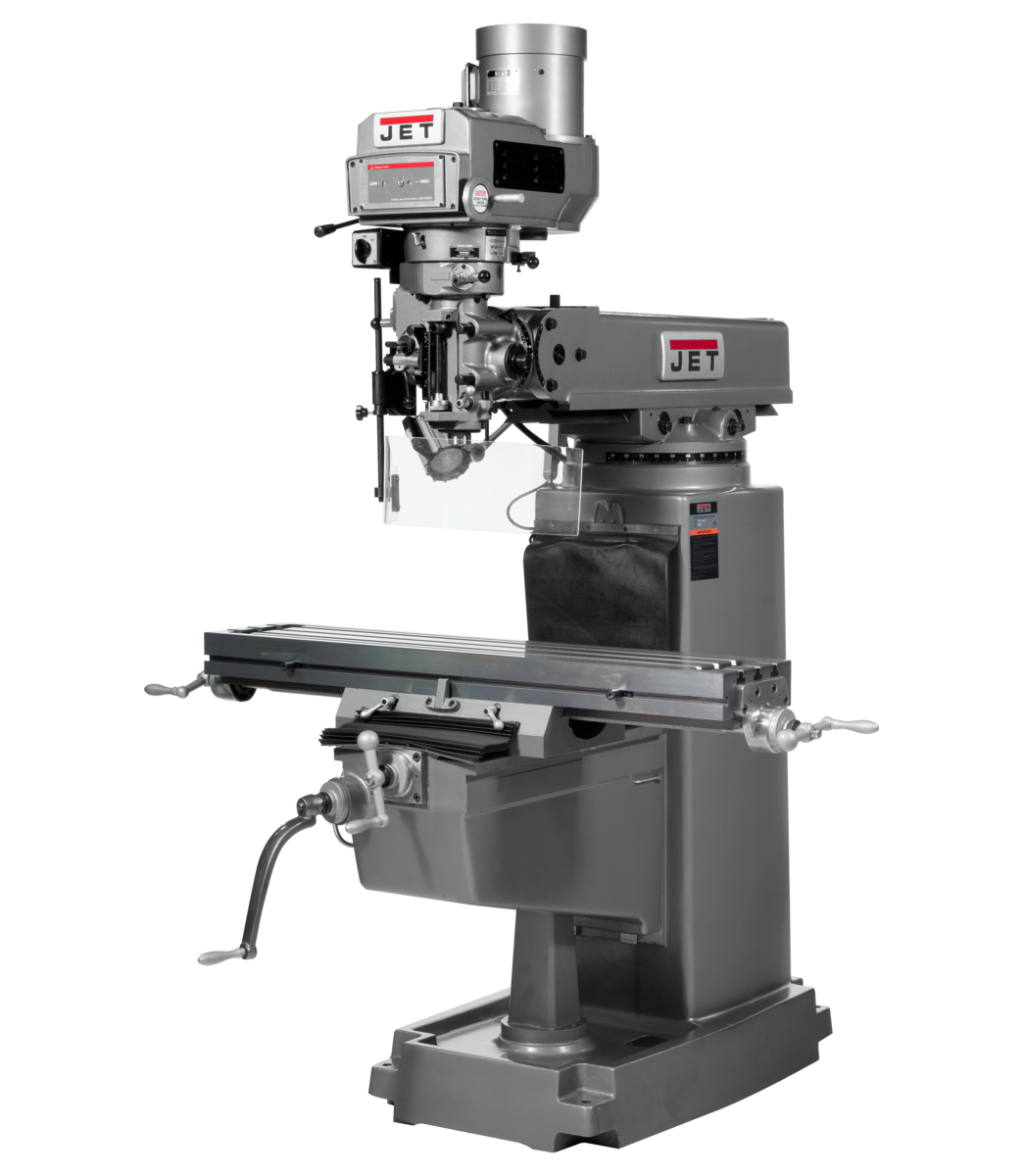

Jet JTM-1050VS2 Mill With 3-Axis Newall DP700 DRO (Quill) With X, Y and Z-Axis Powerfeeds And Power Draw Bar 690234

Jet JTM-1050VS2 Mill With 3-Axis Newall DP700 DRO (Quill) With X, Y and Z-Axis Powerfeeds And Power Draw Bar 690234 is a JET product in the Milling Machines collection.

Product Details

• Adjustable gibs throughout
• Chrome lead screws on X and Y axis
• Chrome-plated motor shaft with bearing support at end
• Hardened and ground square vertical knee ways and cross ways
• Heavy duty motor drive
• Featuring Meehanite® castings, a heavy-duty hardened and ground 10” x 50” table, and high precision class 7 precision bearings support the spindle, this Variable Speed Milling Machine provides consistent and reliable operation. An internal coolant tank is built into base for use with a coolant system (coolant pump not included). The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you've come to expect and are backed by the industry-leading JET Two Year Warranty.
• Locks on all moveable surfaces
• One shot lubrication system
• Spindle head is internally cooled
• Three stage power downfeed with automatic stop
• Tolerance test sheet included
• Specification: Value
• Powerfeed: X, Y, Z-Axis
• Spindle Travel (In.): 5
• Style (Type): Variable Speed R8
• Number of Axis: 3 (Quill)
• Power Draw Bar: Pneumatic
• Table Size (L x W) (In.): 10 x 50
• Weight (Lbs.): 2900
• Spindle Taper (In. x TPI): R-8
• Max Distance Spindle to Table (In.): 19
• Distance Spindle to Column (Max.) (In.): 26
• Range of Spindle Speeds (RPM): 70 – 3,800
• Quill Diameter (In.): 3-3/8
• Collet Capacity: 1/8 – 7/8
• Quill Down Feed Rates (IPR): .0015 – .003 – .006
• Table Longitudinal Travel (In.): 35
• Table Longitudinal Travel With Powerfeed (In.): 29-3/4
• Table Cross Travel (In.): 15-1/4
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 720
• Travel of Knee (In.): 14-1/4
• Travel of Ram (In.): 20-1/2
• Motor (HP): 3 HP, 230/460V, 3Ph
• Overall Dimensions (L x W x H) (In.): 96 x 78 x 88
• Height: 0.0000
• Length: 0.0000
• Weight: 2900.0000
• Width: 0.0000

Specifications

• Manufacturer: JET
• SKU: JT9-690234
• UPC: 731325242041
• Shipping Method: LTL Freight
• Weight: 2,900 lb
• Dimensions: 1 × 1 × 1 in
• Country of Origin: Taiwan
