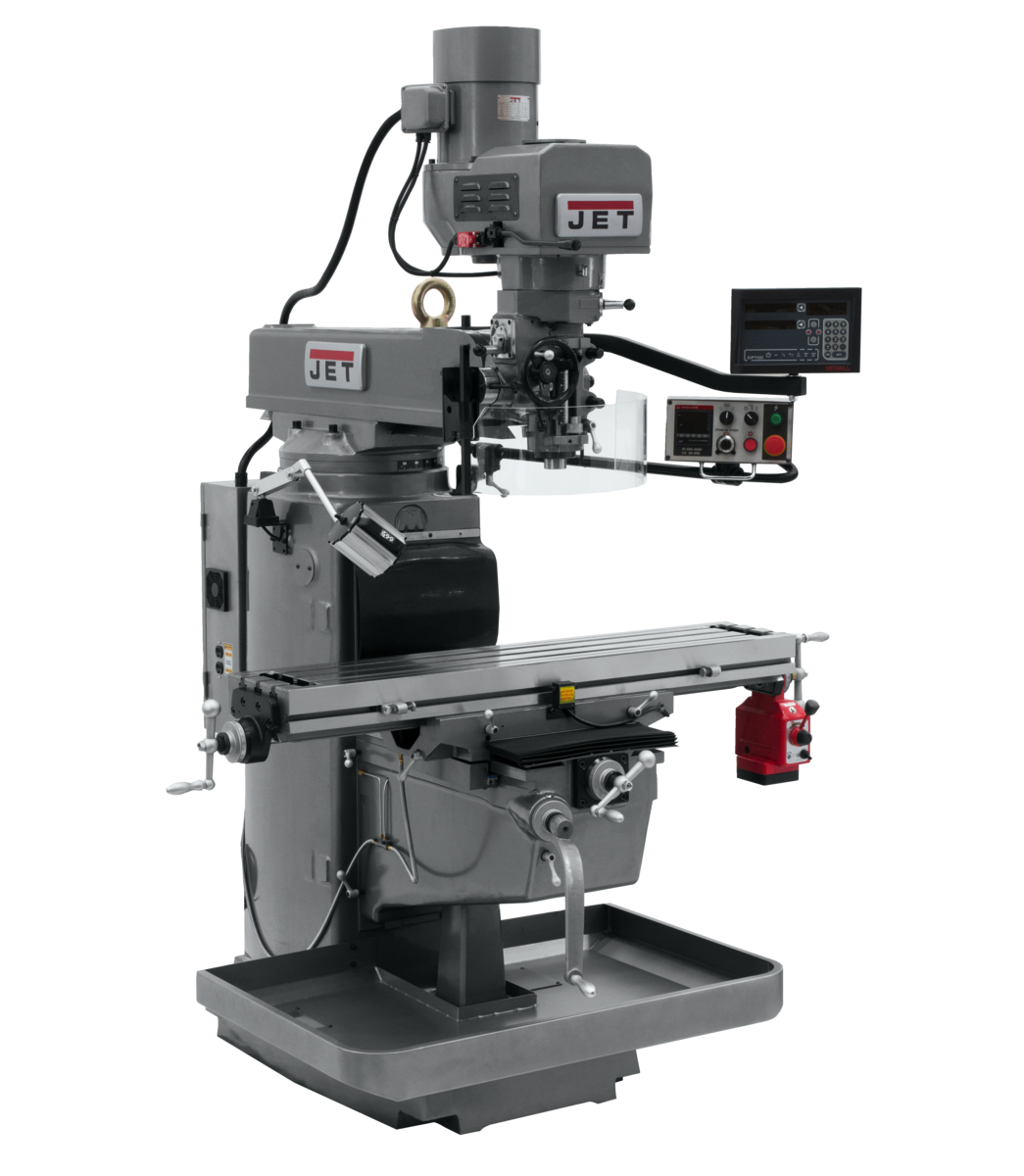

Jet JTM-1050EVS2/230 Mill With 3-Axis Newall DP700 DRO (Knee) With X-Axis Powerfeed 690639

Jet JTM-1050EVS2/230 Mill With 3-Axis Newall DP700 DRO (Knee) With X-Axis Powerfeed 690639 is a JET product in the Milling Machines collection.

Product Details

• Automatic oiler releases 3 to 6 cc/cy of lubrication at adjustable time intervals
• Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
• Dual locks on all moveable surfaces
• Spindle head is internally cooled extending bearing, belt and motor life
• Swing away control box houses an e-stop and puts all controls at the operators fingertips
• Constructed using the Certified Meehanite® casting process, the JTM-1050EVS2/230, 10" x 50" Electronic Variable Speed Milling Machine provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you've come to expect and are backed by the industry-leading JET Two Year Warranty with products CSA/CUS Certified.

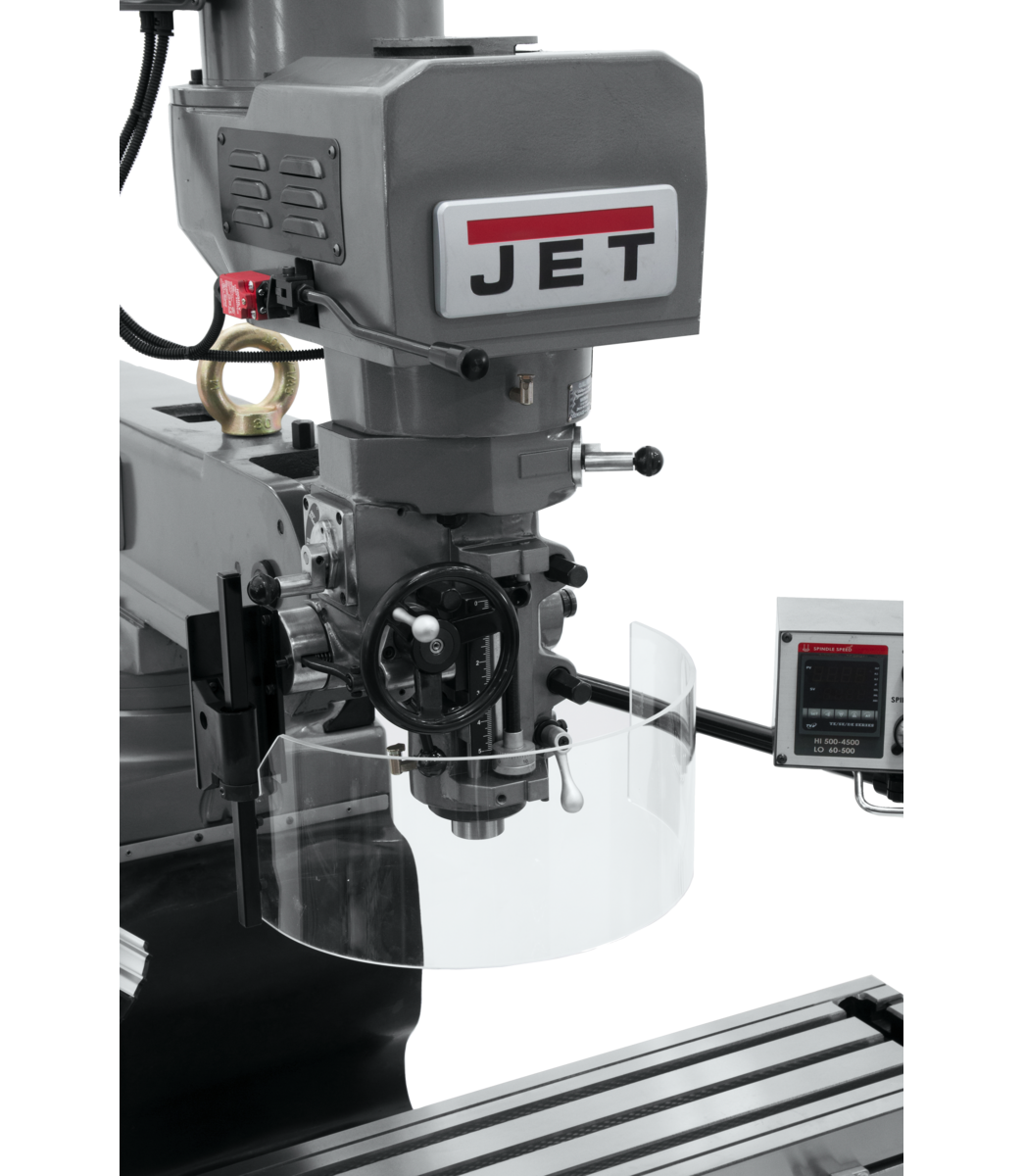

• Swing away safety shield
• Table and ways are hardened up to 54 HRC and precision ground for greater accuracy
• The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
• The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
• The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements
• Specification: Value
• Powerfeed: X-Axis
• Spindle Travel (In.): 5
• Style (Type): EVS
• Number of Axis: 3 (Knee)
• Table Size (L x W) (In.): 10 x 50
• Weight (Lbs.): 2860
• Spindle Taper (In. x TPI): R-8
• Max Distance Spindle to Table (In.): 20-3/4
• Distance Spindle to Column (Max.) (In.): 26-3/4
• Quill Diameter (In.): 3-3/8
• Range of Spindle Speeds (RPM): 60 – 4,500
• Collet Capacity: 1/8 – 7/8
• Quill Down Feed Rates (IPR): .0015 – .003 – .006
• Table Longitudinal Travel (In.): 35-1/3
• Table Longitudinal Travel With Powerfeed (In.): 29-7/8
• Table Cross Travel (In.): 14-3/4
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 840
• Travel of Knee (In.): 16-1/8
• Travel of Ram (In.): 15-7/8
• Saddle Width (In.): 11-1/2
• Column Width (In.): 20
• Motor (HP): 3 HP, 230V, 3Ph
• Inverter Type: Delta, B
• Overall Dimensions (L x W x H) (In.): 66 x 63 x 87
• Length: 66.0000
• Height: 87.0000
• Weight: 2580.0000
• Width: 63.0000

Specifications

• Manufacturer: JET
• SKU: JT9-690639
• UPC: 731325452396
• Shipping Method: LTL Freight
• Weight: 2,580 lb
• Dimensions: 66 × 63 × 87 in
• Country of Origin: Taiwan
