Jet JMD-45VSPF Variable Speed Square Column Geared Head Mill/Drill 351050

Jet JMD-45VSPF Variable Speed Square Column Geared Head Mill/Drill 351050 is a JET product in the Milling Machines collection.

Product Details

• Easy to read internal depth gauge
• Full power to the cutting tools through Variable Speed geared head
• Heavy-duty design allows for a variety of precision drilling applications

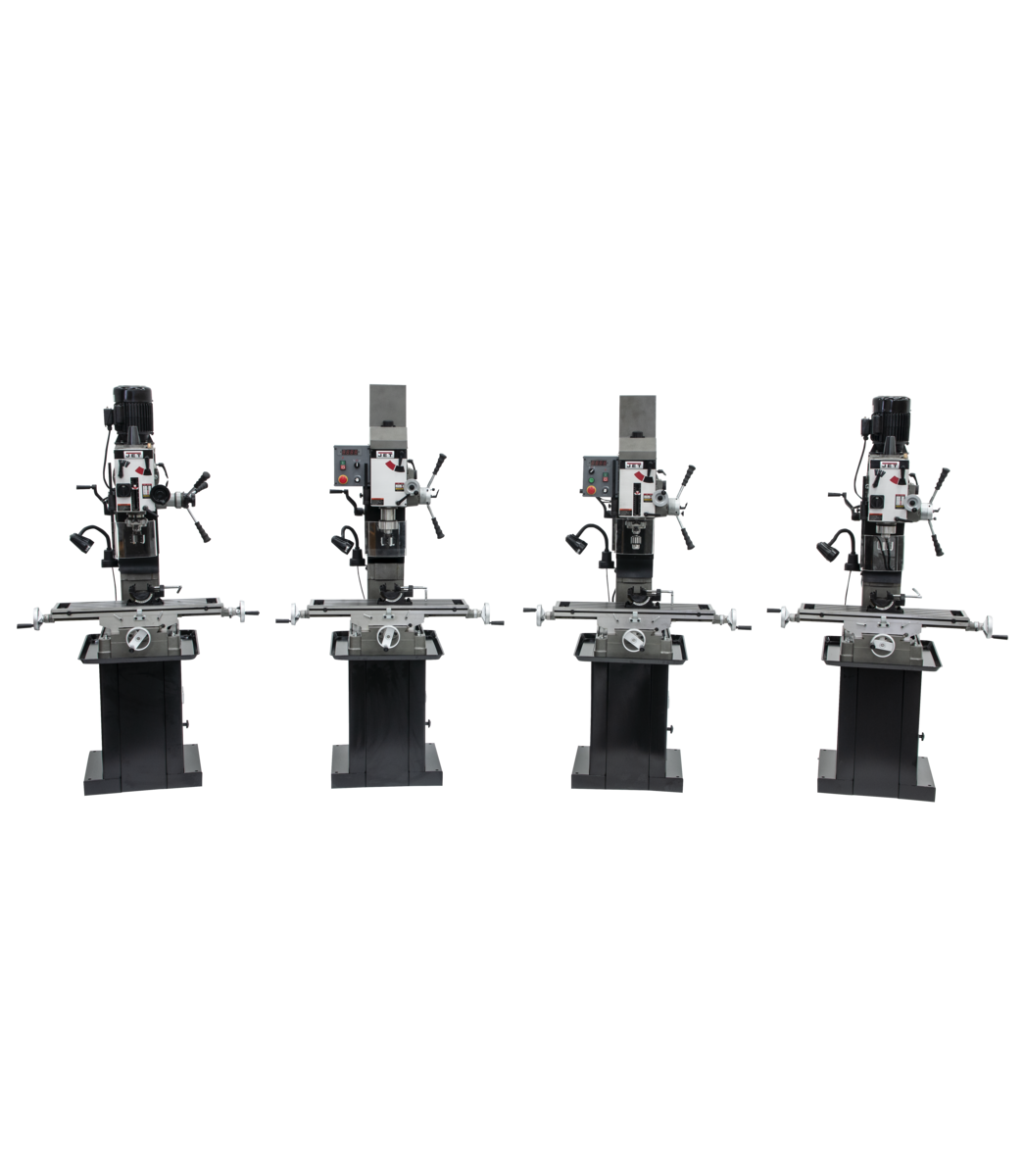

• Mill Drill Stand, p/n 350045, shown in some images, is optional
• Milling table allows for movement
• Engineered to maximize production, the heavy-duty JMD-45VSPF variable speed Square Column Geared Head Mill Drill with power downfeed capability delivers the rigidity needed to perform a variety of precision drilling applications in high intensity environments. CSA/CUS Certified.
• R8 spindle allows use of all mill tooling
• Rapid spindle speed changes through quick-select gear shift levers
• Square column with dovetail ways
• Specification: Value
• Swing (In.): 19-11/16
• Face Mill Capacity (In.): 4
• Table Size (L x W) (In.): 9-1/2 x 32-1/4
• Weight (Lbs.): 827
• Spindle Taper (In. x TPI): R8
• Max Distance Spindle to Table (In.): 18-1/8
• Spindle Travel Auto (In.): 4-1/4
• Quill Diameter (In.): 3
• Range of Spindle Speeds (RPM): 50-2500
• Table Longitudinal Travel (In.): 20-1/2
• Table Cross Travel (In.): 8-1/4
• Base Dimensions (In.): 26-11/16 x 15-15/16
• Motor (HP): 1-1/2HP, 115/230V, 1Ph
• Overall Dimensions (L x W x H) (In.): 29 x 36 x 50
• Height: 60.0000
• Length: 46.8500
• Width: 36.4000
• Weight: 827.0000

Specifications

• Manufacturer: JET
• SKU: JT9-351050
• UPC: 731325512915
• Shipping Method: LTL Freight
• Weight: 827 lb
• Dimensions: 46.85 × 36.4 × 60 in
• Country of Origin: Taiwan
