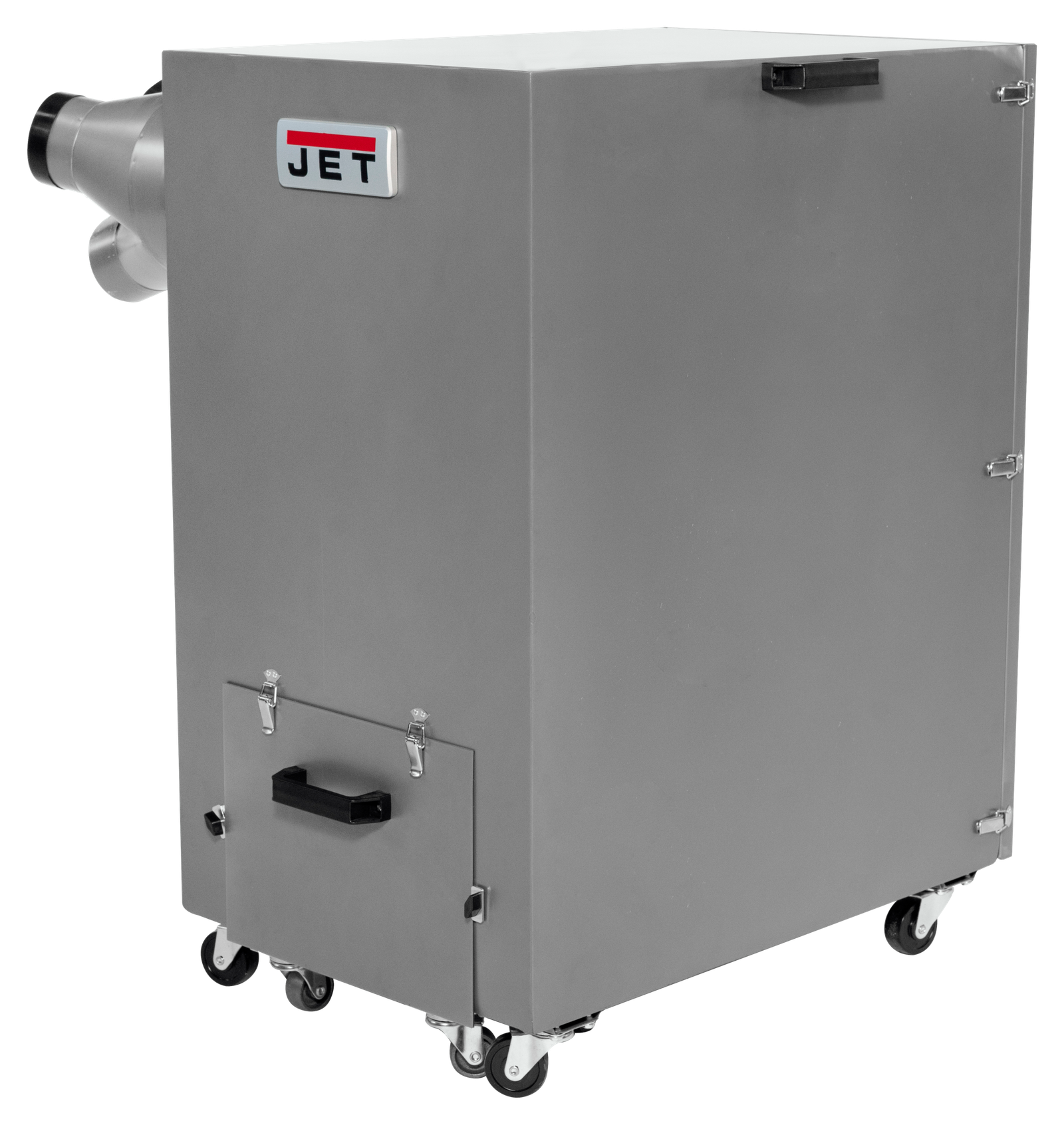

Jet JDC-510 957CFM Industrial Dust Collector 3HP, 220V, Single Phase 414900

Jet JDC-510 957CFM Industrial Dust Collector 3HP, 220V, Single Phase 414900 is a JET product in the Grinding & Sanding collection.

Product Details

• CSA/US: Following strict guidelines and electrical requirements, this JET Industrial Dust Collector is CSA/US certified
• Simple and easy to clean-out chip & dust drawer
• Easy to change exhaust filter
• All steel construction
• Non-sparking aluminum housing and fan blade
• JET's new 412CFM Industrial Dust Collector is great for collecting abrasive dust from Belt & Disc finishing and grinding machines. Chips and dust collect into a metal drawer that is easy to clean. Three 3 dust chutes allows you to attached to multiple machines. The convenient casters allow for use throughout your shop. Enhance the health and safety levels in your shop with JET."
• Portable on 4 casters and 2 handles for ease of movement
• Quiet, effective dust collection method
• Specification: Value
• Air Flow (CFM) (High): 957 @ 8" Inlet 412 @ 3" Inlet
• Style (Type): Dust Collector
• Maximum CFM: 490
• Filter Size (W x L x D) (In.): 19-3/8 x 25 x 1-25/32
• Weight (Lbs.): 212
• Sound Rating (Db.): 75
• Filter Type: Anti-Spark / Fireproof
• Dust Port Size (In.): 3
• Electrics: 3HP, 220V, 1Ph
• Motor (HP): 3HP, 220V, 1Ph
• Motor Phase: 1
• Motor Voltage (V.): 220
• Overall Dimensions (L x W x H) (In.): 30-5/8 x 20-7/8 x 29
• Motor Amps: 15
• Net Weight (Lbs.): 212
• Gross Weight (Lbs): 251
• Height: 29.0000
• Length: 30.6250
• Width: 20.8750
• Weight: 320.0000

Specifications

• Manufacturer: JET
• SKU: JT9-414900
• UPC: 731325806816
• Shipping Method: LTL Freight
• Weight: 320 lb
• Dimensions: 30.63 × 20.88 × 29 in
• Country of Origin: Taiwan
• Warranty: 1 Year (Parts)
