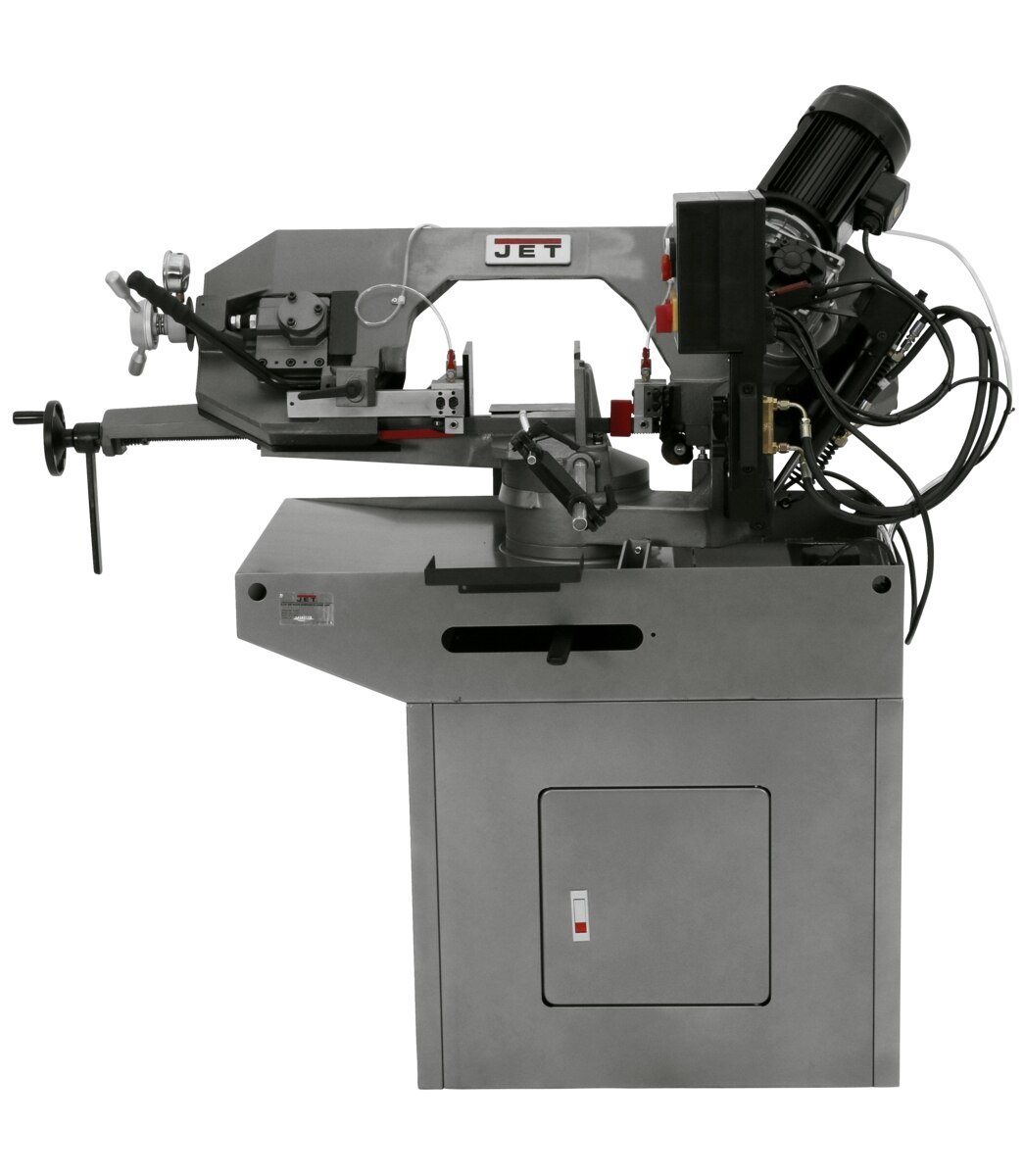

Jet J-7040M-4, 10″ x 16″ Horizontal Mitering Bandsaw 414484

Jet J-7040M-4, 10″ x 16″ Horizontal Mitering Bandsaw 414484 is a JET product in the Band Saws collection.

Product Details

• Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
• Adjustable Material Stop
• Cast iron blade wheels
• Downfeed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder
• Heavy-duty transmission utilizes hardened and ground gears operating in an oil bath
• JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.
• Mitering head swivels to cut any angle 0° – 45° while the work piece remains secured
• Swing away control panel houses major saw controls
• Blade rides on two load bearings mounted on a pivot shaft with the side bearings and carbide pads assisting in distributing the load equally
• Variable speed drive system
• Specification: Value
• Round at 45 Degrees (In.): 8-1/2
• Round at 90 Degrees (In.): 10
• Rectangle at 45 Degrees (In.): 8-1/2 x 9
• Rectangle at 90 Degrees (In.): 10 x 14 and 2 x 16
• Vise Swivels (Deg.): 45°
• Weight (Lbs.): 924
• Blade Wheel Diameter (In.): 14
• Motor (HP): 2 HP, 460, 3Ph
• Overall Dimensions (L x W x H) (In.): 76 x 30 x 48
• Prewired Voltage (V.): 460
• Drive: Variable Speed
• Height: 48.0000
• Length: 76.0000
• Width: 30.0000
• Weight: 1200.0000

Specifications

• Manufacturer: JET
• SKU: JT9-414484
• UPC: 662756091048
• Shipping Method: LTL Freight
• Weight: 1,200 lb
• Dimensions: 76 × 30 × 48 in
• Country of Origin: Taiwan
