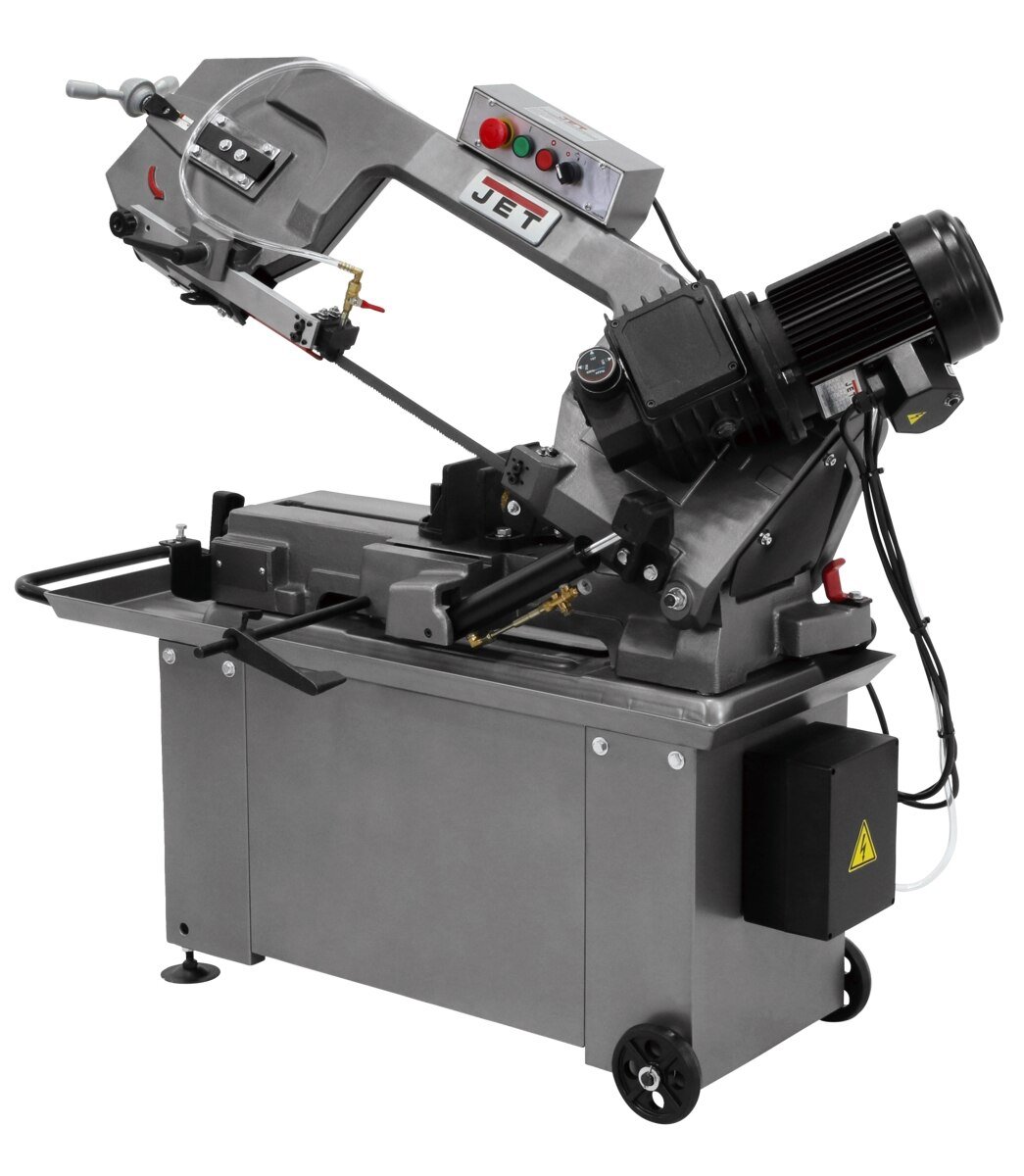

Jet HBS-814GH, 8″ x 14″ Horizontal Geared Head Bandsaw 414466

Jet HBS-814GH, 8″ x 14″ Horizontal Geared Head Bandsaw 414466 is a JET product in the Band Saws collection.

Product Details

• Adjustable Material Stop
• Built-in, self-propelled blade brush extends blade life
• Easily accessible saw control panel
• Fully adjustable hydraulic downfeed system
• Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels
• The JET HBS-814GH was engineered with the operator in mind. An easy access control panel and heavy-duty geared head transmission for quick speed change means productivity never slows. Like every JET machine we manufacture, professionals know they can rely on this saw when the project is on the line.
• Heavy-duty geared head transmission for quick speed changes
• Quick-positioning vise with fully adjustable jaws
• Quick-positioning vise with fully adjustable jaws, swivels to 45°
• Wheels permit easy storage and movement
• Specification: Value
• Blade Speeds (SFPM): 135, 197, 256
• Round at 45 Degrees (In.): 6-1/2
• Round at 90 Degrees (In.): 8
• Rectangle at 45 Degrees (In.): 6-1/2 x 6 and 2 x 7
• Rectangle at 90 Degrees (In.): 14 x 8 and 2 x 14
• Vise Swivels (Deg.): 45°
• Weight (Lbs.): 287
• Blade Wheel Diameter (In.): 12
• Bed Height (In.): 26
• Motor (HP): 1 HP, 115/230V, 1Ph
• Overall Dimensions (L x W x H) (In.): 51-1/2 x 18-1/8 x 44
• Drive: Geared Head
• Height: 0.0000
• Length: 0.0000
• Width: 0.0000
• Weight: 342.0000

Specifications

• Manufacturer: JET
• SKU: JT9-414466
• UPC: 662755523434
• Shipping Method: LTL Freight
• Weight: 342 lb
• Dimensions: 53.5 × 19 × 51 in
• Country of Origin: Taiwan
