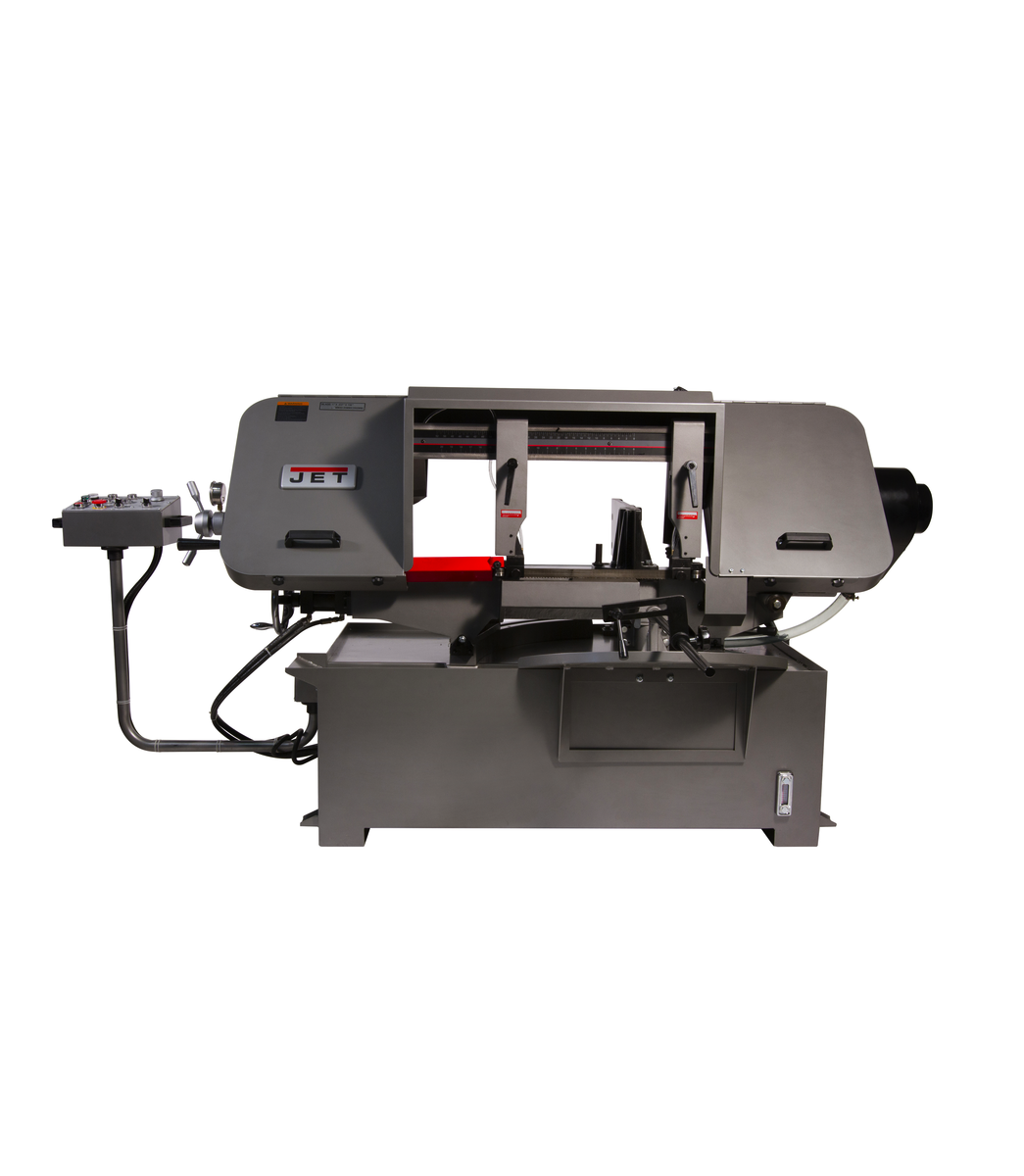

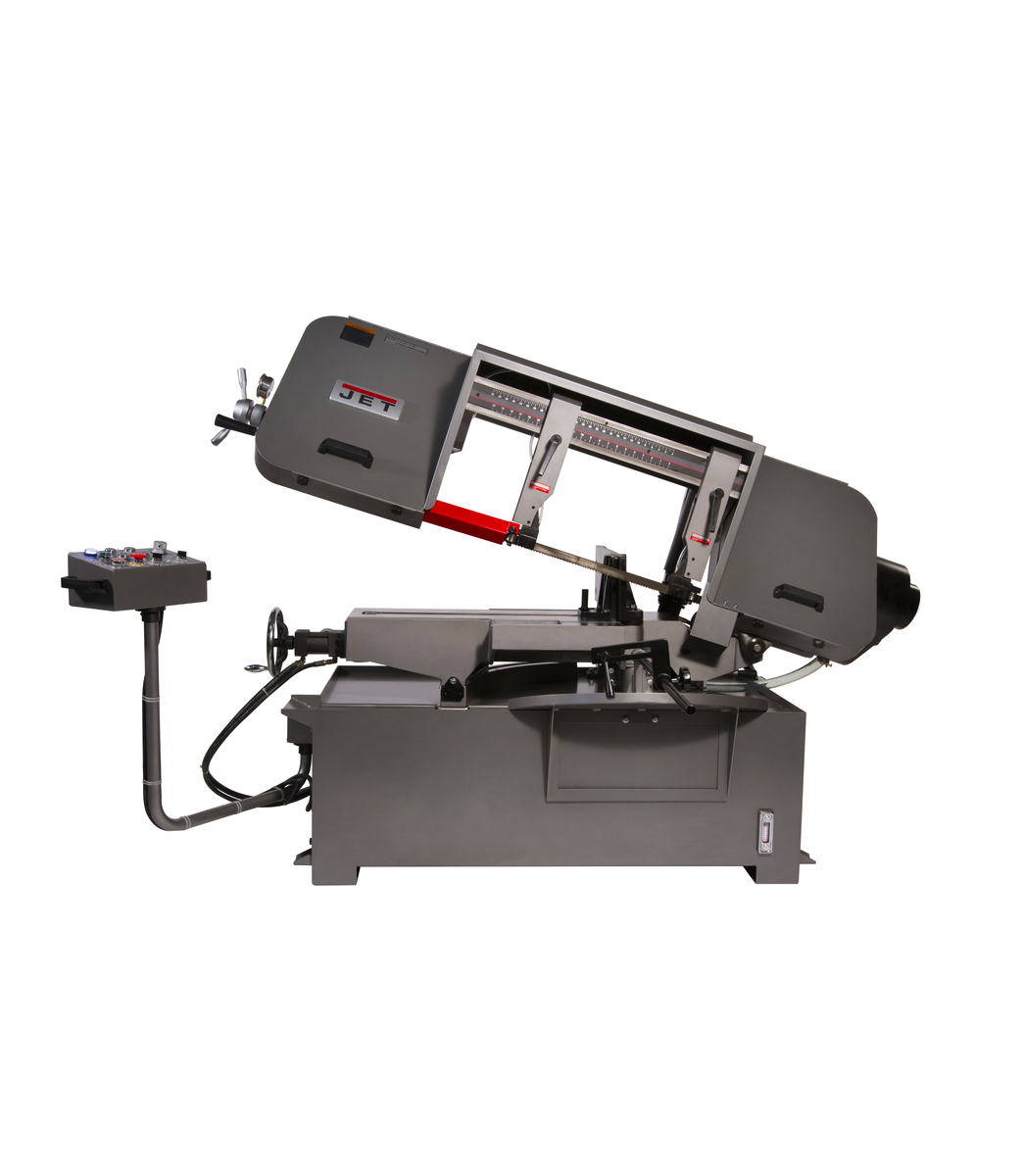

Jet HBS-1220MSAH, 12″ x 20″ Semi-Automatic Mitering Variable Speed Bandsaw with Hydraulic Vise 424475

Jet HBS-1220MSAH, 12″ x 20″ Semi-Automatic Mitering Variable Speed Bandsaw with Hydraulic Vise 424475 is a JET product in the Band Saws collection.

Product Details

• Automatic blade breakage sensor detects accidental breakage and interrupts the power
• Auxiliary roller support on back of vise
• Blade is fully guarded for Operator safety
• Built-in, self-propelled blade brush prevents chip build up in blade guides
• Circulating coolant system through both blade guides
• This JET large capacity , semi-automatic horizontal bandsaw is loaded with features that allow the operator the ability to fine tune the blade speed easily and quickly on a convenient swing away control panel. The sturdy head raises automatic while the mitering head allows the user to cut up to a 45° angle. The hydraulic downfeed control is easily adjusted, enabling feed rates to evolve with various types of material while the hydraulic vise makes set up easier for the operator. CSA/CUS Certified.
• One piece blade cover makes changing blades extremely easy
• Semi-automatic bow raises after cut to predetermined height
• Specification: Value
• Round at 45 Degrees (In.): 11-7/32
• Round at 90 Degrees (In.): 11-13/16
• Rectangle at 45 Degrees (In.): 12-9/16 x 11-7/32
• Head Movement (Deg.): 45
• Maximum Vise Opening (In.): 19-5/8
• Motor (HP): 3 HP , 230/460V, 3-Ph
• Overall Dimensions (L x W x H) (In.): 87-3/4 x 31.5 x 53
• Height: 53.0000
• Length: 87.7000
• Weight: 1625.0000
• Width: 32.3000

Specifications

• Manufacturer: JET
• SKU: JT9-424475
• UPC: 731325750829
• Shipping Method: LTL Freight
• Weight: 1,625 lb
• Dimensions: 87.7 × 32.3 × 53 in
• Country of Origin: Taiwan
