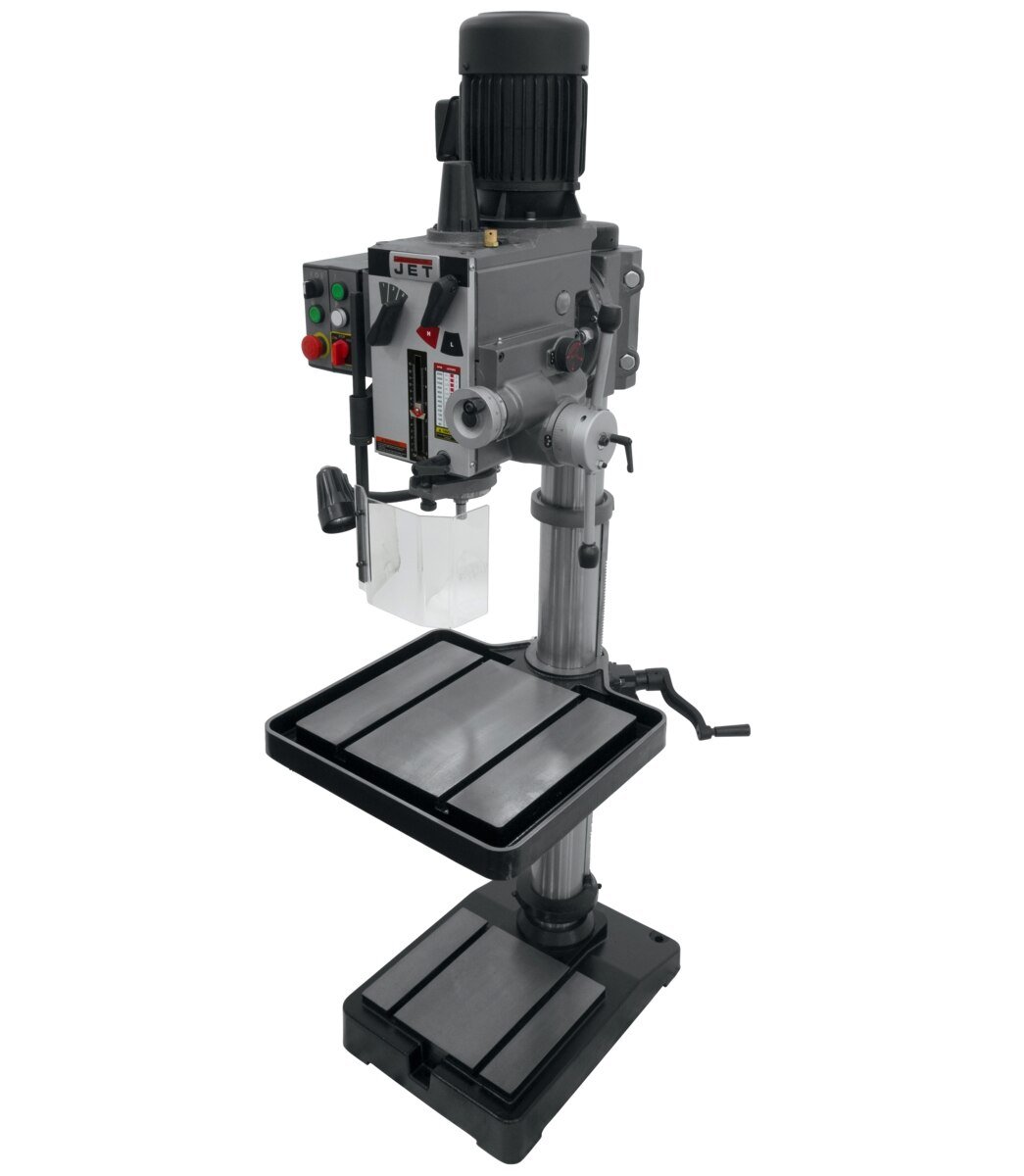

Jet GHD-20PFT, 20″ Gear Head Tapping Drill Press With Power Down feed 230V, 3Ph 354026

Jet GHD-20PFT, 20″ Gear Head Tapping Drill Press With Power Down feed 230V, 3Ph 354026 is a JET product in the Drill Presses collection.

Product Details

• Easily accessible table raiser
• Head tilts left or right
• Heavy-duty design allows a variety of precision drilling and tapping applications
• Integrated tapping and reversing controls
• Large production table and T-slotted base
• Achieve precision drilling and tapping from a design that includes an easy-to-read internal depth gauge, power downfeed speed selector, built-in spindle lock and calibrated fine down feed. JET backs this reliable combination drilling and tapping press with a Two Year Warranty.
• Power downfeed speed selector
• Specification: Value
• Drills to Center of Circle (In.): 20
• Spindle Travel (In.): 4-1/2
• Style (Type): Geared Head
• Drilling Capacity Mild Steel (In.): 1-1/4
• Drilling Capacity Cast Iron (In.): 1-1/2
• Distance Column to Spindle (In.): 10
• Table Size (L x W) (In.): 21-3/4 x 19-1/2
• Tapping Capacity Mild Steel (In.): 15/16
• Tapping Capacity Cast Iron (In.): 15/16
• Spindle Distance to Base (In.): 44-5/16
• Weight (Lbs.): 708
• Spindle Distance to Table (Max.) (In.): 30-1/2
• Spindle Taper (In. x TPI): MT-3
• Range of Spindle Speeds (RPM): 60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000
• Table Travel (In.): 25-1/2
• Quill Diameter (In.): 3
• Quill Feed: Manual
• T-Slot Centers (In.): 9
• Work Table Weight Capacity (Lbs.): 275
• Base Work Table (In.): 15-1/4 x 13
• Column Diameter (In.): 4-1/2
• Base Dimensions (In.): 26 x 18
• Motor (HP): 2 HP (2 Speed) , 230V, 3Ph
• Overall Dimensions (L x W x H) (In.): 32 x 24 x 71
• Height: 0.0000
• Length: 0.0000
• Weight: 708.0000
• Width: 0.0000

Specifications

• Manufacturer: JET
• SKU: JT9-354026
• UPC: 662755161469
• Shipping Method: LTL Freight
• Weight: 708 lb
• Dimensions: 1 × 1 × 1 in
• Country of Origin: Taiwan
