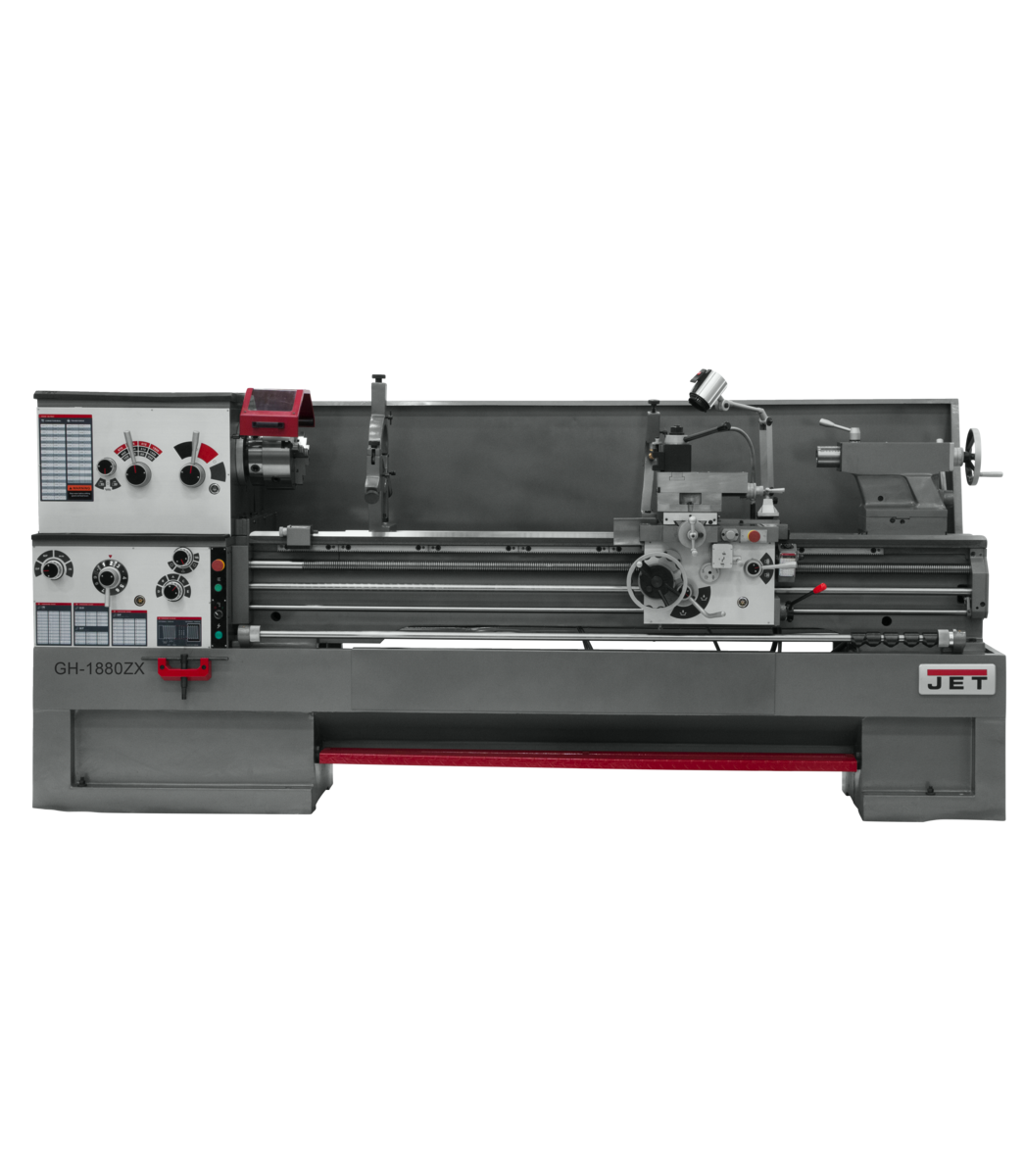

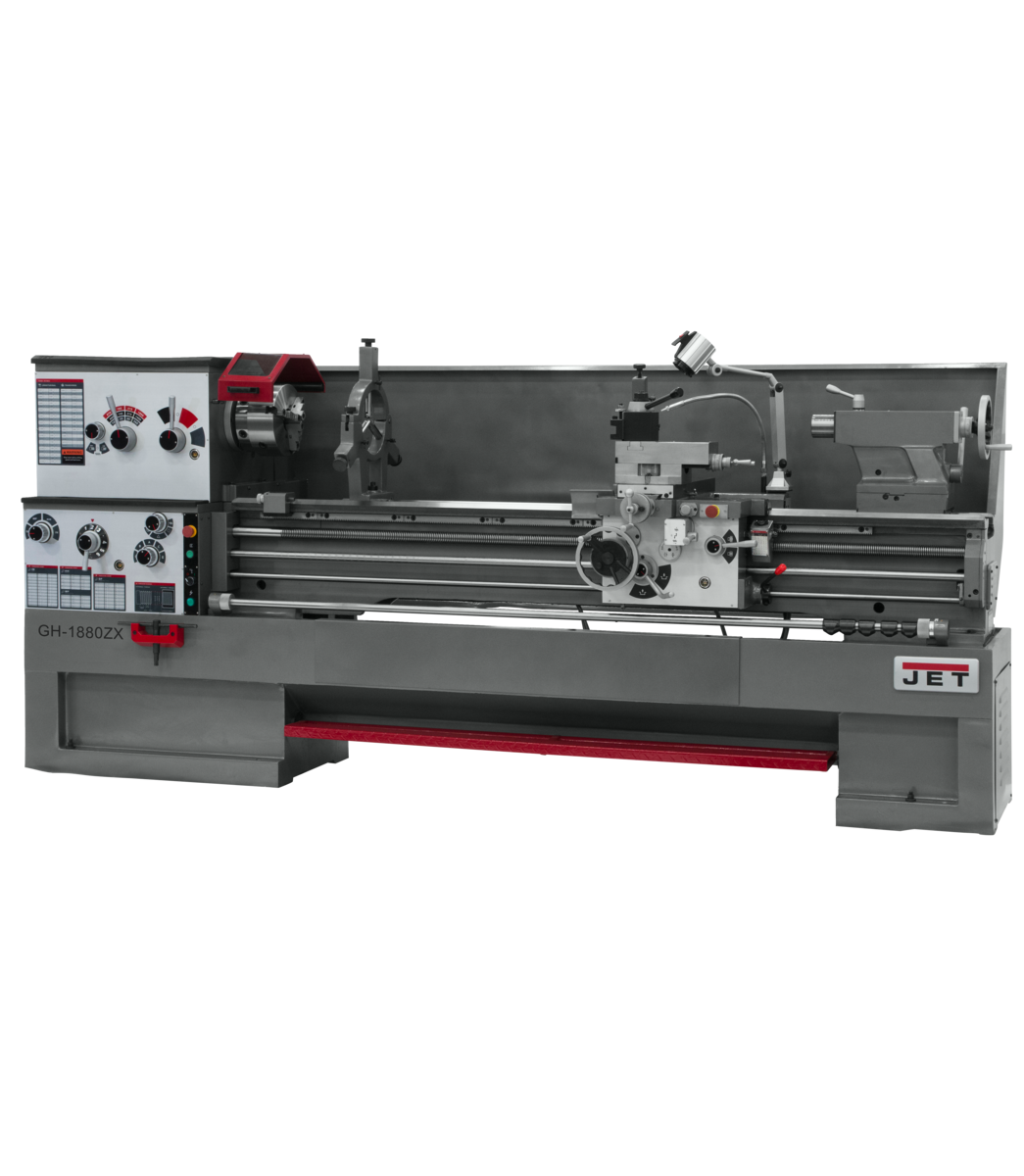

Jet GH-1880ZX With ACU-RITE 203 DRO With Taper Attachment 321560

Jet GH-1880ZX With ACU-RITE 203 DRO With Taper Attachment 321560 is a JET product in the Lathes collection.

Product Details

• Articulating LED work lamp
• Centrally located controls with jog button
• Electronic Chuck Key Holder
• Five position automatic carriage stop increases productivity
• Full length splash guard and coolant return
• The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency, and reliability to your metal shop. A one-piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the universal gearbox eliminates the need to change gears. This lathe also features a 10” three jaw scroll chuck with top reversing jaws, and an e-stop on the carriage for increased operator safety. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
• Large capacity steady rest with ball bearing tips
• Large easy to use foot brake
• Mounting pads and levelers
• Removable gap allows large diameter work
• Tool box and adjusting tools
• Specification: Value
• Size: 18 x 80
• Style (Type): Engine – Large Spindle Bore
• Swing Over Bed (In.): 18
• Number of Spindle Speeds: 12
• Swing Over Cross Slide (In.): 11
• Swing Through Gap (In.): 27-1/2
• Length of Gap (In.): 12
• Spindle Bore (In.): 3-1/8
• Spindle Mount: D1-8
• Weight (Lbs.): 6590
• Range of Spindle Speeds (RPM): 25 – 1,800
• Spindle Taper with Sleeve: MT-7 (MT-5)
• Number of Longitudinal and Cross Feed Rates: 46/31
• Range of Longitudinal Feeds (IPR): .0015 – .0900
• Range of Cross Feeds (IPR): .0006 – .0360
• Number of Inch Threads: 61
• Range of Inch Threads (TPI): 1-5/8 – 72
• Number of Metric Threads: 24
• Range of Metric Threads: .05 – 20
• Max Tool Size (In.): 1 x 1
• Compound Slide Travel (In.): 5-1/8
• Cross Slide Travel (In.): 9
• Carriage Travel (In.): 74-5/16
• Motor (HP): 7-1/2 HP, 230/460, 3 Ph
• Tailstock Spindle Travel (In.): 5
• Taper in Tailstock Spindle: MT-5
• Steady Rest Capacity (In.): 3/8 – 7-3/4
• Width of Bed (In.): 13-1/8
• Overall Dimensions (L x W x H) (In.): 136 x 44 x 66
• Drive: Geared Head
• Height: 49.0000
• Length: 137.0000
• Width: 40.0000
• Weight: 7100.0000

Specifications

• Manufacturer: JET
• SKU: JT9-321560
• UPC: 662755515484
• Shipping Method: Flatbed
• Weight: 7,100 lb
• Dimensions: 137 × 40 × 49 in
• Country of Origin: China
