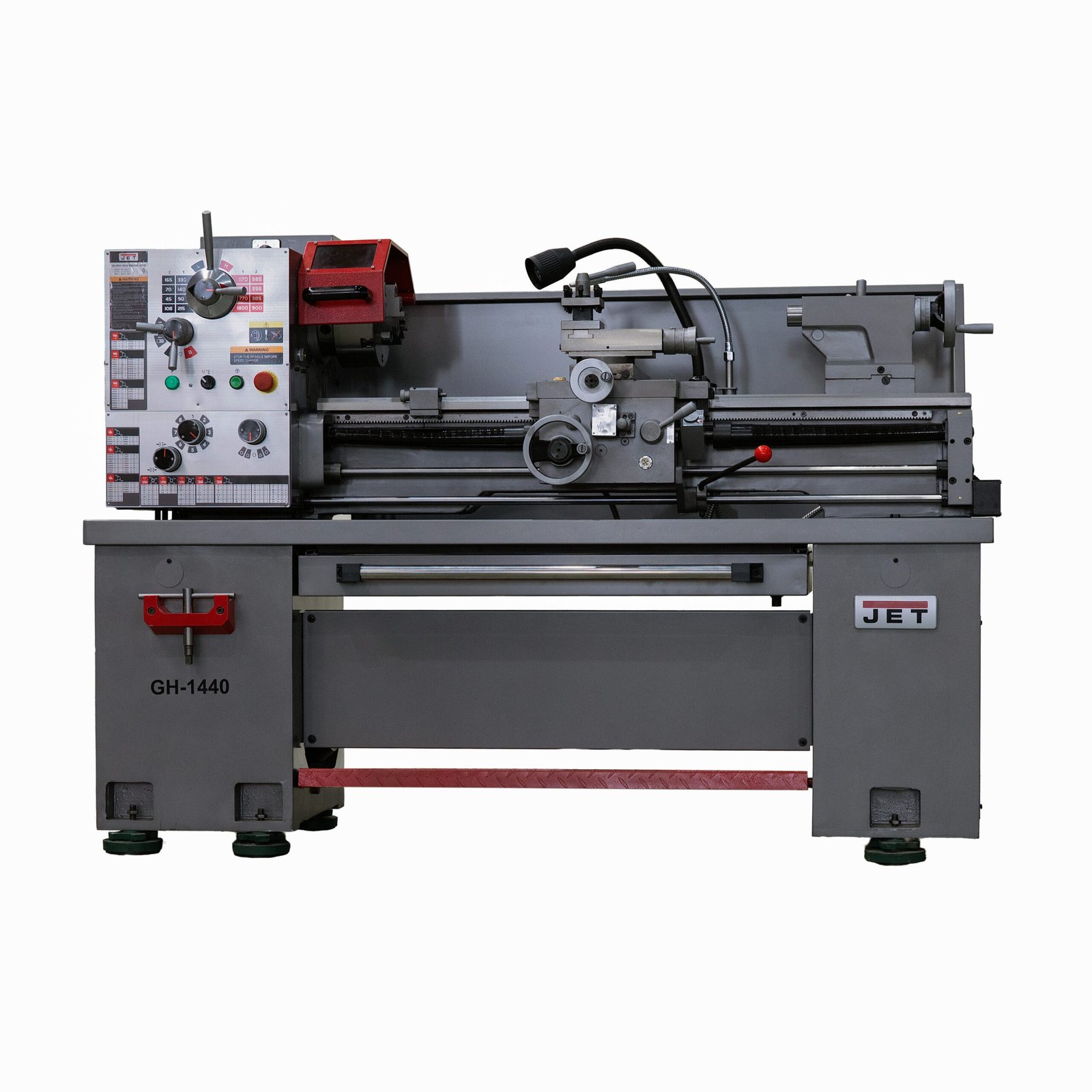

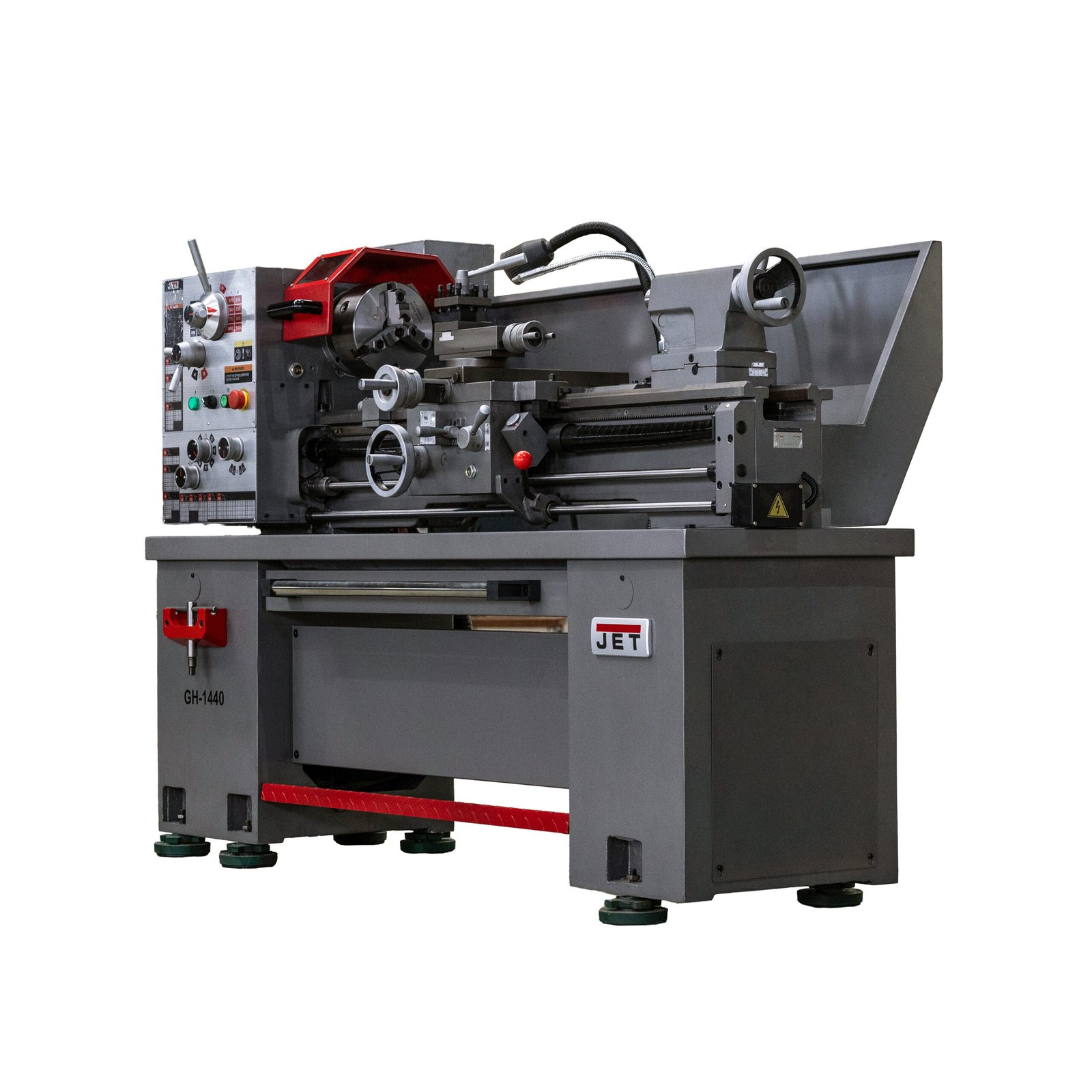

Jet GH-1440-1 14” x 40” Single Phase Gear Head Lathe with Newall NMS300 DRO JT1-3268

Jet GH-1440-1 14” x 40” Single Phase Gear Head Lathe with Newall NMS300 DRO JT1-3268 is a JET product in the Lathes collection.

Product Details

• 2” Spindle Bore
• 8 Spindle Speeds (90–1800 RPM)
• 3HP 230V 1 PH Motor
• 2-Axis Digital Readout (DRO)
• Description
• The JET GH-1440-1 14" x 40" Gear Head Engine Lathe is designed to help shops do more per shift with safer operation, clean containment, and dependable turning performance. Whether used in production machining, repair work, fabrication, or training environments, this machine balances power, capacity, and operator-focused safety.
• At the heart of the GH-1440-1 is a 3 HP, 1-phase motor driving an 8-speed gear head system with spindle speeds ranging from 90–1800 RPM, delivering consistent torque for turning, facing, drilling, boring, threading, grooving, and parting operations.
• The 2" spindle bore increases bar capacity, reduces secondary operations, and expands the range of workpieces your shop can handle. A D1-5 spindle nose supports secure chuck mounting and industrial rigidity.
• Unlike many competitor models that treat safety as optional, JET standardizes critical protective features:
• Foot brake for rapid spindle stops
• Chuck guard at the point of operation
• Lead screw cover to prevent chip contamination
• JET electronic chuck key holder to help prevent unsafe startups
• UL 987 electrical certification for compliant installation
• These features are confirmed during JET’s 30-Point Pre-Shipment Inspection, ensuring the lathe arrives cleaned, inspected, and ready to run.
• Built-in containment systems including a full-length splash guard, integrated coolant system, and chip tray keep the work area cleaner and reduce end-of-shift maintenance time.
• The result is a gear head engine lathe that delivers:
• Industrial durability
• Larger part capacity
• Cleaner operation
• Safer performance
• Predictable ownership costs
• Backed by a 2-Year Parts & Labor Warranty, nationwide service support, and U.S.-based technical assistance, the GH-1440-1 is built for long-term uptime.
• Features
• Large 2" spindle bore and 14" swing handle bigger stock and reduce secondary operations.
• Foot brake, chuck guard, lead screw cover, and JET e-chuck key holder come standard for controlled operation.
• Full-length splash guard, integrated coolant system, and chip tray contain chips and coolant.
• 3 HP motor and geared head drive system provide consistent torque across 8 speeds (90–1800 RPM).
• JET 30-Point Inspection ensures proper assembly, function testing, and safety validation.
• UL 987 Certified electrical system supports safer workplace installations.
• 2-year parts and labor warranty plus nationwide authorized service network.
• Included option: 2-Axis Digital Readout (DRO)
• Specifications
• Stock Number: JT1-3268
• Compound Slide Travel (In.): 6.45”
• Drive: Geared Head
• Length of Gap (In.): 7.5”
• Max Tool Size (In.): 5/8”
• Model Number: GH-1440-1
• Motor (HP): 3 HP, 230V, 1Ph
• Number of Inch Threads: 32
• Number of Longitudinal and Cross Feed Rates: 40/40
• Number of Metric Threads: 32
• Number of Spindle Speeds: 16
• Overall Dimensions (L x W x H) (In.): 75.6” x 29.1” x 47”
• Prop 65: Cancer and Reproductive Harm
• Range of Cross Feeds (IPR): 0.0005”-0.0086”
• Range of Inch Threads (TPI): 4-56
• Range of Longitudinal Feeds (IPR): 0.0016” – 0.0257”
• Range of Metric Threads: 0.4-7mm
• Range of Spindle Speeds (RPM): 90-1800
• Size: 14 x 40
• Spindle Bore (In.): 2”
• Spindle Mount: D1-5
• Spindle Taper with Sleeve: MT-4
• Style (Type): Engine – Geared Head
• Swing Over Bed (In.): 14”
• Swing Over Cross Slide (In.): 8.7”
• Swing Through Gap (In.): 20.3”
• Warranty: 2 Years
• Width of Bed (In.): 8.1”
• Bed Height: 11.41”
• Center Height: 6.5”
• Cross Slide Travel: 6.7”
• Distance Between Centers: 40”
• Digital Readout (DRO): Yes
• Net weight (lbs): 1638
• Gross Weight (lbs): 1804

Specifications

• Manufacturer: JET
• SKU: JT1-3268
• UPC: 019907008996
• Shipping Method: LTL Freight
• Weight: 1,804 lb
• Dimensions: 77 × 34 × 63 in
• Country of Origin: China
• Warranty: 2 Years (Parts)
