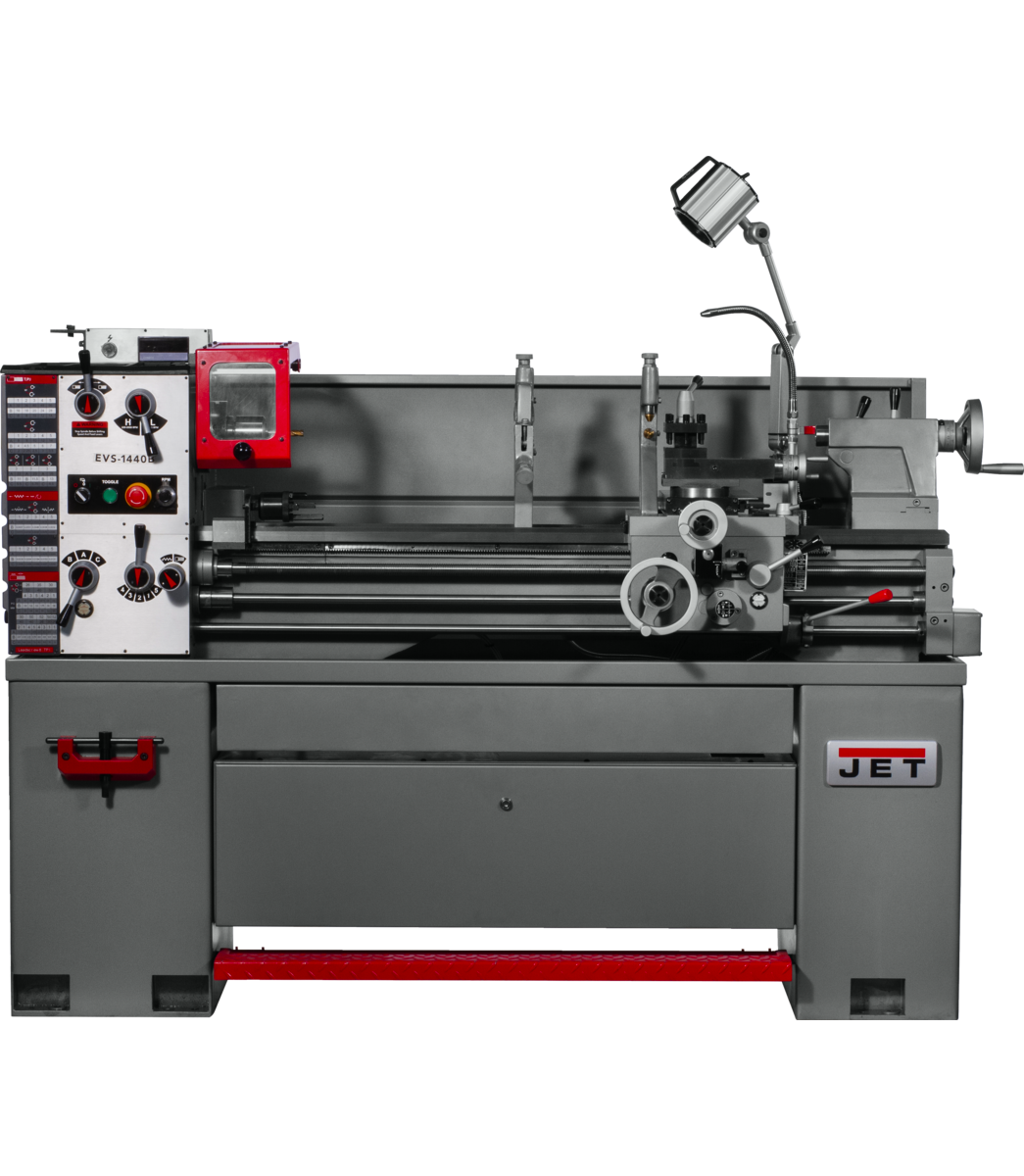

Jet EVS-1440 Electronic Variable Speed lathe with Newall DP700 DRO and Taper Attachment, 3HP 311450

Jet EVS-1440 Electronic Variable Speed lathe with Newall DP700 DRO and Taper Attachment, 3HP 311450 is a JET product in the Lathes collection.

Product Details

• Compound and cross slide have backlash elimination
• Electronic Chuck Key Docking Station
• Front Removable Chip Tray
• Full Length Splash Guard
• Independent lead screw and feed rod

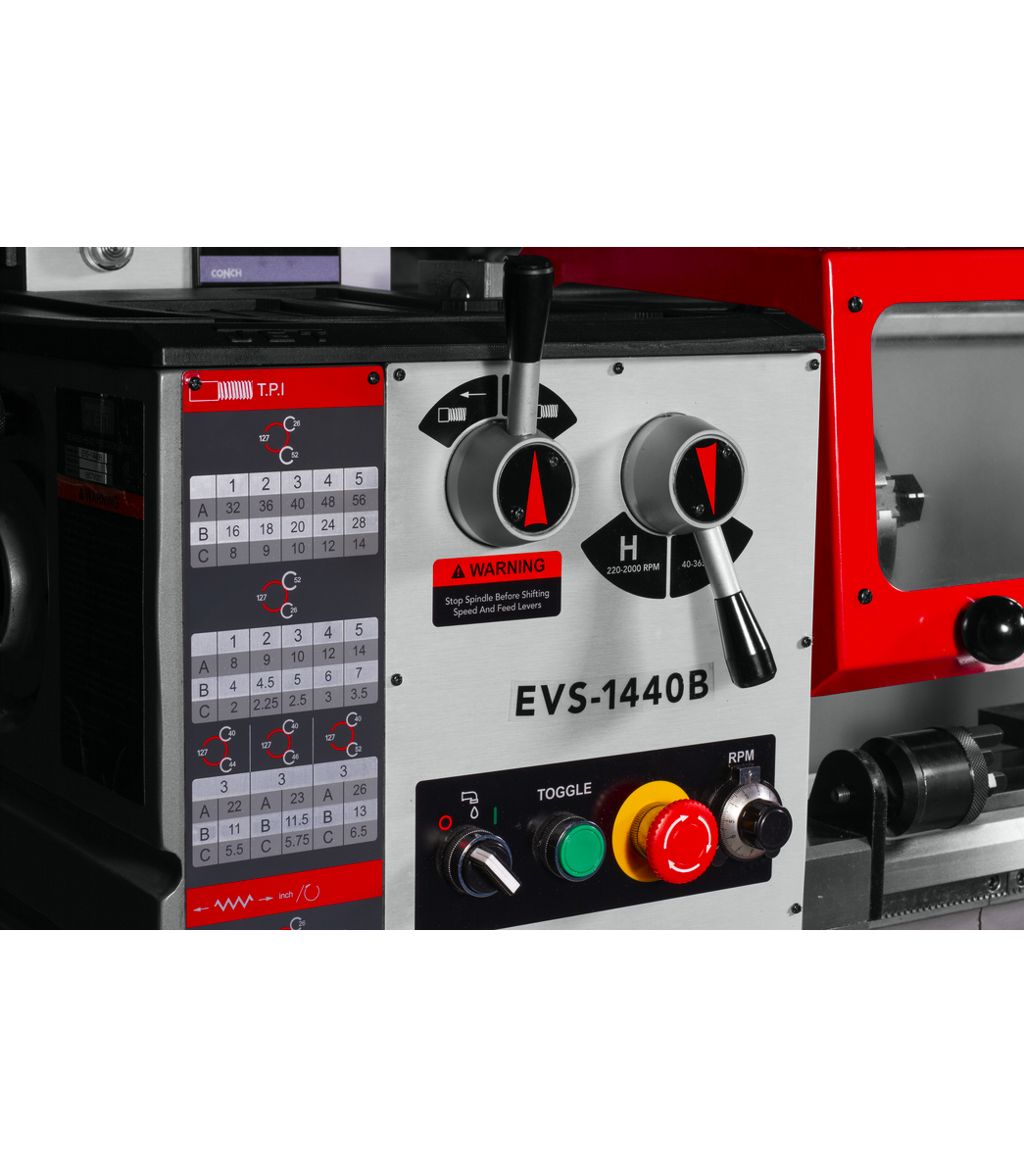

• The EVS-1440B is engineered to maximize your shop’s output. The D1 4 Spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004’’. The spindle also features an apron-mounted actuation control and jog button for easy gear engagement and spindle inching. The two-speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM, and at high speeds from 220 to 2,000 RPM. Additionally, the tailstock may be offset for turning taper. Meehanite castings retain their tolerance and remain rigid over many years of machining.
• Integrated locking tool storage cabinet in the stand
• LED RPM readout allows for precise turning speeds
• Safety on/off switch
• Treading Dial Indicator
• V-Way bed design is induction hardened and ground
• Specification: Value
• Swing Over Bed (In.): 14
• Swing Over Cross Slide (In.): 9-1/16
• Length of Gap (In.): 9-1/2
• Spindle Bore (In.): 1-1/2
• Spindle Mount: D1-4
• Spindle Taper with Sleeve: MT-5
• Range of Spindle Speeds (RPM): 40-2000
• Number of Longitudinal and Cross Feed Rates: 25
• Range of Longitudinal Feeds (IPR): 0.0016-0.0460
• Number of Inch Threads: 34
• Range of Inch Threads (TPI): 2-56
• Number of Metric Threads: 34
• Range of Metric Threads: 0.5-12
• Max Tool Size (In.): 3/4 x 3/4
• Compound Slide Travel (In.): 3-1/2
• Cross Slide Travel (In.): 7
• Motor (HP): 3HP, 230V, 3Ph
• Tailstock Spindle Travel (In.): 6-1/8
• Taper in Tailstock Spindle: MT-3
• Steady Rest Capacity (In.): 0.23-0.61 Copper Shaft ( Standard) 0.20-2.36 Bearing Roller(OP)
• Width of Bed (In.): 7.48
• Overall Dimensions (L x W x H) (In.): 68.5 x 28.3 x 50
• Net Weight (Lbs.): 1320
• Gross Weight (Lbs): 1584
• Height: 50.0000
• Length: 68.5000
• Weight: 1584.0000
• Width: 28.3000

Specifications

• Manufacturer: JET
• SKU: JT9-311450
• UPC: 731325792034
• Shipping Method: LTL Freight
• Weight: 1,584 lb
• Dimensions: 68.5 × 28.3 × 50 in
• Country of Origin: Taiwan
